Hydraulic Top Link (Cat.2/2) with Ball and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance and versatility in agricultural applications. This robust hydraulic top link features a minimum length of 637mm and a maximum length of 890mm, making it suitable for a wide range of tractor models.

Key Features:

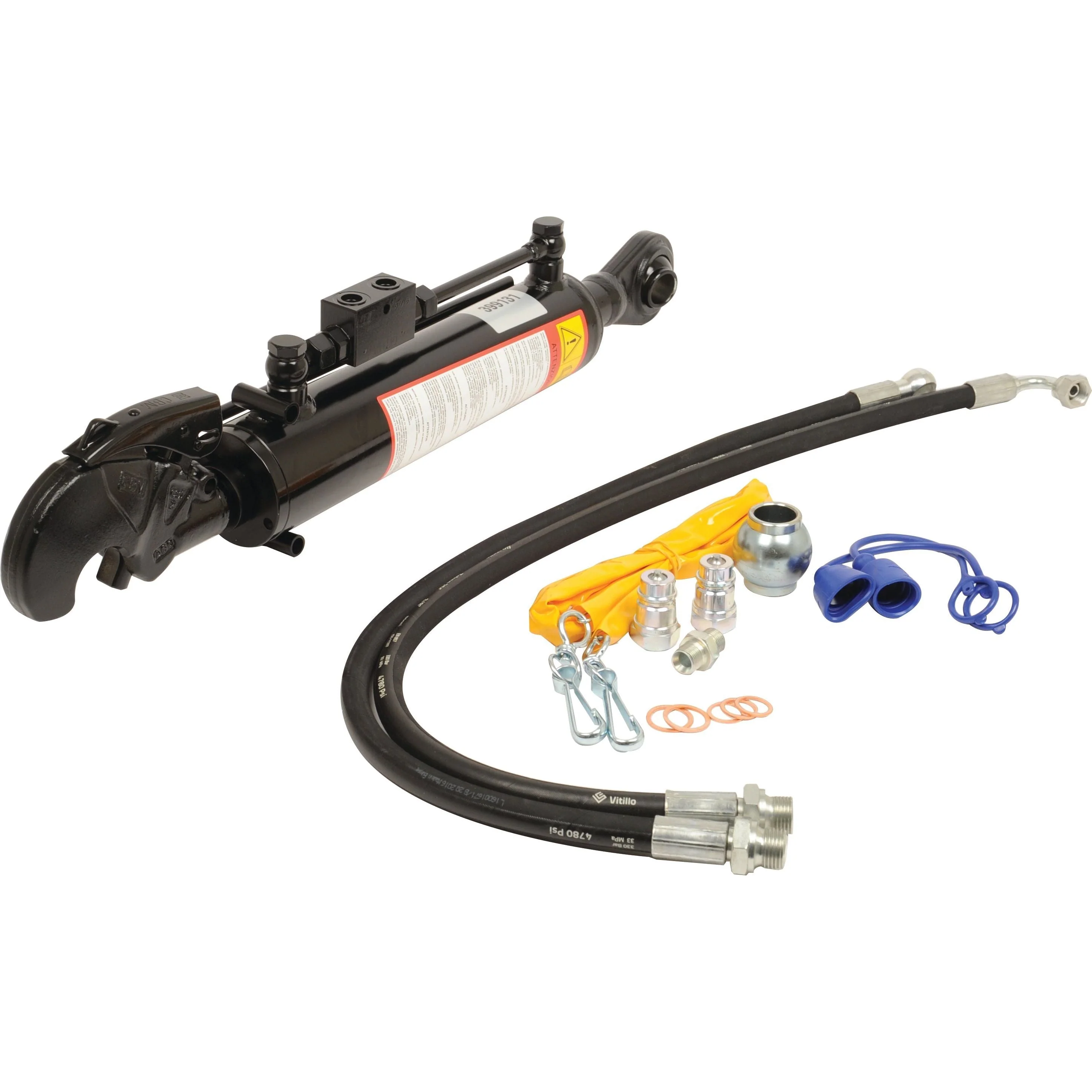

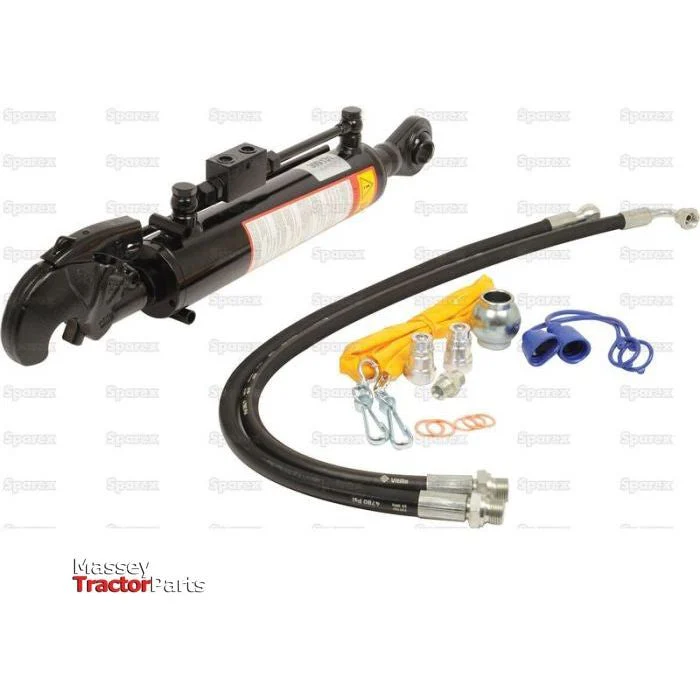

• Supplied with: Hose set, chain & ball, and a marker label (with CBM Hook).
• Cylinder Bore: 80mm
• Lift Capacity: 6930 kg @ 180 bar
• Thrust Capacity: 9240 kg @ 180 bar
• Rod Diameter: 40mm
• Check Valve Position: Top
• Tractor Compatibility: Suitable for tractors up to 180hp (135kW)

Product Specifications:

• A (mm): 125
• Alternative to: 56804
• Brand: Sparex
• Category Implement End: 2
• Category Tractor End: 2
• Category: 2/2
• Implement End: Q.R CBM Hook
• Maximum Length (mm): 890
• Minimum Length (mm): 637
• Related Products: 32255, 32950, 32977, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199
• Tariff Code: 8412212090
• Tractor End Fixing: S.32950
• Tractor End: Ball

Compatibility Information:

This hydraulic top link is not associated with any specific make or model, providing flexibility for various applications.

Manufacturer Information:

This product is not linked to any particular OEM part number, ensuring broad compatibility across different tractor brands.
