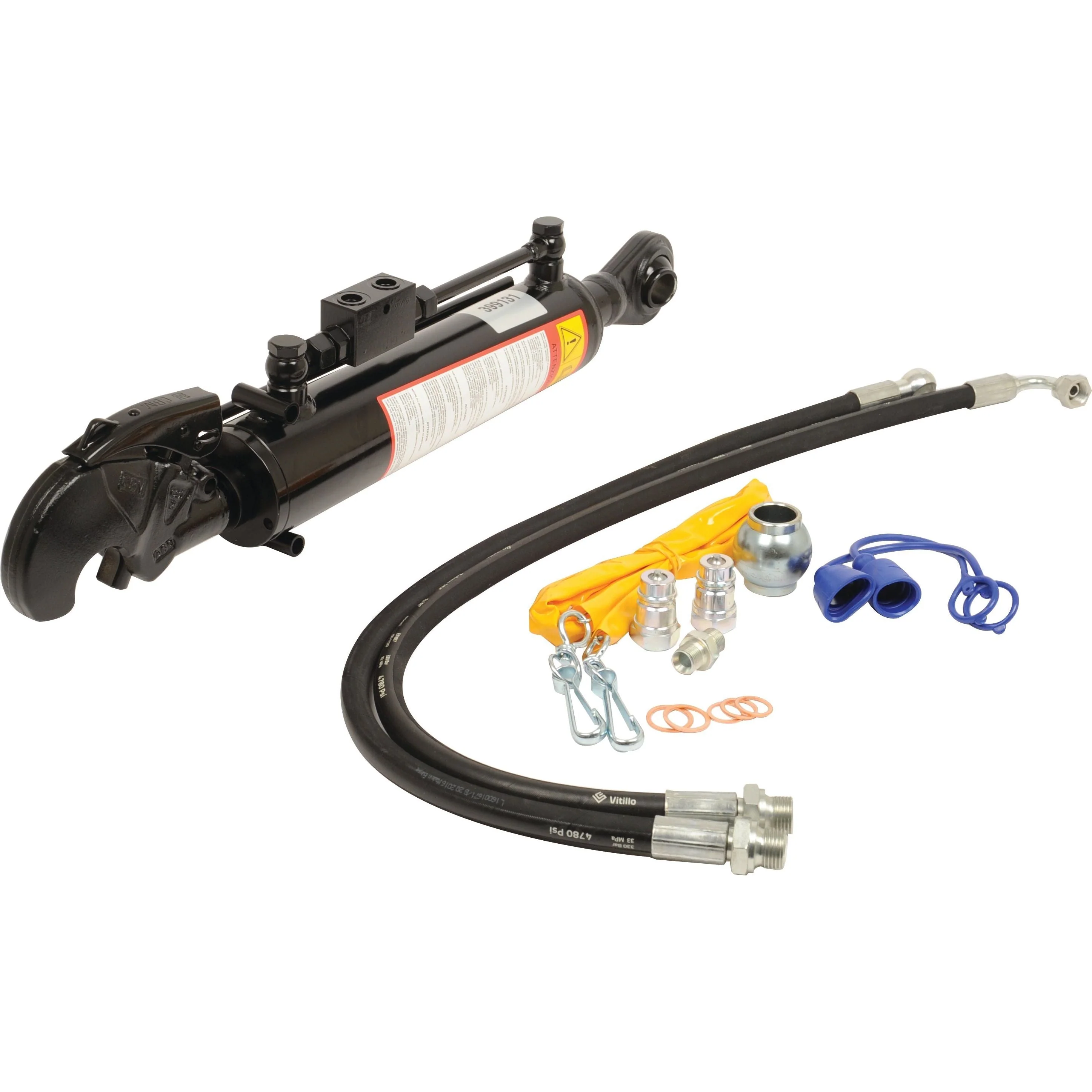

Hydraulic Top Link (Cat.2/2) with Ball and Q.R CBM Hook - Sparex Part No. S.331311

Enhance your tractor's performance with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this top link features a minimum length of 545mm and a maximum length of 734mm. It comes complete with a hose set, chain & ball, and a marker label equipped with a Q.R CBM Hook for easy attachment.

Product Specifications

• A (mm): 100
• Brand: Sparex
• Category Implement End: 2
• Category Tractor End: 2
• Category: 2/2
• Check Valve Position: Top
• Cylinder Bore (mm): 80
• Implement End: Q.R CBM Hook
• Lift Capacity @ 180 bar: 6930 kg
• Maximum Length (mm): 734
• Minimum Length (mm): 545
• Related Products: 32255, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199
• Rod Diameter (mm): 40
• Suitable for Tractors up to: 180hp (135kW)
• Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
• Tariff Code: 8412212090
• Thrust @ 180 bar: 9240 kg
• Tractor End Fixing: Ball End
• Tractor End: Ball

Compatibility Information

This hydraulic top link is designed for universal fitment and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring versatility across various applications.
