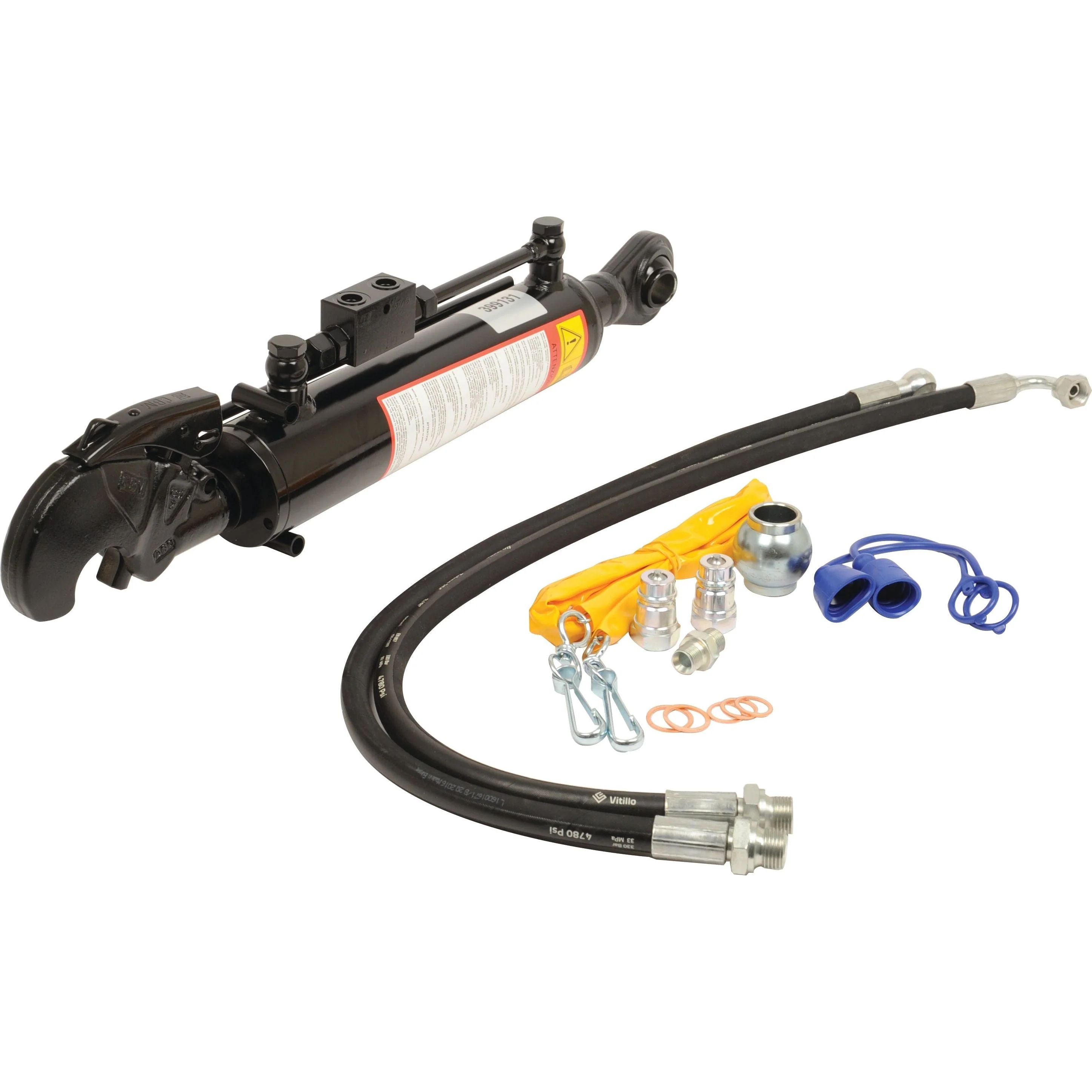

Introducing the Hydraulic Top Link (Cat.2/2) with a robust Cylinder Bore of 70mm. This essential agricultural component features a minimum length of 700mm and a maximum length of 1036mm, making it versatile for various applications. Each unit is supplied with a complete hose set, chain & ball, and a marker label equipped with a Q.R CBM Hook for easy attachment.

Product Specifications

• Alternative to: 331011
• Brand: Sparex
• Category Implement End: 2
• Category Tractor End: 2
• Category: 2/2
• Check Valve Position: Top
• Cylinder Bore (mm): 70
• Implement End: Q.R CBM Hook
• Lift Capacity (kgs @ 180 bar): 5310
• Maximum Length (mm): 1036
• Minimum Length (mm): 700
• Related Products: 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199, 164591
• Rod Diameter (mm): 35
• Suitable for Tractors up to: 150hp (110kW)
• Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 7080
• Tractor End Fixing: Ball End
• Tractor End: Ball

Suitable For Information

This hydraulic top link is compatible with a range of tractor models, including:

• Case IH / International Harvester: FARMALL 105A, FARMALL 115A, FARMALL 65A, FARMALL 75A, FARMALL 85A, FARMALL 95A, FARMALL JX100, FARMALL JX110, FARMALL JX75, JX60, JX70
• Ford / New Holland: TD5.100, TD5.105, TD5.110, TD5.115, TD5.65, TD5.75, TD5.80, TD5.85, TD5.90, TD5.95, TD5010, TD5020, TD5030, TD5040, TD5050, TD55D, TD60D, TD65D, TD70D, TD75D, TD80D, TD85D, TD90D, TD95D
• Kubota: M110GX, M135GX
• Landini: MYTHOS 100, MYTHOS 105, MYTHOS 110, MYTHOS 115, MYTHOS 90

Manufacture Information

Part Number: Ford / New Holland 84301987
