Hydraulic Top Link (Cat.2/2) with Ball and Q.R CBM Hook

Product Title: Hydraulic Top Link (Cat.2/2) Ball and Q.R CBM Hook, Cylinder Bore: 70mm, Min. Length: 620mm | Sparex Part No. S.399131

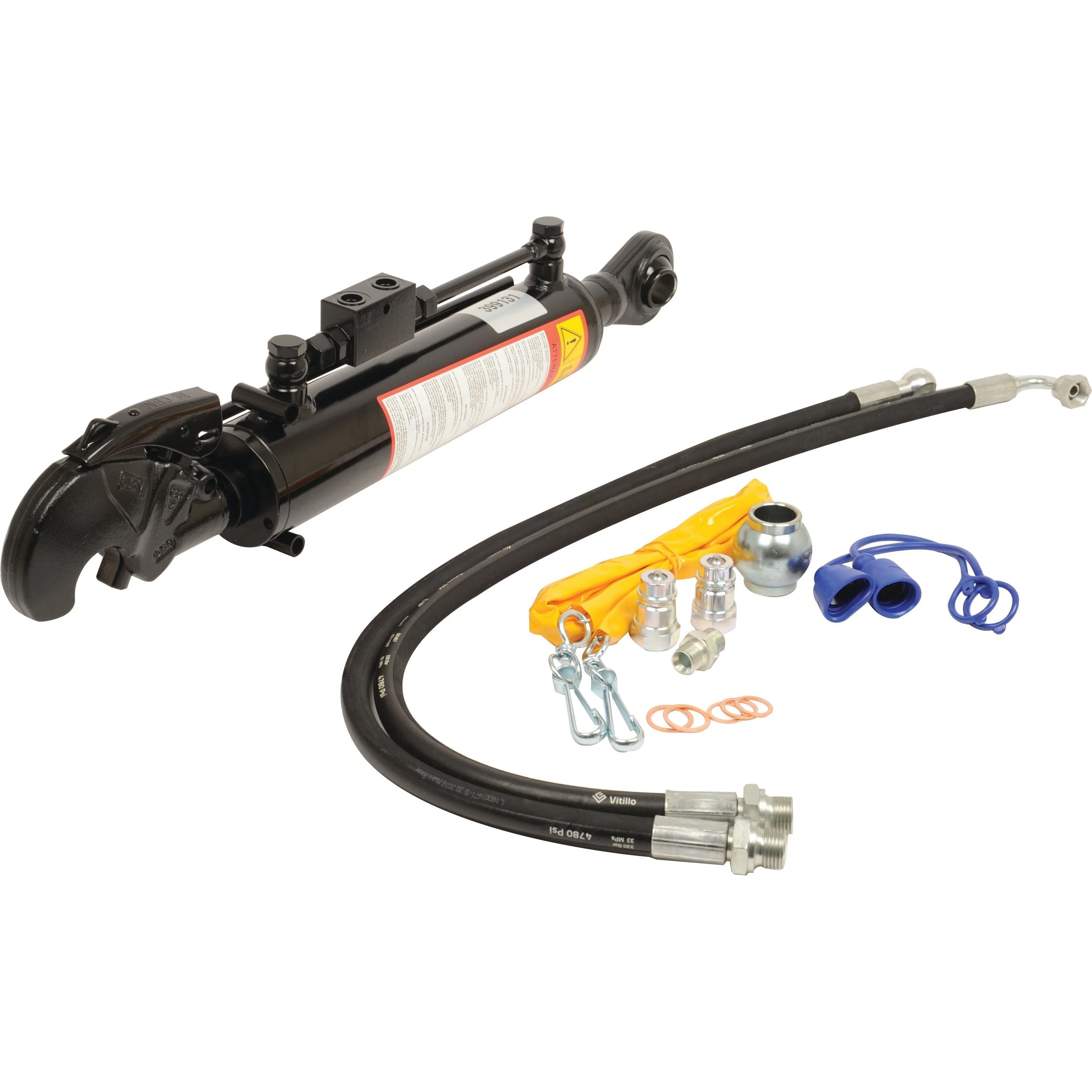

Product Description: This high-quality hydraulic top link is designed for optimal performance in agricultural applications. With a minimum length of 620mm and a maximum length of 881mm, it is versatile enough to meet various operational needs. The product comes complete with a hose set, chain & ball, and a marker label featuring a CBM hook for easy identification and installation.

Product Specifications

• A (mm): 120
• Alternative to: 331281
• Brand: Sparex
• Category Implement End: 2
• Category Tractor End: 2
• Category: 2/2
• Check Valve Position: Top
• Cylinder Bore (mm): 70
• Implement End: Q.R CBM Hook
• Lift Capacity (kgs @ 180 bar): 5300
• Maximum Length (mm): 881
• Minimum Length (mm): 620
• Related Products: 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199, 164591
• Rod Diameter (mm): 35
• Suitable for Tractors up to: 150hp (110kW)
• Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 7080
• Tractor End Fixing: Ball End
• Tractor End: Ball

Suitable For Information

This hydraulic top link is compatible with a wide range of tractor models, including:

• Case IH / International Harvester: 5120, 5130, 5140, 5150, CS105 PRO, CS85 PRO, CS95 PRO, FARMALL 105U, FARMALL 115U, FARMALL 95U, JX105U, JX85U, JX95U, LUXXUM 100, LUXXUM 110, LUXXUM 120
• Claas: AXOS 310, AXOS 320, AXOS 330, AXOS 340, CELTIS 426, CELTIS 436, CELTIS 446, CELTIS 456
• Deutz-Fahr: 5105, 5115, 5125, AGROTRON K 100, AGROTRON K 110, AGROTRON K 120, AGROTRON K 90
• Fendt: 310 VARIO, 311 VARIO, FARMER 303, FARMER 304, FARMER 305, FARMER 306, FARMER 307, FARMER 308, FARMER 309, FARMER 310, FARMER 311, FARMER 312
• Fiat: 70-66, 80-66, 82-66, L60, L65, L75, L85, L95
• Ford / New Holland: T4.100F, T5.100, T5.105, T5.110, T5.115, T5.120, T5.130, T5.140
• Kubota: M5071N, M5091, M5101N, M5111
• Lamborghini: 1040, 1050, 1060, 1100, 1300
• Landini: BLIZZARD 50, POWERFARM 100
• Massey Ferguson: 4435, 4445, 4455, 4707, 4708, 4709
• McCormick: C100, C110, CX70 L
• Same: ANTARES 100, SILVER 100
• Steyr: 4055S KOMPAKT, 4065 KOMPAKT
• Valmet & Valtra: 6000, 6100, 6200

Manufacturer Information

This hydraulic top link is manufactured by:

• Fendt: G716870050021
• Massey Ferguson: 4364607M2, 4305980M92, 4311029M1
• Valmet & Valtra: 4305980M91, 4312424M92
