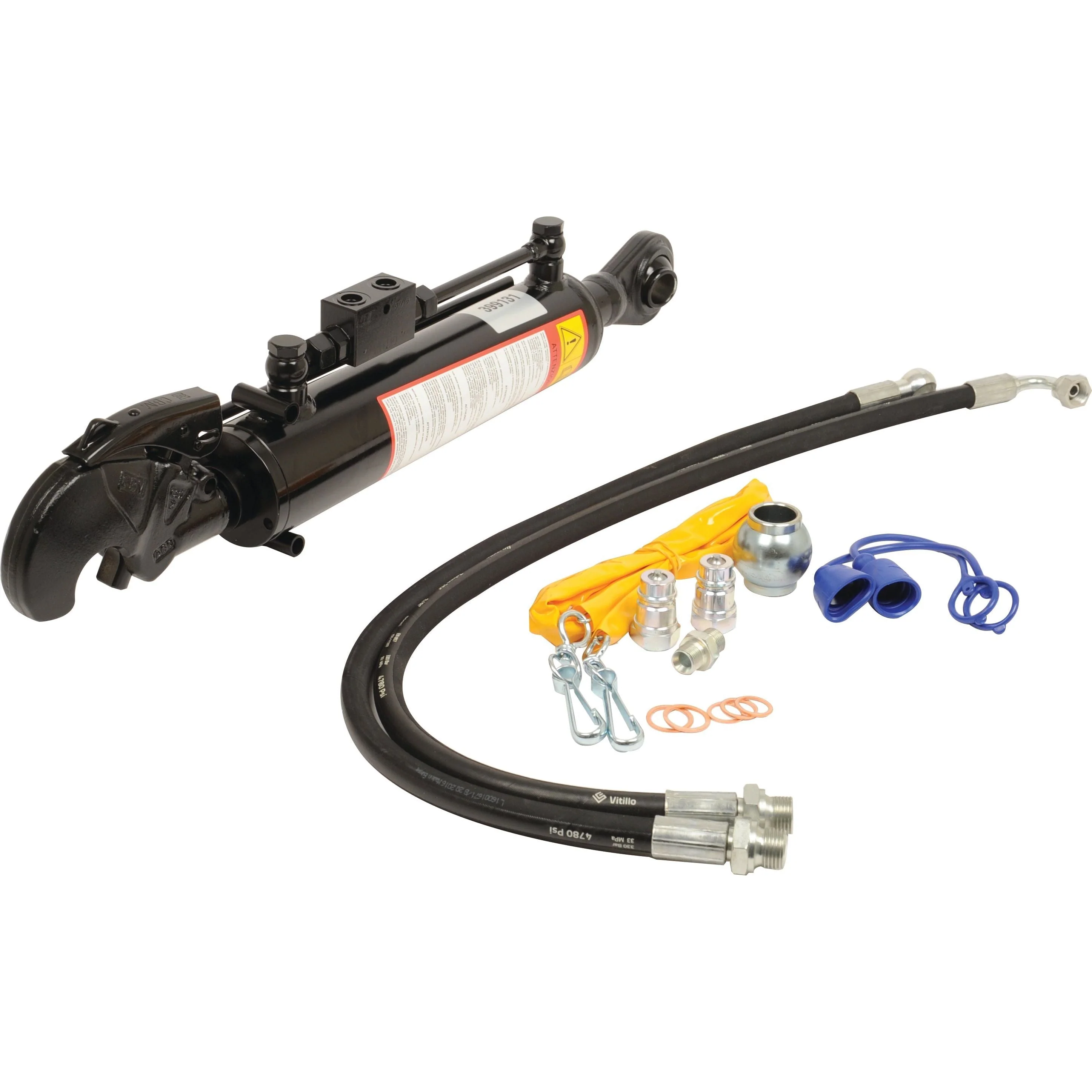

Hydraulic Top Link (Cat.2/2) with Ball and Q.R CBM Hook - Sparex Part No. S.399831

Enhance your tractor's performance with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this top link features a minimum length of 655mm and a maximum length of 964mm. It comes complete with a hose set, chain & ball, and a marker label equipped with a Q.R CBM Hook for easy attachment.

Product Specifications

• A (mm): 100
• Brand: Sparex
• Category Implement End: 2
• Category Tractor End: 2
• Category: 2/2
• Check Valve Position: Top
• Cylinder Bore (mm): 63
• Implement End: Q.R CBM Hook
• Lift Capacity (kgs @ 180 bar): 3960
• Maximum Length (mm): 964
• Minimum Length (mm): 655
• Related Products: 32253, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199
• Rod Diameter (mm): 35
• Suitable for Tractors up to: 100hp (74kW)
• Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 5730
• Tractor End Fixing: Ball End
• Tractor End: Ball

Suitable For

This hydraulic top link is compatible with Fiat models: 1000, 680, 880, and 980.

Manufacturer Information

Please note that this product is not associated with any specific OEM part number.
