Hydraulic Top Link (Cat.2/2) with Ball and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance and versatility in agricultural applications. This robust hydraulic top link features a minimum length of 585mm and a maximum length of 859mm, making it suitable for a variety of tractor models.

Key Features:

• Brand: Sparex
• Category: 2/2
• Cylinder Bore: 63mm
• Lift Capacity: 3960 kg @ 180 bar
• Thrust Capacity: 5730 kg @ 180 bar
• Rod Diameter: 35mm
• Check Valve Position: Side
• Tractor End Fixing: Ball End
• Implement End: Q.R CBM Hook
• Suitable for Tractors up to: 100hp (74kW)

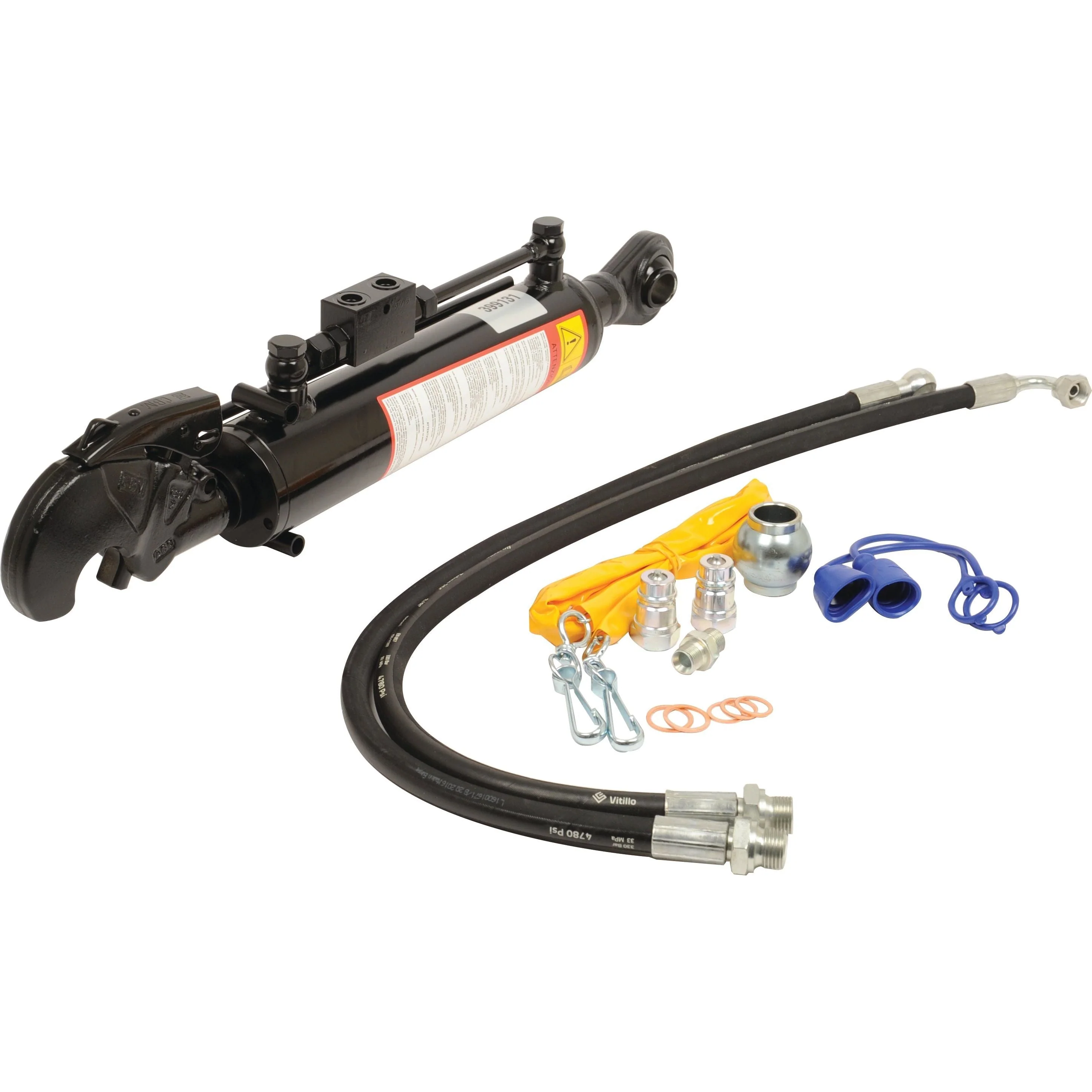

• Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
• Tariff Code: 8412212090

Dimensions:

• Minimum Length: 585mm
• Maximum Length: 859mm
• A (mm): 65

Compatibility:

This hydraulic top link is designed for universal fitment and is not associated with any specific make or model. It is ideal for enhancing the functionality of your tractor.

Related Products:

Explore additional compatible products: 32253, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199.

Upgrade your tractor's capabilities with the Hydraulic Top Link (Cat.2/2) from Sparex, ensuring reliable performance and ease of use in all your agricultural tasks.
