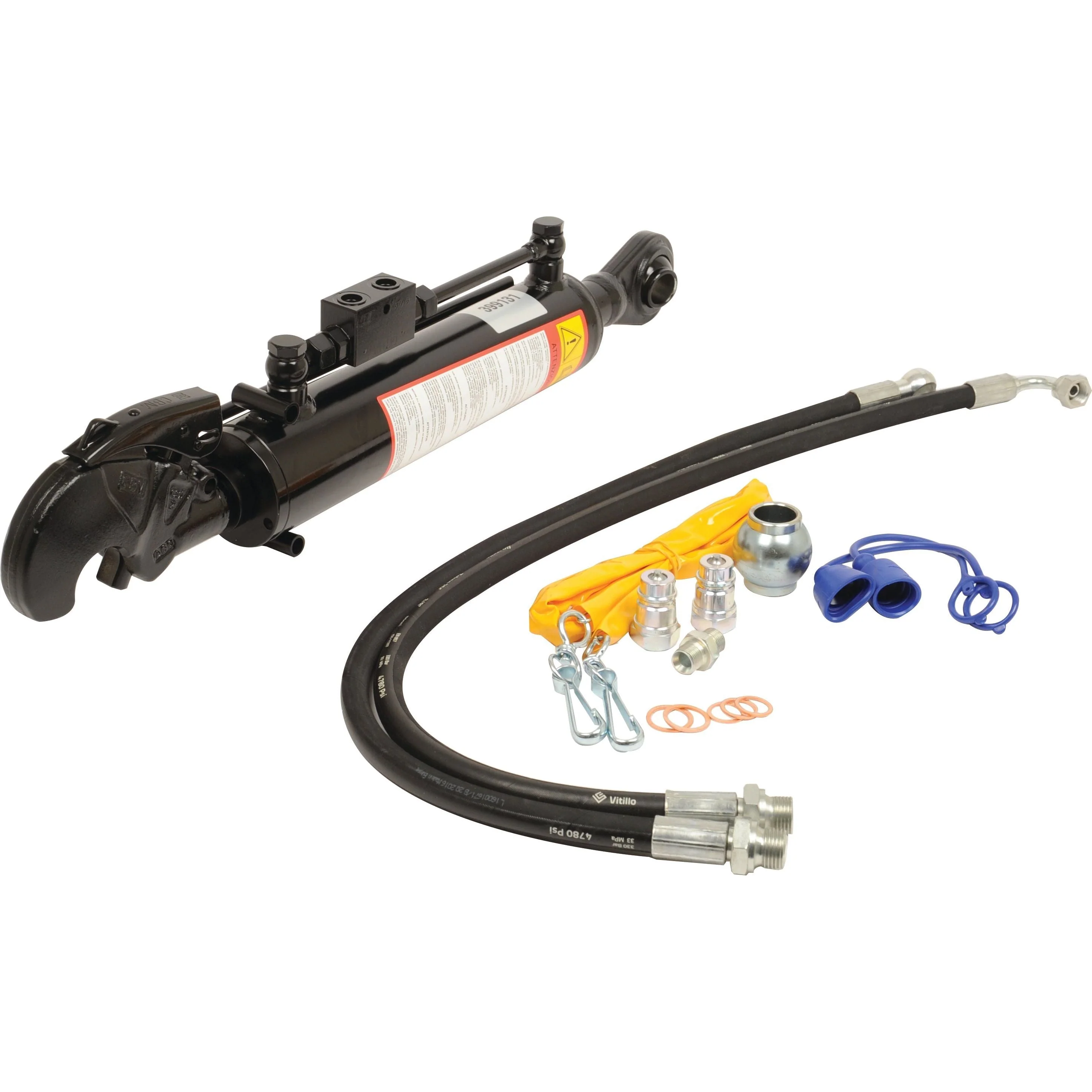

Hydraulic Top Link (Cat.2/2) with Ball and Q.R CBM Hook - Sparex Part No. S.331591

Enhance your agricultural machinery with the Hydraulic Top Link from Sparex. Designed for optimal performance, this top link features a minimum length of 450mm and a maximum length of 589mm. It comes complete with a hose set, chain & ball, and a marker label equipped with a CBM hook for easy installation and use.

Product Specifications

• A (mm): 65
• Brand: Sparex
• Category Implement End: 2
• Category Tractor End: 2
• Category: 2/2
• Check Valve Position: Side
• Cylinder Bore (mm): 63
• Implement End: Q.R CBM Hook
• Lift Capacity (kgs @ 180 bar): 3960
• Maximum Length (mm): 589
• Minimum Length (mm): 450
• Related Products: 32253, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199
• Rod Diameter (mm): 35
• Suitable for Tractors up to: 100hp (74kW)
• Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 5730
• Tractor End Fixing: Ball End
• Tractor End: Ball

Suitable For

This hydraulic top link is compatible with the following models: Same FRUTTETO II 60, 75, 85, and 90.

Manufacturer Information

Please note that this product is not associated with any specific OEM part number, ensuring versatility and compatibility across various applications.
