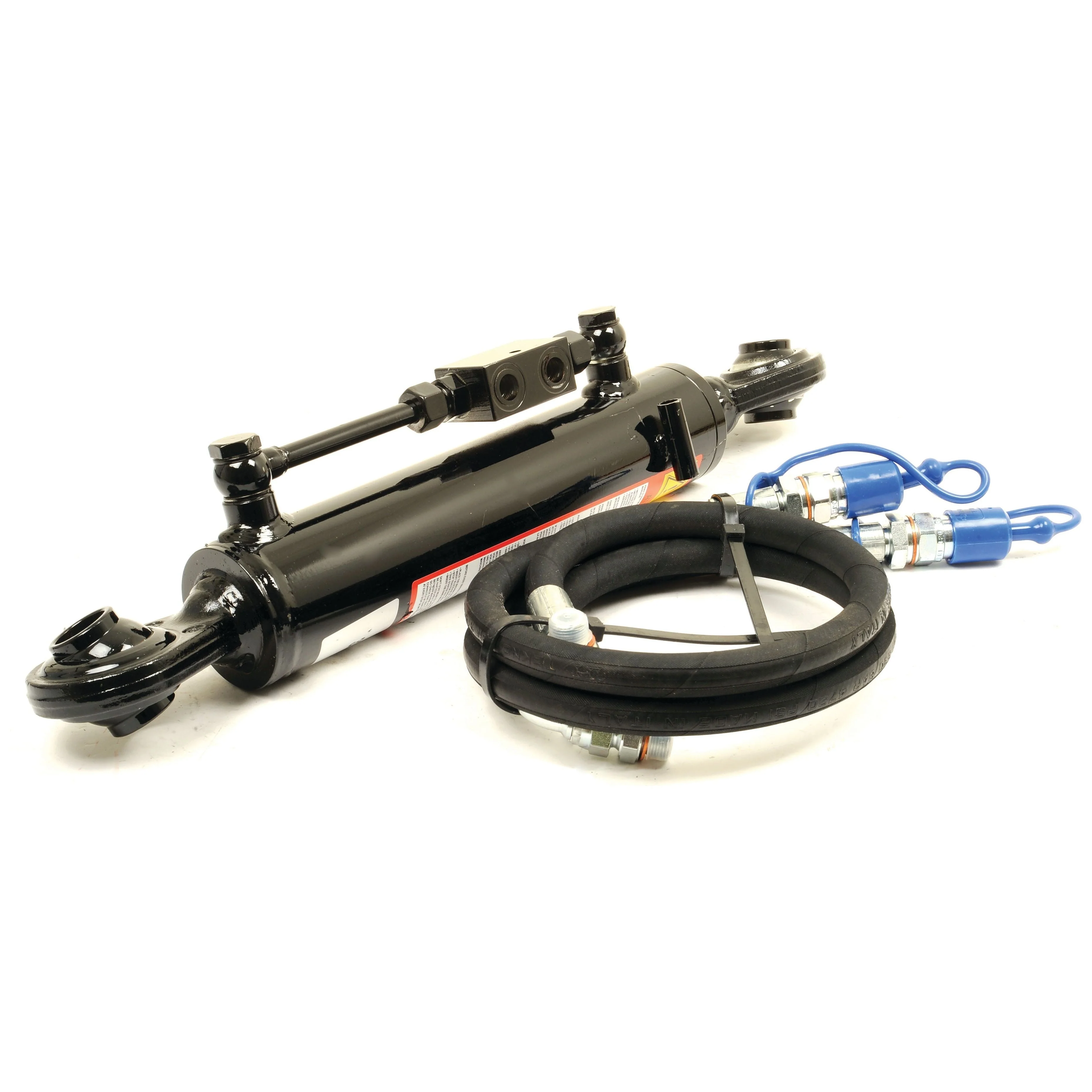

Hydraulic Top Link (Cat.2/2) Ball and Ball, Cylinder Bore: 80mm | Sparex Part No. S.331281

Enhance your agricultural machinery with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this top link features a minimum length of 620mm and a maximum length of 916mm. It comes complete with a hose set for easy installation and immediate use.

Product Specifications

• A (mm): 100
• Alternative to: 399131
• Brand: Sparex
• Category Implement End: 2
• Category Tractor End: 2
• Category: 2/2
• Check Valve Position: Top
• Cylinder Bore (mm): 80
• Implement End: Ball
• Lift Capacity (kgs @ 180 bar): 6930
• Maximum Length (mm): 916
• Minimum Length (mm): 620
• Related Products: 32255, 33137, 33144, 33158, 39965, 39966, 39967, 39968
• Rod Diameter (mm): 40
• Suitable for Tractors up to: 180hp (135kW)
• Supplied with: Hose Set
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 9240
• Tractor End Fixing: Fixed
• Tractor End: Ball

Compatible Tractors

This hydraulic top link is suitable for a variety of tractor models, including:

• Case IH / International Harvester: 5120, 5130, 5140, 5150
• Claas: ATOS 220, ATOS 230, ATOS 240, ATOS 330, ATOS 340, ATOS 350, AXOS 310, AXOS 320, AXOS 330, AXOS 340, CELTIS 426, CELTIS 436, CELTIS 446, CELTIS 456
• Deutz-Fahr: 5105, 5115, 5125, AGROTRON K 100, AGROTRON K 110, AGROTRON K 120, AGROTRON K 90
• Fendt: 310 VARIO, 311 VARIO, 312 VARIO, 313 VARIO, FARMER 303-312
• Ford / New Holland: T4.100F, T5.105, T5.115, T5030-T5070
• Kubota: M5071N, M5091, M5101N, M5111
• Lamborghini: 1040, 1050, 1060, 1100, 1300
• Landini: BLIZZARD 50-95, LARGE 10000-19000
• Massey Ferguson: 5410-5713 M
• McCormick: C100-C90
• Same: ANTARES 100-110, SILVER 80-95
• Steyr: 4055S KOMPAKT-4115 KOMPAKT
• Valmet & Valtra: 6000-6900, A104-A94

Manufacturer Information

This product is not associated with any particular OEM part number, ensuring compatibility across a wide range of machinery.
