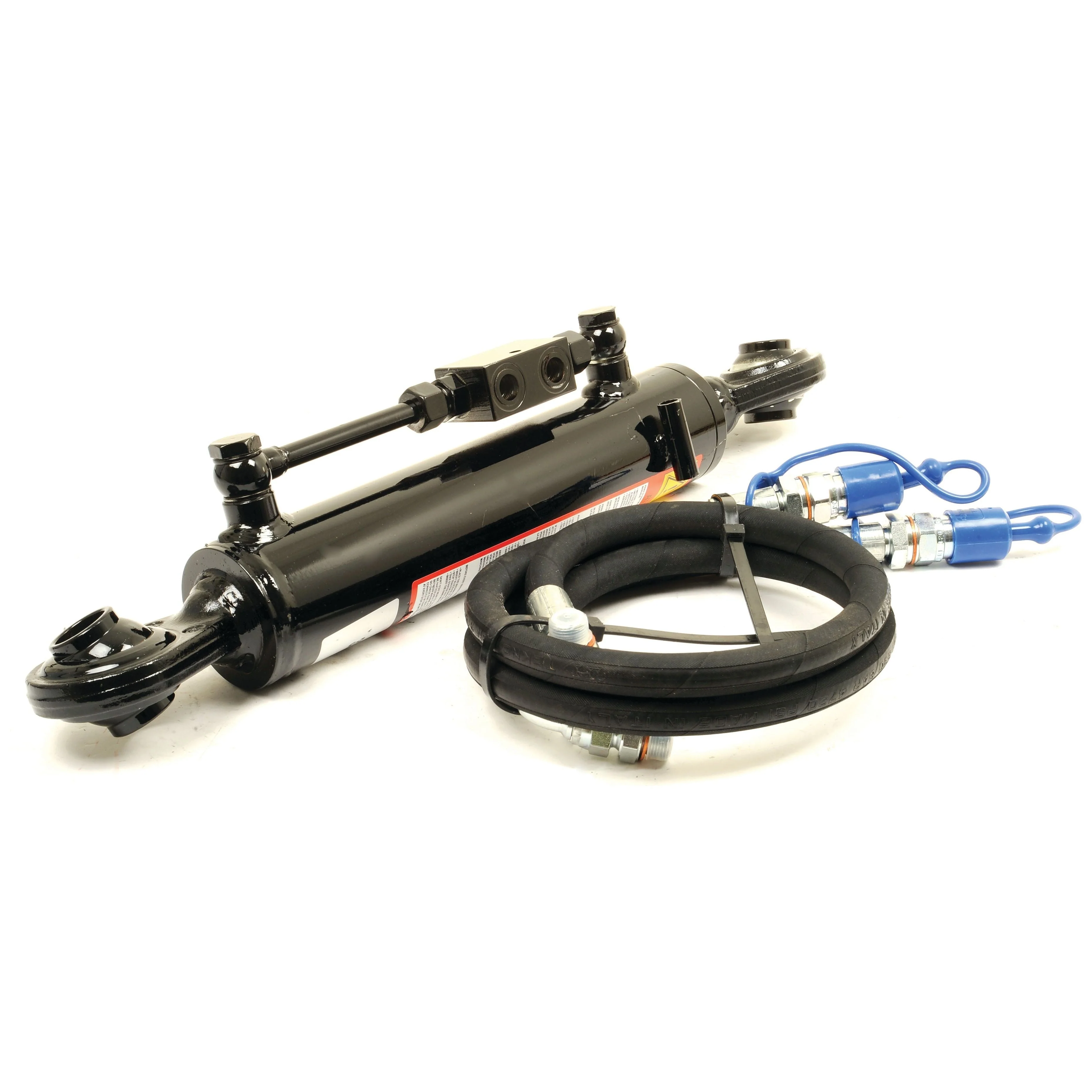

Hydraulic Top Link (Cat.2/2) Ball and Ball, Cylinder Bore: 70mm | Sparex Part No. S.331011

Enhance your tractor's performance with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this top link features a minimum length of 700mm and a maximum length of 1093mm. It comes complete with a Hose Set for easy installation and immediate use.

Product Specifications

• Alternative to: 331001
• Brand: Sparex
• Category Implement End: 2
• Category Tractor End: 2
• Category: 2/2
• Check Valve Position: Top
• Cylinder Bore: 70mm
• Implement End: Ball
• Lift Capacity @ 180 bar: 5310 kg
• Maximum Length: 1093mm
• Minimum Length: 700mm
• Related Products: 33137, 33144, 33158, 39965, 39966, 39967, 39968, 164591
• Rod Diameter: 35mm
• Suitable for Tractors up to: 150hp (110kW)
• Supplied with: Hose Set
• Tariff Code: 8412212090
• Thrust @ 180 bar: 7080 kg
• Tractor End Fixing: Ball End
• Tractor End: Ball

Compatibility Information

This hydraulic top link is compatible with a variety of tractor models:

• Case IH / International Harvester: FARMALL 105A, FARMALL 115A, FARMALL 65A, FARMALL 75A, FARMALL 85A, FARMALL 95A, FARMALL JX100, FARMALL JX110, FARMALL JX75, JX60, JX70
• Ford / New Holland: TD5.100, TD5.105, TD5.110, TD5.115, TD5.65, TD5.75, TD5.80, TD5.85, TD5.90, TD5.95, TD5010, TD5020, TD5030, TD5040, TD5050, TD55D, TD60D, TD65D, TD70D, TD75D, TD80D, TD85D, TD90D, TD95D
• Kubota: M110GX, M135GX
• Landini: MYTHOS 100, MYTHOS 105, MYTHOS 110, MYTHOS 115, MYTHOS 90

Manufacturer Information

Part Number: Ford / New Holland 5095817
