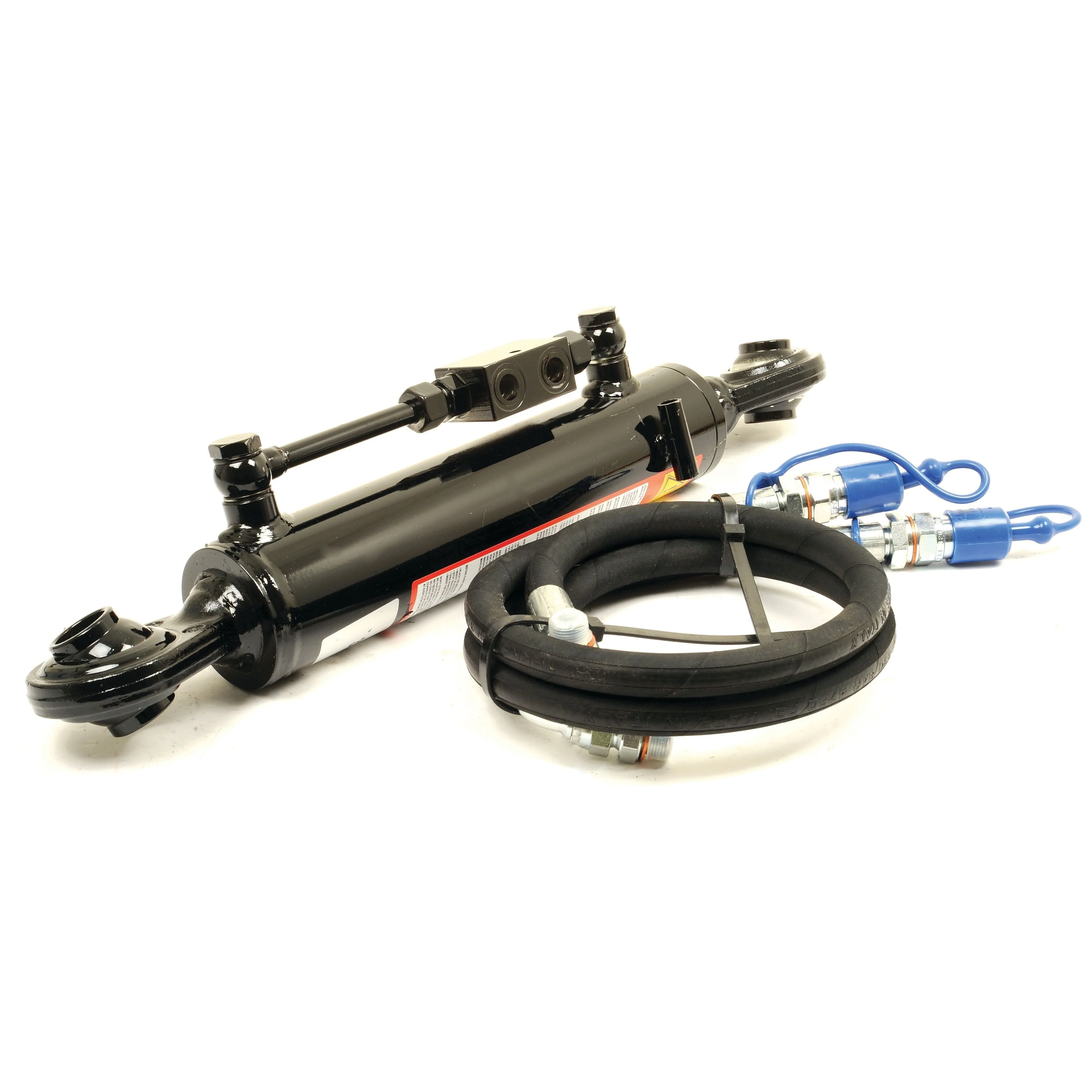

Hydraulic Top Link (Cat.2/2) Ball and Ball, Cylinder Bore: 63mm | Sparex Part No. S.331261

Enhance your tractor's performance with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this top link features a minimum length of 620mm and a maximum length of 931mm. It comes complete with a hose set for easy installation and immediate use.

Product Specifications

• A (mm): 100
• Brand: Sparex
• Category Implement End: 2
• Category Tractor End: 2
• Category: 2/2
• Check Valve Position: Top
• Cylinder Bore (mm): 63
• Implement End: Ball
• Lift Capacity (kgs @ 180 bar): 3960
• Maximum Length (mm): 931
• Minimum Length (mm): 620
• Related Products: 32253, 33137, 33144, 33158, 39965, 39966, 39967, 39968
• Rod Ø (mm): 35
• Suitable for Tractors up to: 100hp (74kW)
• Supplied with: Hose Set
• Tariff Code: 8413910090
• Thrust (kgs @ 180 bar): 5730
• Tractor End Fixing: Fixed
• Tractor End: Ball

Compatibility Information

This hydraulic top link is compatible with a variety of tractor models, including:

• Case IH / International Harvester: CS105 PRO, CS85 PRO, CS95 PRO, FARMALL 105U, FARMALL 115U, FARMALL 95U, JX105U, JX85U, JX95U, LUXXUM 100, LUXXUM 110, LUXXUM 120
• Fiat: 70-66, 70-66DT, 70-66S, 70-66SDT, 80-66, 80-66DT, 80-66S, 80-66SDT, 82-66, L60, L65, L75, L85, L95
• Ford / New Holland: T4.100F, T4.100LP, T4.105F, T4.105LP, T4.110F, T4.110LP, T4.115F, T4.75F, T4.75LP, T4.80F, T4.80LP, T4.85F, T4.85LP, T4.90F, T4.90LP, T4.95F, T4.95LP, T5.105, T5.115, T5.95
• Landini: POWERFARM 100, POWERFARM 105, POWERFARM 110, POWERFARM 60, POWERFARM 75, POWERFARM 80, POWERFARM 85, POWERFARM 90, POWERFARM 95
• Massey Ferguson: 4435, 4445, 4455, 4707, 4708, 4708 M, 4709, 4709 M, 4710 M
• McCormick: CX65 L, CX70 L, CX75 L, CX80 L, CX85 L
• Steyr: 4095 MULTI, 4095 MULTI - ECOTECH, 4100 MULTI, 4105 MULTI, 4105 MULTI - ECOTECH, 4110 MULTI, 4115 MULTI, 4115 MULTI - ECOTECH, 4120 MULTI
• Valmet & Valtra: A105, A115, A125, A135, A75, A85, A95

Manufacturer Information

OEM fitment for:

• Massey Ferguson: 4305979M92, 4311029M1, 4364607M2
• Valmet & Valtra: 4312426M92, 4305979M91

Upgrade your tractor's capabilities with the reliable and robust Hydraulic Top Link from Sparex, designed to meet the demands of modern farming.
