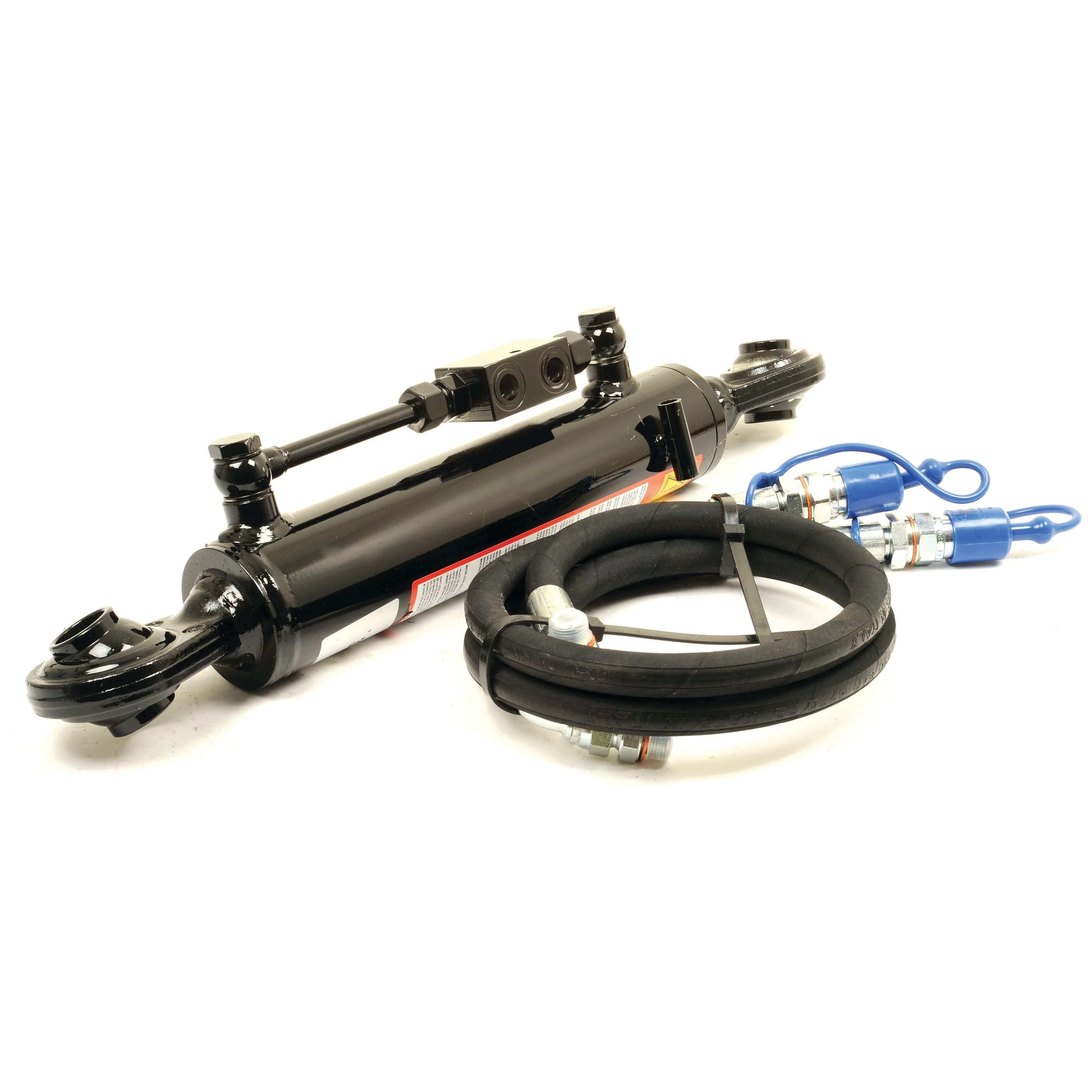

Hydraulic Top Link (Cat.2/2) Ball and Ball, Cylinder Bore: 63mm | Sparex Part No.S.331481

Enhance your tractor's performance with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this top link features a minimum length of 535mm and a maximum length of 761mm. It comes complete with a hose set for easy installation and immediate use.

Product Specifications

• A (mm): 100
• Brand: Sparex
• Category Implement End: 2
• Category Tractor End: 2
• Category: 2/2
• Check Valve Position: Top
• Cylinder Bore (mm): 63
• Implement End: Ball
• Lift Capacity (kgs @ 180 bar): 3960
• Maximum Length (mm): 761
• Minimum Length (mm): 535
• Related Products: 32253, 33137, 33144, 33158, 39965, 39966, 39967, 39968
• Rod Ø (mm): 35
• Suitable for Tractors up to: 100hp (74kW)
• Supplied with: Hose Set
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 5730
• Tractor End Fixing: Fixed
• Tractor End: Ball

Compatible Tractors

This hydraulic top link is suitable for a variety of tractor models, including:

• Claas: NECTIS 217 F, NECTIS 217 VE, NECTIS 217 VL, NECTIS 227 F, NECTIS 227 VE, NECTIS 227 VL, NECTIS 237 F, NECTIS 237 VE, NECTIS 237 VL, NECTIS 247 F, NECTIS 247 VE, NECTIS 247 VL, NECTIS 257 F, NECTIS 257 VE, NECTIS 257 VL, NECTIS 267 F, NECTIS 267 VE, NECTIS 267 VL, NEXOS 210 F, NEXOS 210 VE, NEXOS 210 VL, NEXOS 220 F, NEXOS 220 VE, NEXOS 220 VL, NEXOS 230 F, NEXOS 230 VE, NEXOS 230 VL, NEXOS 240 F, NEXOS 240 VE, NEXOS 240 VL, NEXOS 250 F, NEXOS 250 VL
• Deutz-Fahr: AGROPLUS 60, AGROPLUS 67, AGROPLUS 70, AGROPLUS 77, AGROPLUS 80
• John Deere: 1040, 1140, 1640, 2040, 2140, 3040, 5045E, 5050E, 5055E, 5065E, 5075E, 5076E, 5078E, 5080G, 5080GF, 5080GV, 5082E, 5083E, 5085E, 5090E, 5090G, 5090GF, 5090GV, 5093E, 5100E, 5100GF, 5100GV, 5101E, 5103E, 5215, 5215V, 5300, 5310, 5315, 5315V, 5400, 5410, 5500, 5510, 5515, 5515V, 5615, 5615F, 5615V, 5620, 5720, 5820, 6090MC, 6090RC, 6100, 6100MC, 6100RC, 6110, 6110MC, 6110RC, 6200, 6210, 6230, 6300, 6310, 940
• Massey Ferguson: 3425, 3435, 3445, 3455
• McCormick: V60, V65, V70, V75, V80, V85, V90

Manufacturer Information

This product is not associated with any particular OEM part number, ensuring compatibility across various models and brands.
