Hydraulic Top Link (Cat.1/2) with Ball and Q.R CBM Hook - Sparex Part No. S.331071

Enhance your tractor's performance with the Hydraulic Top Link from Sparex, designed for durability and efficiency. This top link features a minimum length of 550mm and a maximum length of 760mm, making it versatile for various applications. It comes complete with a hose set, chain & ball, and a marker label equipped with a CBM Hook for easy installation and use.

Product Specifications

• Alternative to: 331081
• Brand: Sparex
• Category Implement End: 2
• Category Tractor End: 1
• Category: 1/2
• Check Valve Position: Side
• Cylinder Bore: 70mm
• Implement End: Q.R CBM Hook
• Lift Capacity @ 180 bar: 5310 kg
• Maximum Length: 760mm
• Minimum Length: 550mm
• Related Products: 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199, 164591
• Rod Diameter: 35mm
• Suitable for Tractors up to: 150hp (110kW)

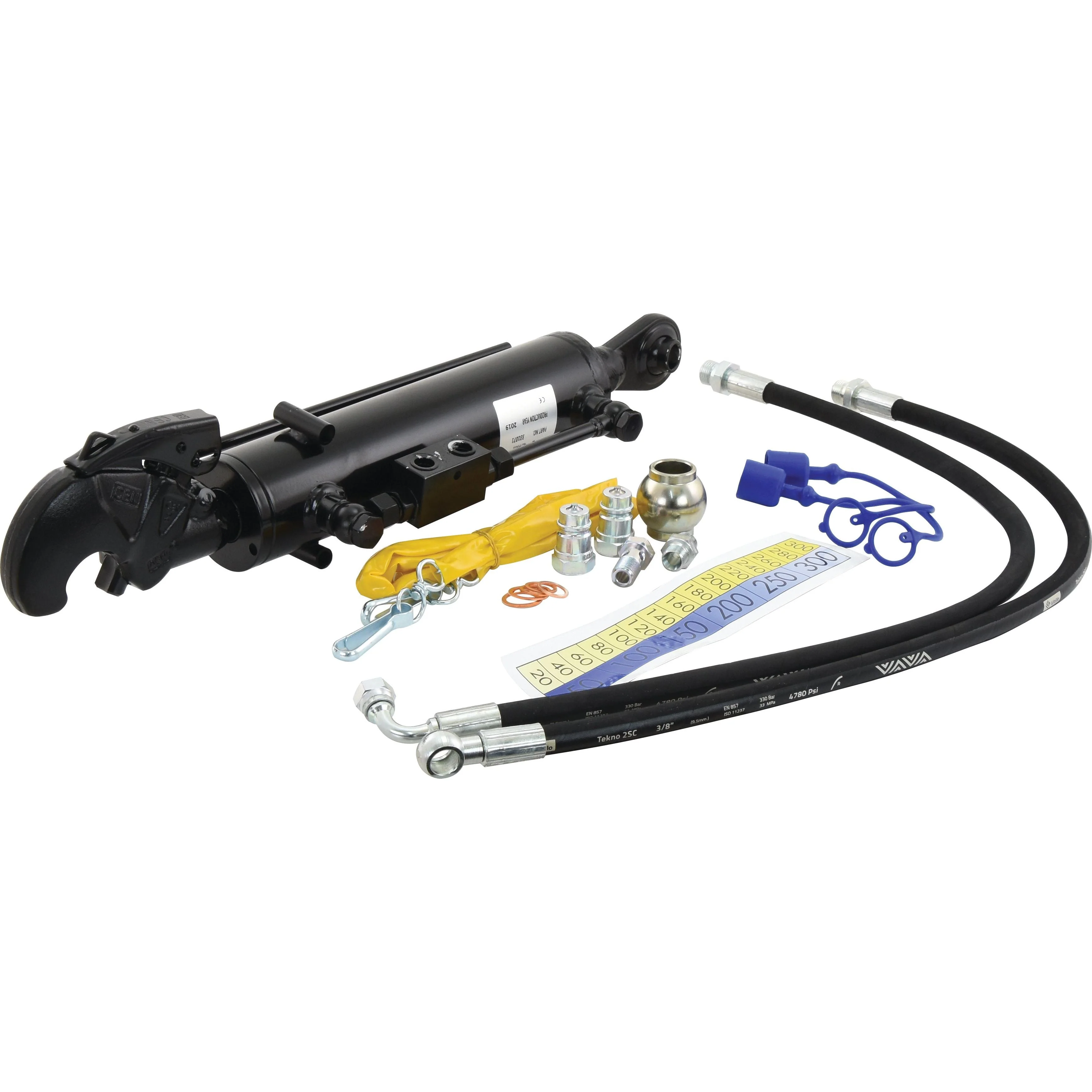

• Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
• Tariff Code: 8412212090
• Thrust @ 180 bar: 7080 kg
• Tractor End Fixing: Ball End
• Tractor End: Ball

Compatibility Information

This Hydraulic Top Link is compatible with a range of tractor models:

• Ford / New Holland: TK100A, TK4.100, TK4.100M, TK4.110, TK4.110M, TK4.80F, TK4.80N, TK4.80V, TK4.90, TK4.90M, TK4020, TK4030, TK4030V, TK4040, TK4040M, TK4050, TK4050M, TK4060, TK80A, TK80MA, TK90A, TK90MA
• Kubota: M6040 DTN-Q, M7040 DTN-Q, M8540 DTN-Q, M9540 DTN-Q
• Landini: GLOBUS 50, GLOBUS 55, GLOBUS 60, GLOBUS 65, GLOBUS 70, GLOBUS 75, GLOBUS 80

Manufacturer Information

Part Number: Ford / New Holland 84402786
