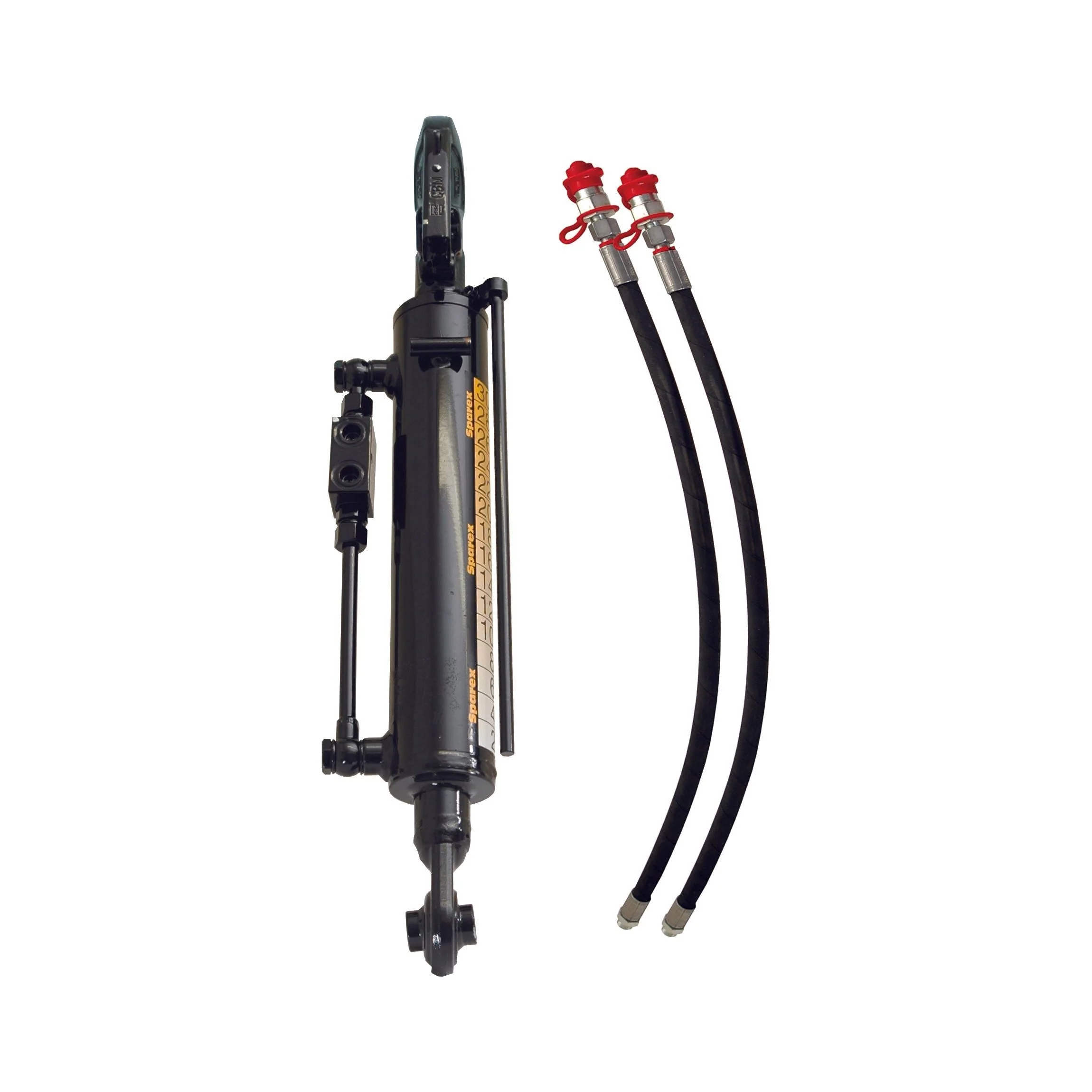

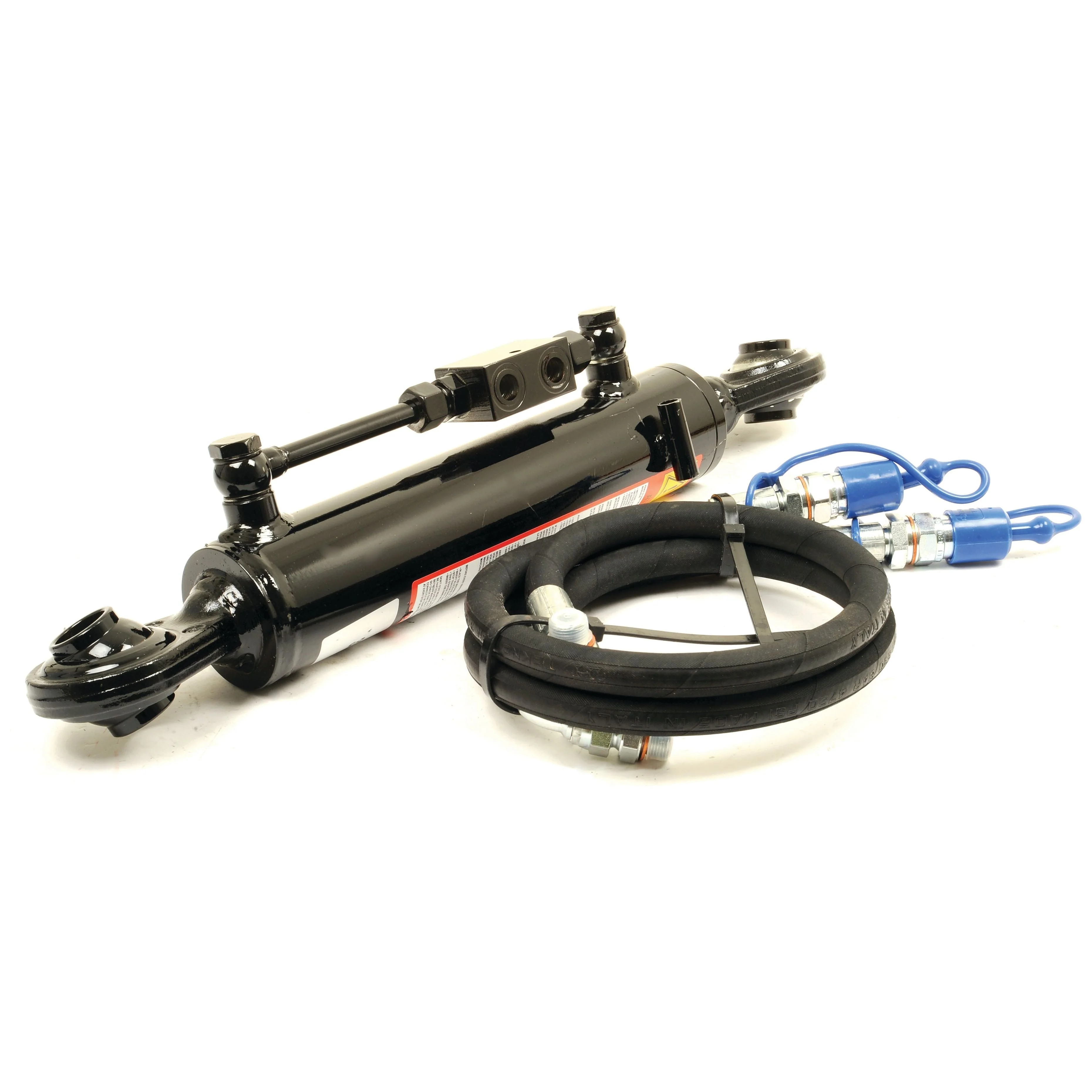

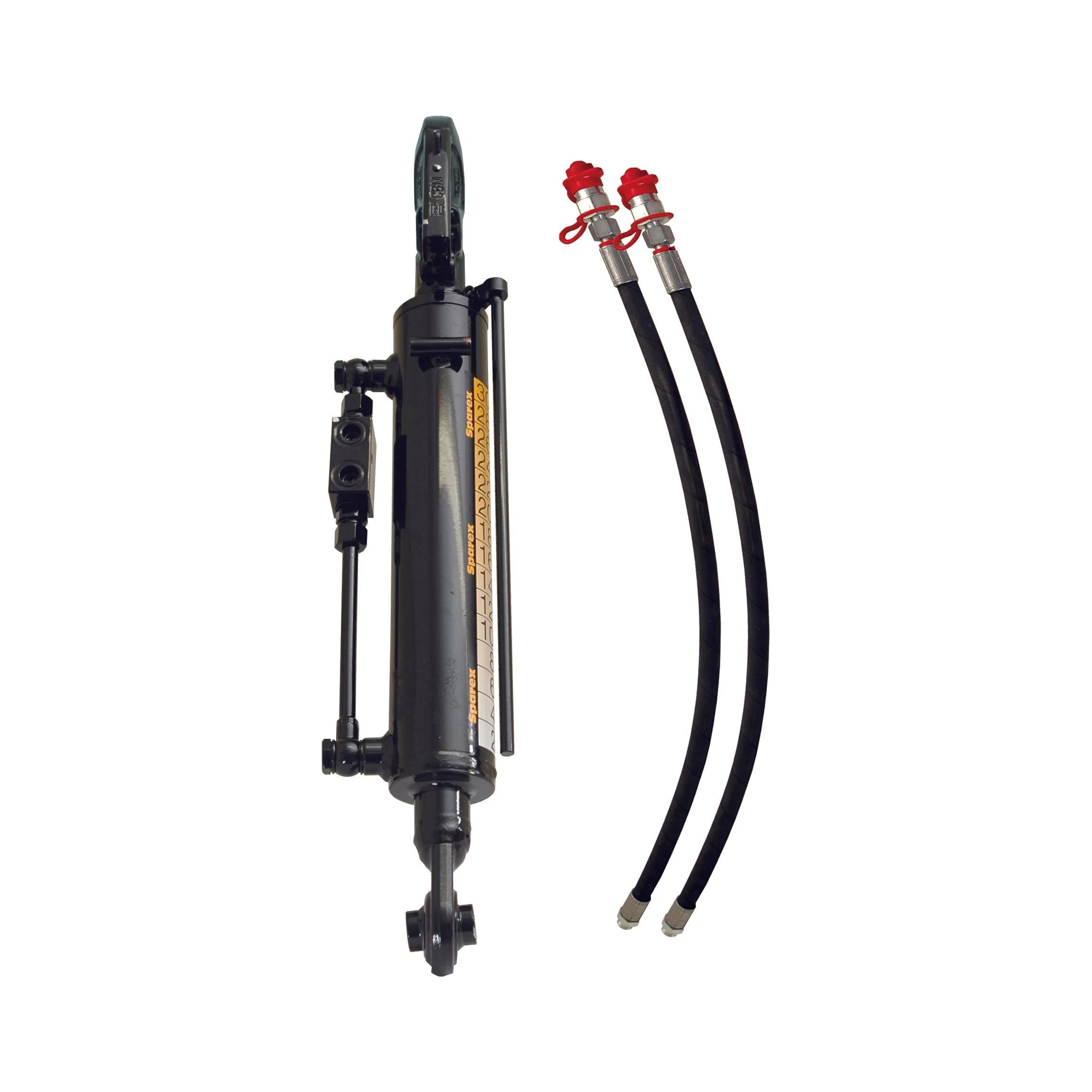

Hydraulic Top Link (Cat.1/2) Ball and Ball, Cylinder Bore: 63mm | Sparex Part No. S.331041

Enhance your tractor's performance with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this top link features a minimum length of 610mm and a maximum length of 920mm. It comes complete with a Hose Set for easy installation and use.

Product Specifications

• Alternative to: 331031
• Brand: Sparex
• Category Implement End: 2
• Category Tractor End: 1
• Category: 1/2
• Check Valve Position: Side
• Cylinder Bore: 63mm
• Implement End: Ball
• Lift Capacity @ 180 bar: 3960 kg
• Maximum Length: 920mm
• Minimum Length: 610mm
• Related Products: 32253, 33137, 33144, 33158, 39965, 39966, 39967, 39968
• Rod Diameter: 35mm
• Suitable for Tractors up to: 100hp (74kW)
• Supplied with: Hose Set
• Tariff Code: 8412212090
• Thrust @ 180 bar: 5730 kg
• Tractor End Fixing: Ball End
• Tractor End: Ball

Compatibility Information

This hydraulic top link is compatible with a variety of tractor models:

• Case IH / International Harvester: FARMALL 55C, FARMALL 65C, FARMALL 75C
• Ford / New Holland: T3.50F, T3.55F, T3.60F, T3.65F, T3.70F, T3.75F, T3.80F, T3010, T3020, T3030, T3040, T4.55, T4.55 - POWERSTAR, T4.55S, T4.65, T4.65 - POWERSTAR, T4.65S, T4.75, T4.75 - POWERSTAR, T4.75S, TD3.50, TI4.55, TI4.65, TI4.75
• Kubota: M8560, M9960

Manufacturer Information

OEM Fitment for Ford / New Holland: 87290301, 84409537, 87738504
