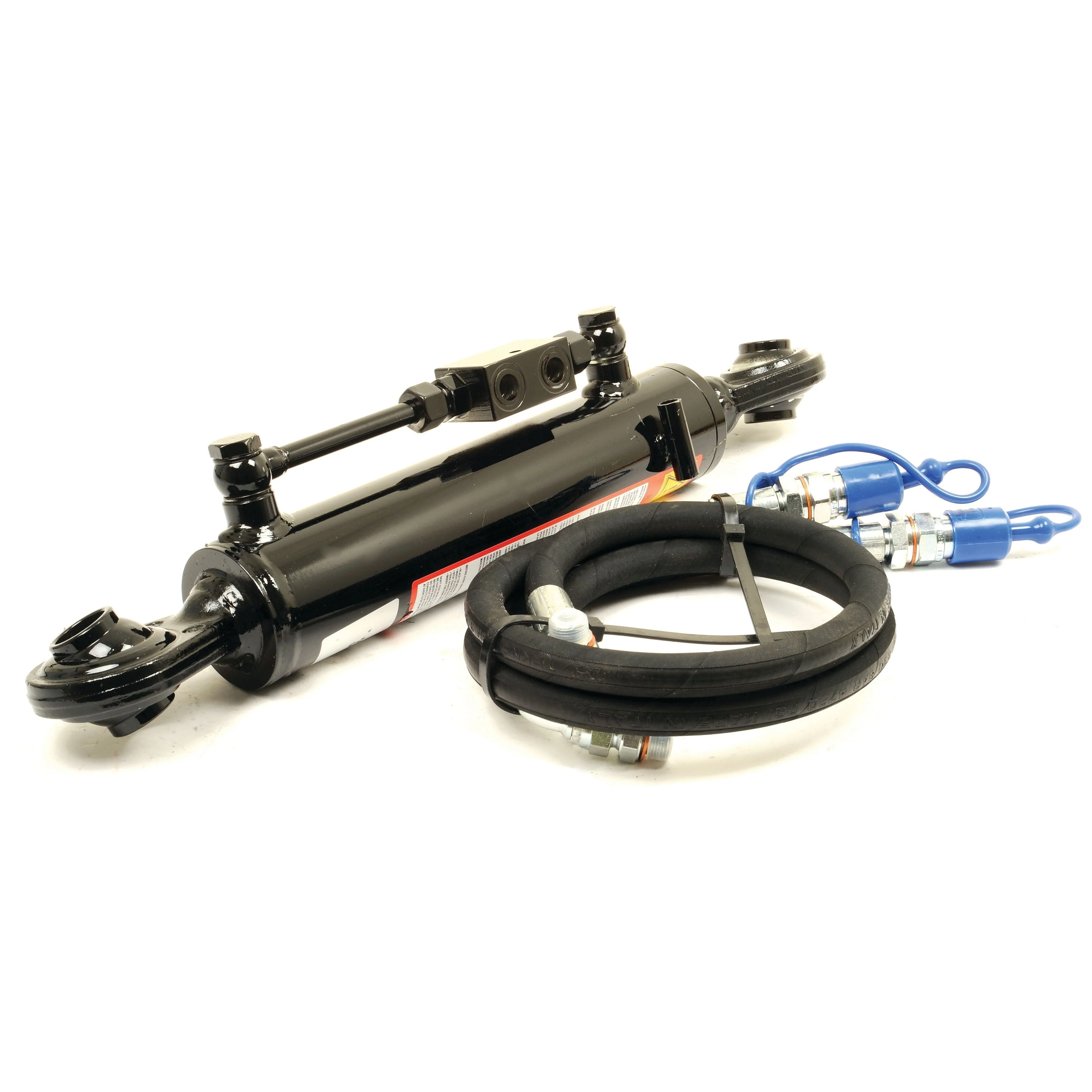

Hydraulic Top Link (Cat.1/1) Ball and Ball, Cylinder Bore: 50mm | Sparex Part No. S.399881

Enhance your tractor's performance with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this top link features a minimum length of 540mm and a maximum length of 820mm. It comes complete with a Hose Set for easy installation and use.

Product Specifications

• A (mm): 60
• Brand: Sparex
• Category Implement End: 1
• Category Tractor End: 1
• Category: 1/1
• Check Valve Position: Top
• Cylinder Bore (mm): 50
• Implement End: Ball
• Lift Capacity (kgs @ 180 bar): 2300
• Maximum Length (mm): 820
• Minimum Length (mm): 540
• Related Products: 32251, 33137, 33144, 33158, 39965, 39966, 39967, 39968
• Rod Diameter (mm): 30
• Suitable for Tractors up to: 60hp (45kW)
• Supplied with: Hose Set
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 3600
• Tractor End Fixing: Fixed
• Tractor End: Ball

Suitable For

This hydraulic top link is compatible with Kubota L5040 tractors.

Manufacture Information

Please note that this product is not associated with any specific OEM part number.
