Hydraulic Top Link (Cat.1/1) - Ball and Ball, Cylinder Bore: 50mm

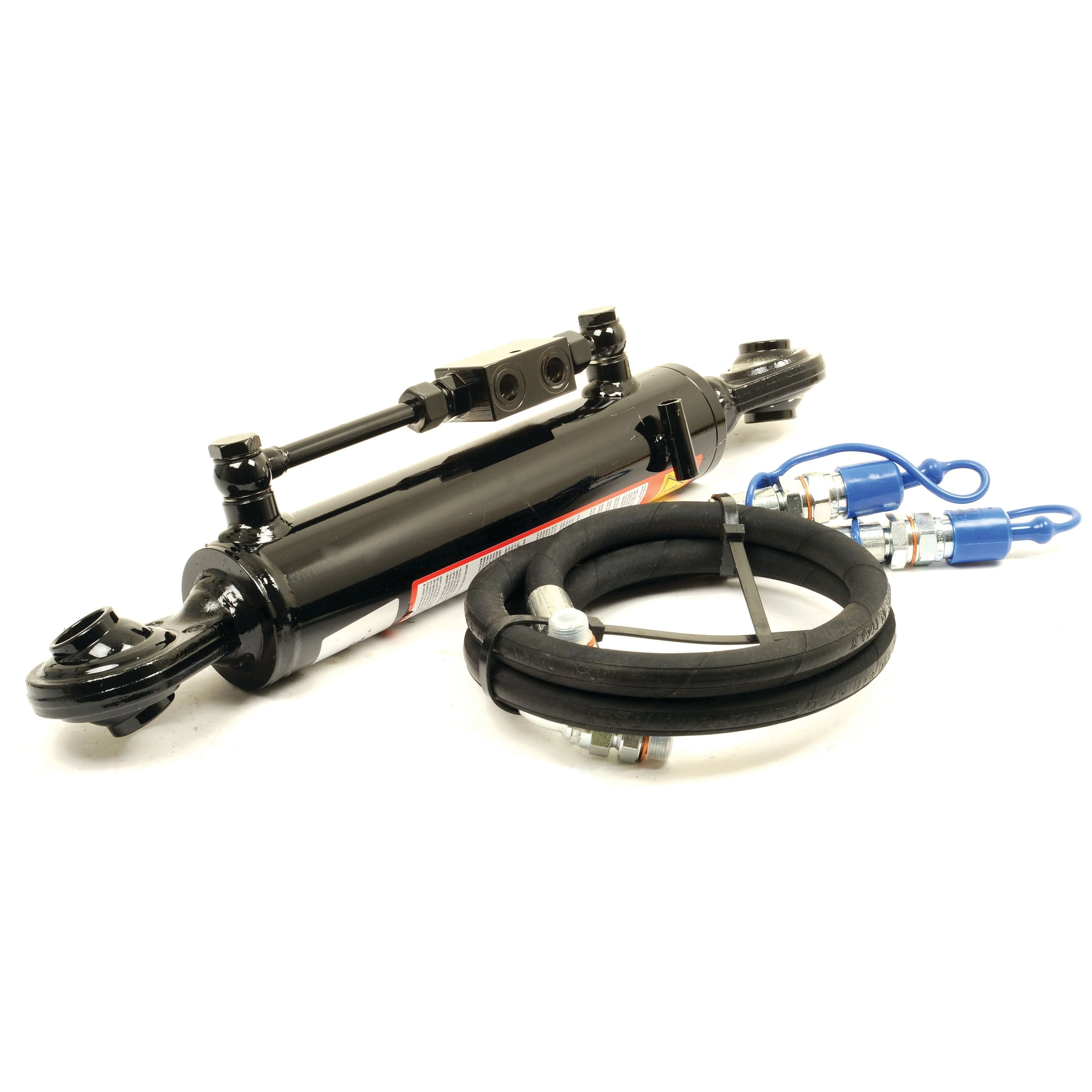

Enhance your tractor's performance with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this top link features a minimum length of 460mm and a maximum length of 620mm. It comes complete with a Hose Set for easy installation and use.

Product Specifications

• A (mm): 100
• Brand: Sparex
• Category Implement End: 1
• Category Tractor End: 1
• Category: 1/1
• Check Valve Position: Top
• Cylinder Bore (mm): 50
• Implement End: Ball
• Lift Capacity (kgs @ 180 bar): 2300
• Maximum Length (mm): 620
• Minimum Length (mm): 460
• Related Products: 32251, 33137, 33144, 33158, 39965, 39966, 39967, 39968
• Rod Diameter (mm): 30
• Suitable for Tractors up to: 60hp (45kW)
• Supplied with: Hose Set
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 3600
• Tractor End Fixing: Fixed
• Tractor End: Ball

Compatibility Information

This hydraulic top link is designed for universal fitment and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring versatility across various applications.
