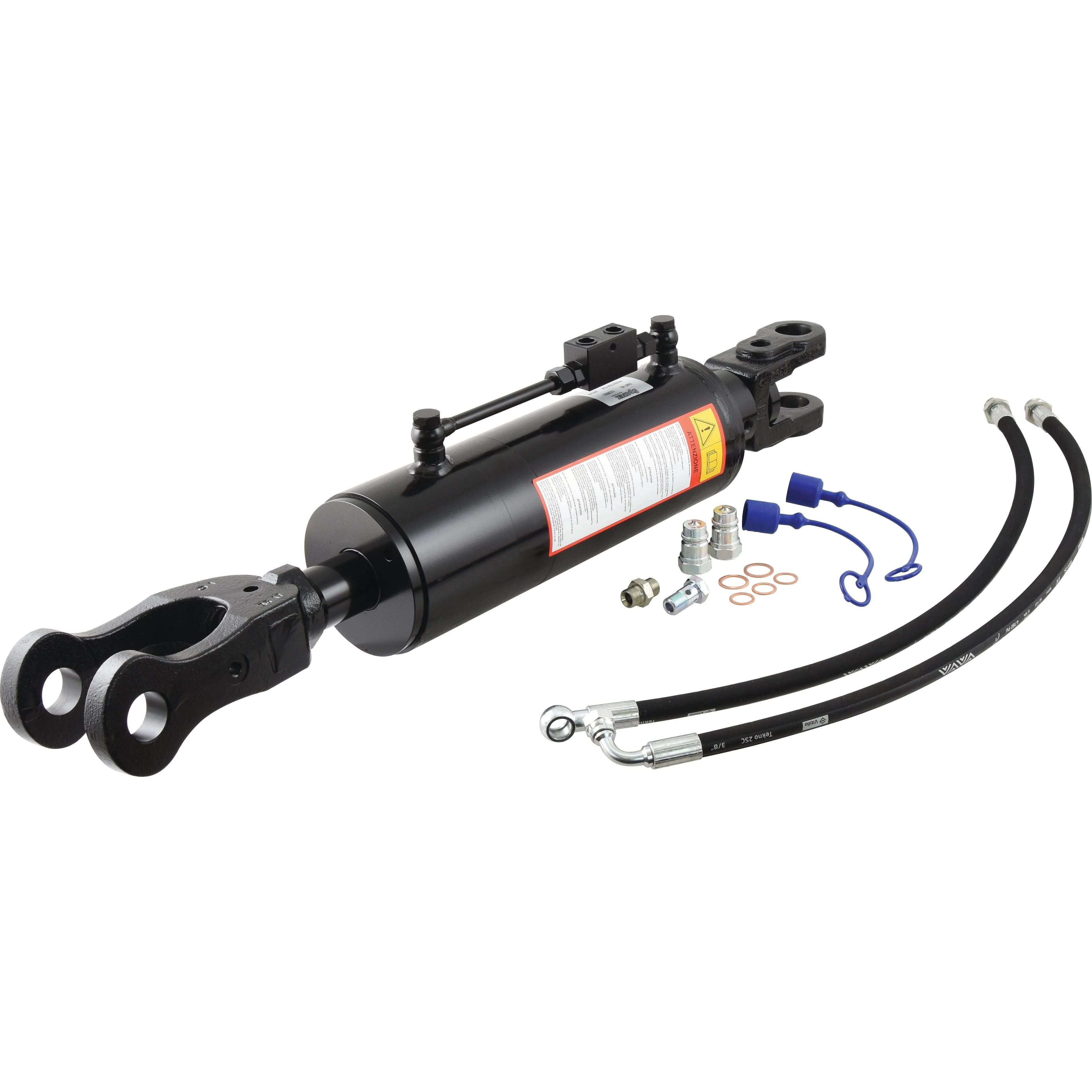

Hydraulic Levelling Box - Sparex Part No. S.113931

Enhance your machinery's performance with the Hydraulic Levelling Box from Sparex. This robust hydraulic jack is designed for optimal functionality, featuring a minimum length of 830mm and a maximum length of 1025mm. The internal width measures 75mm at both the top and bottom, while the external width is 105mm at the top and bottom, ensuring a perfect fit for your equipment.

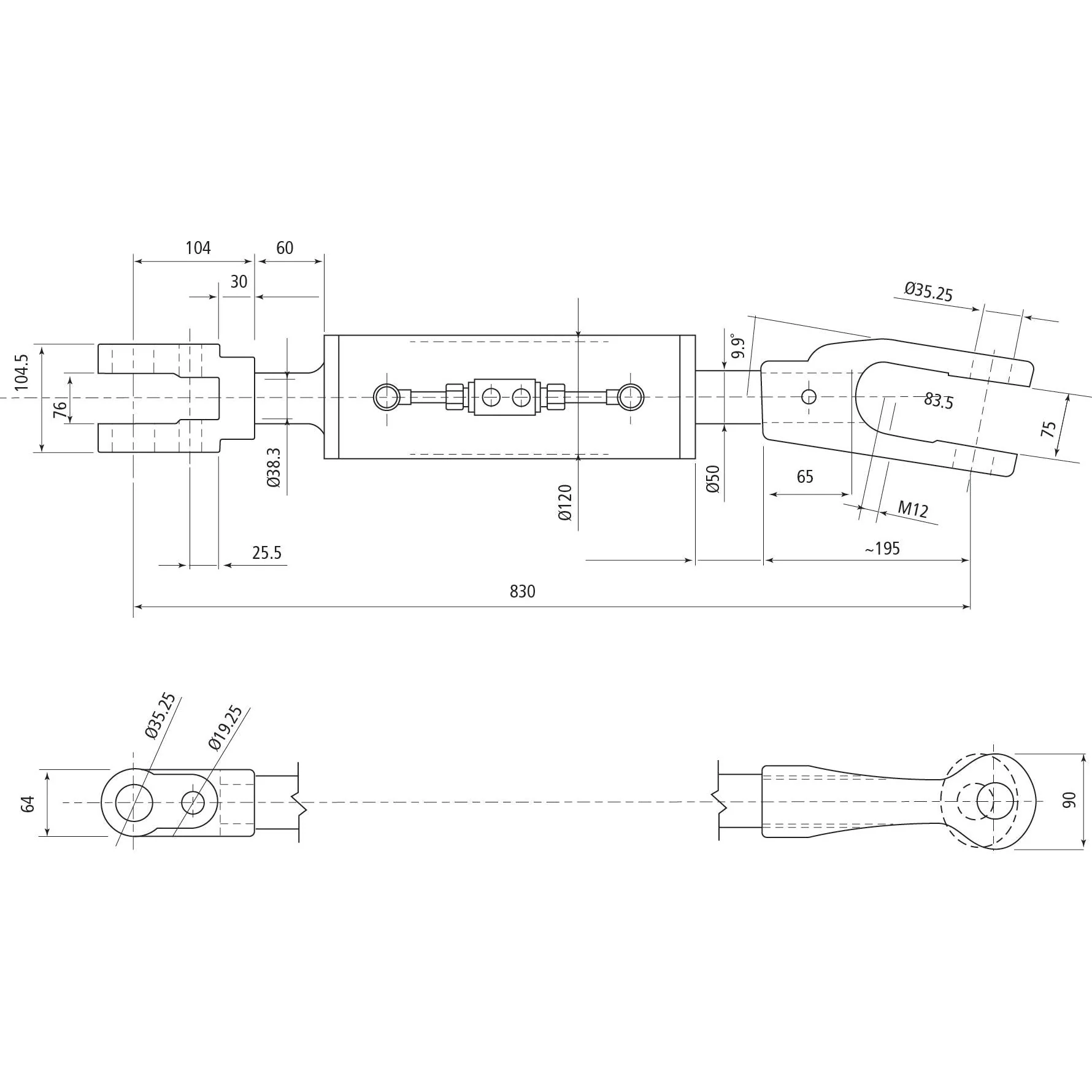

Product Specifications

• Brand: Sparex
• Check Valve Position: Top
• Cylinder Bore: 120mm
• End Fittings A: Fork Hole Ø36mm
• End Fittings B: Fork Hole Ø36mm
• Maximum Length: 1025mm
• Minimum Length: 830mm
• Related Products: 33137, 33144
• Rod Diameter: 50mm
• Supplied with: Hoses
• Tariff Code: 8412212090
• Width External: 105mm Top & 105mm Bottom
• Width Internal: 75mm Top & 75mm Bottom

Compatibility Information

This hydraulic levelling box is suitable for a variety of models from Case IH / International Harvester including:

• MAGNUM 225
• MAGNUM 235
• MAGNUM 245
• MAGNUM 250
• MAGNUM 260
• MAGNUM 275
• MAGNUM 290
• MAGNUM 380
• ...and more!

Additionally, it fits models from Ford / New Holland such as:

• T8.275
• T8.300
• T8.410
• T8.435
• ...and more!

Manufacturer Information

Compatible with OEM part numbers: 84281304, 433205A2, 90383375. Trust Sparex for quality and reliability in your hydraulic components.
