Hydraulic Levelling Box (Supplied with: Hoses) - Ball Ø 32mm - Fork Hole Ø 26x61mm - Min. Length: 720mm, Cylinder Bore: 90mm. | Sparex Part No.S.153734

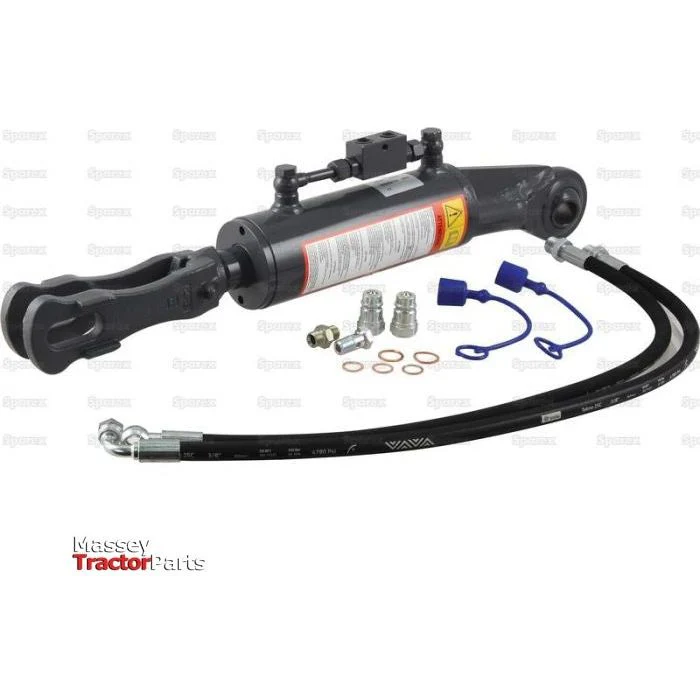

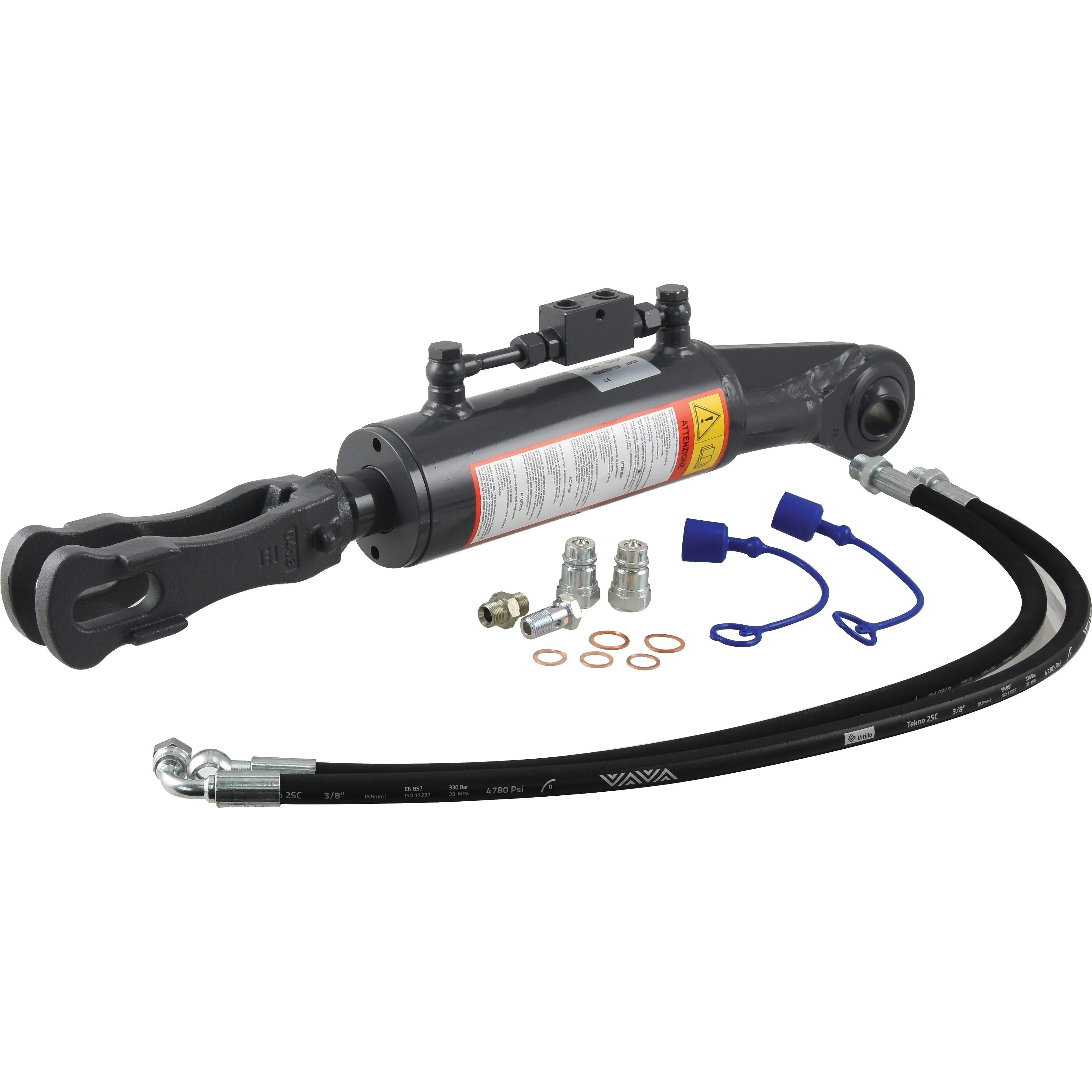

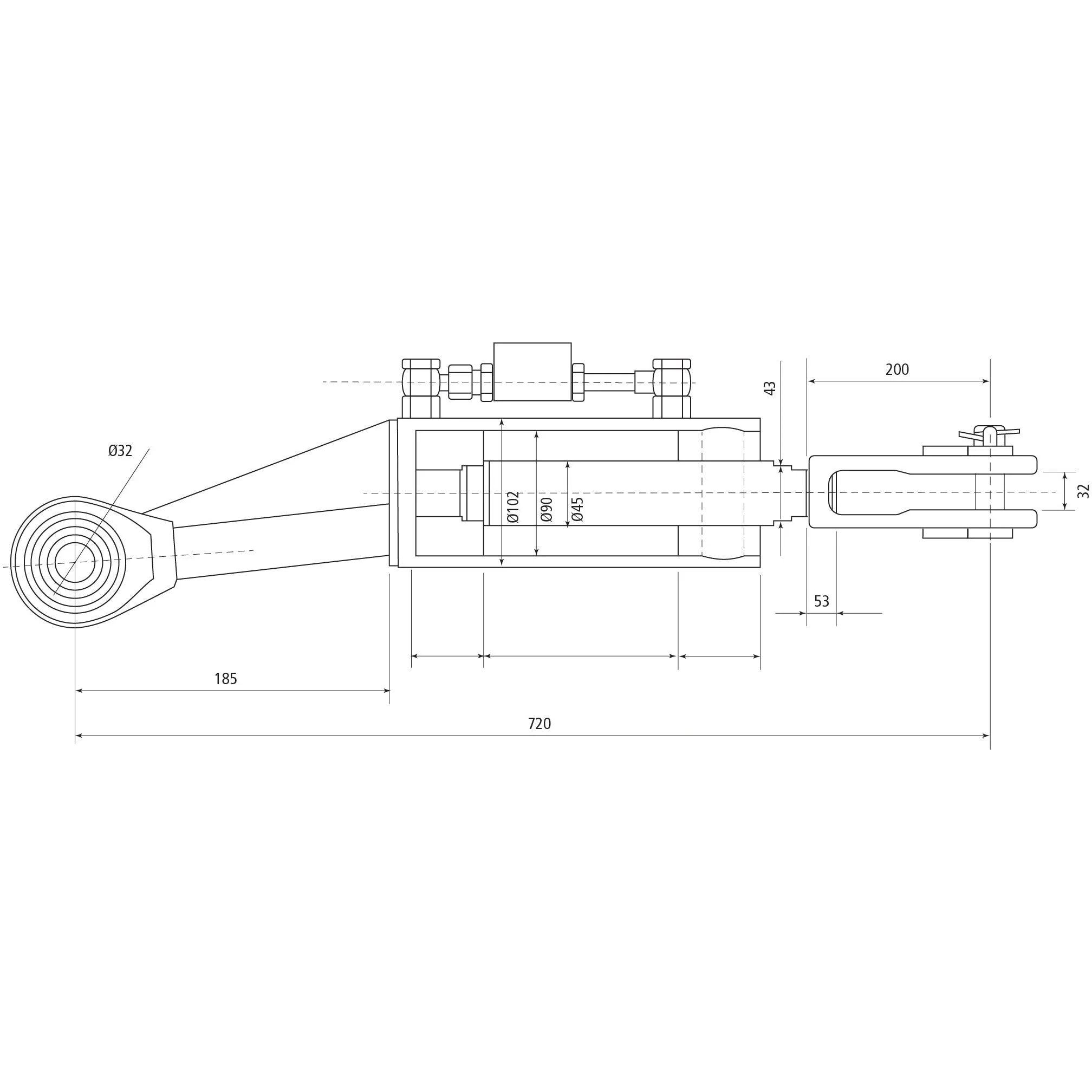

This Sparex Hydraulic Levelling Box is a high-quality replacement part designed for Kubota tractors. It features a ball end fitting with a diameter of 32mm and a fork hole with a diameter of 26mm and a length of 61mm. The box has a minimum length of 720mm and a maximum length of 850mm, with an internal width of 33mm and an external width of 70mm. It comes supplied with hoses for easy installation.

Product Specifications:

• Brand: Sparex
• Check Valve Position: Top
• Cylinder Bore (mm): 90
• End Fittings A: Ball Ø 32mm
• End Fittings B: Fork Hole Ø 26x61mm
• Maximum Length (mm): 850
• Minimum Length (mm): 720
• Related products: 33137, 33144
• Rod Ø (mm): 45
• Supplied with: Hoses
• Tariff Code: 8412212090
• Width External (mm): 70
• Width External ins: 2 3/4
• Width Internal (mm): 33
• Width Internal ins: 1 19/64

Suitable For:

Kubota tractors:

• M7131
• M7132
• M7151
• M7152
• M7171
• M7172

Manufacture Information:

This product is not associated with any particular OEM part number.
