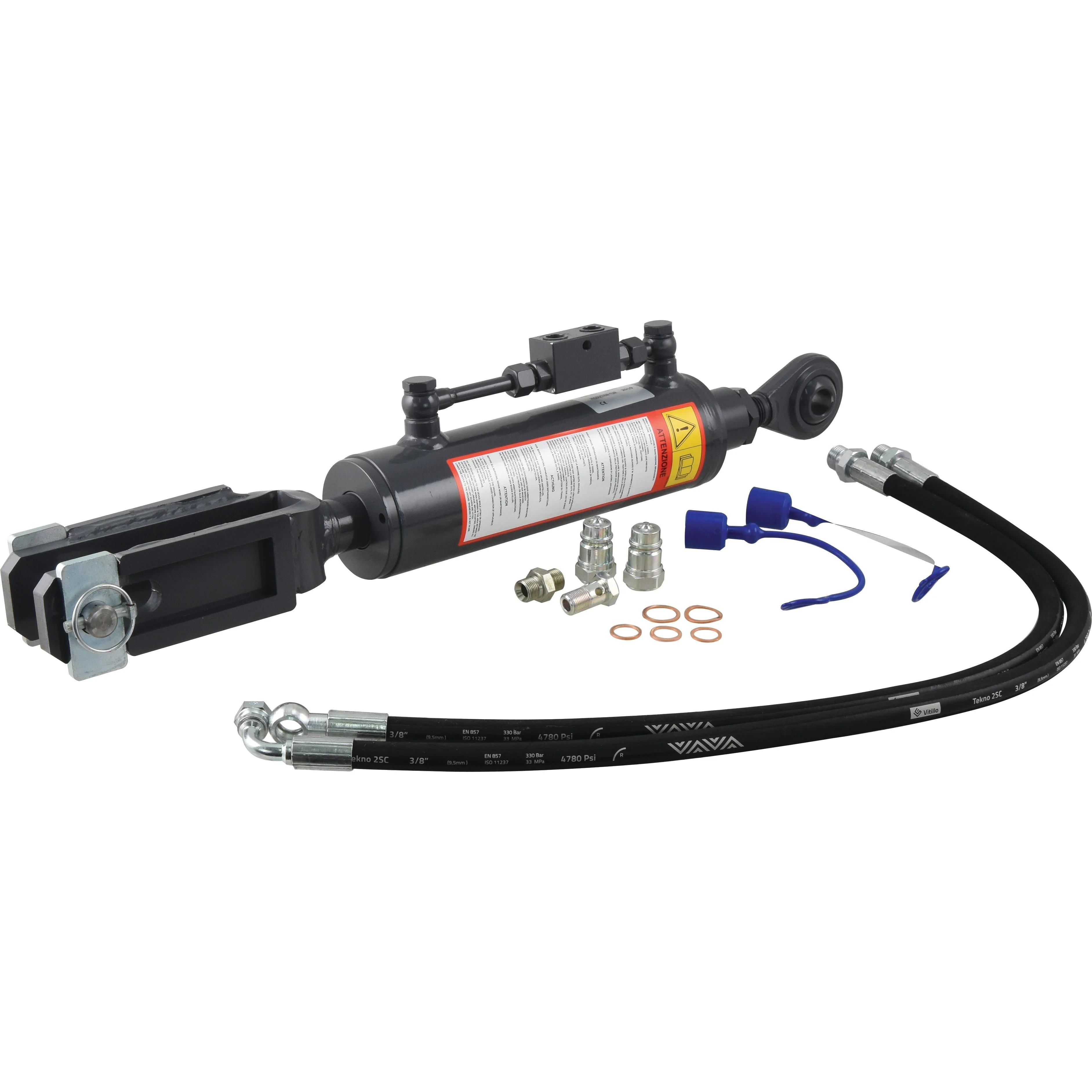

Sparex Hydraulic Levelling Box (Supplied with: Hoses) - Ball Ø 22mm - Fork Hole Ø 23x50mm - Min. Length: 680mm, Cylinder Bore: 80mm. | Sparex Part No.S.155245

This Sparex Hydraulic Levelling Box is a high-quality replacement part designed for use with a variety of Kubota tractors. It features a ball end fitting with a diameter of 22mm and a fork hole end fitting with a diameter of 23x50mm. The minimum length of the box is 680mm, and the maximum length is 800mm. The internal width is 33mm, and the external width is 70mm. This box is supplied with hoses for easy installation.

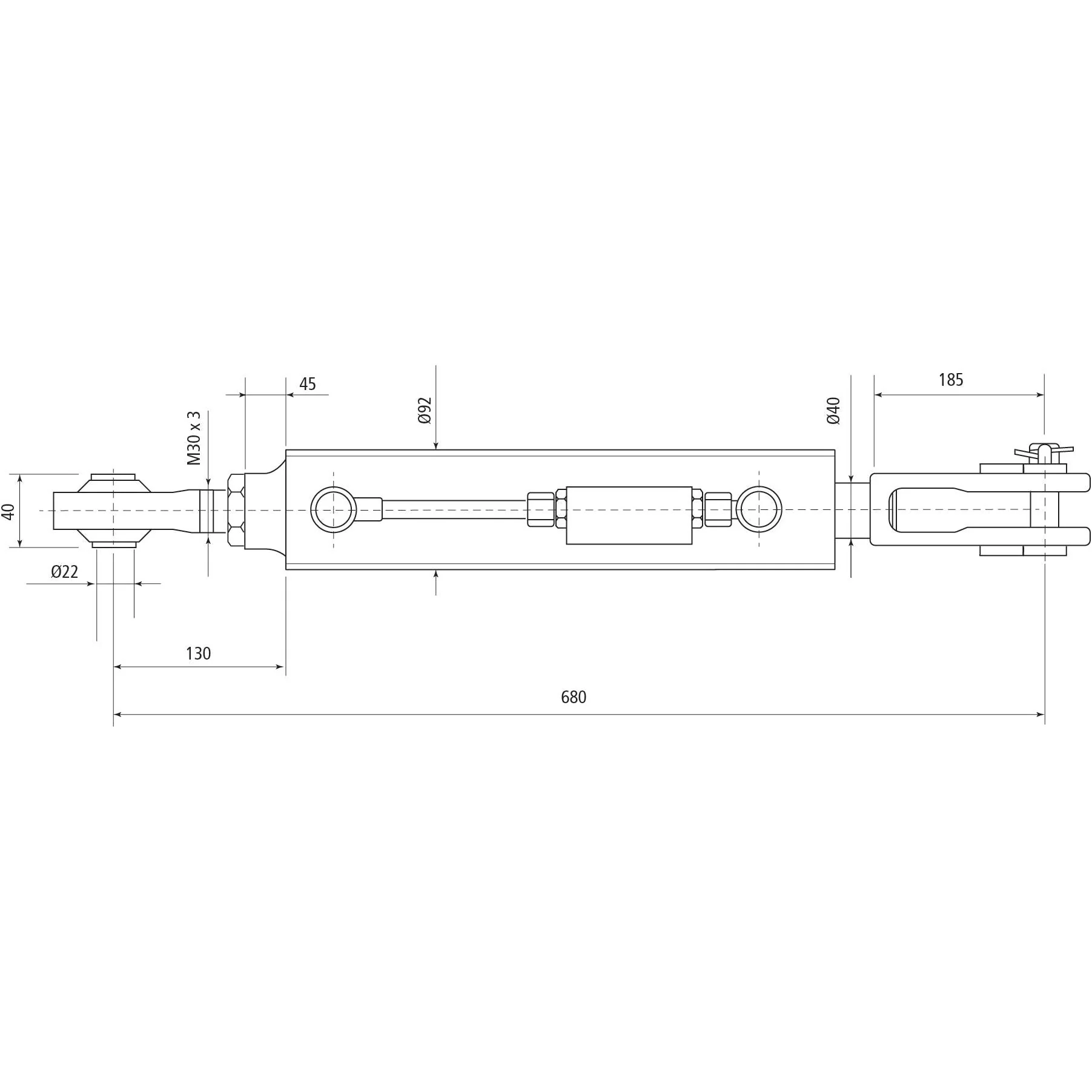

Product Specifications

• Brand: Sparex
• Check Valve Position: Top
• Cylinder Bore (mm): 80
• End Fittings A: Ball Ø 22mm
• End Fittings B: Fork Hole Ø 23x50mm
• Maximum Length (mm): 800
• Minimum Length (mm): 680
• Related products: 33137, 33144
• Rod Ø (mm): 40
• Supplied with: Hoses
• Tariff Code: 8412212090
• Width External (mm): 70
• Width External ins: 2 3/4
• Width Internal (mm): 33
• Width Internal ins: 1 19/64

Suitable For

This Sparex Hydraulic Levelling Box is suitable for the following Kubota tractor models:

• M100GX
• M105GX-III
• M110GX
• M115GX-III
• M125GX-III
• M128GX
• M130GX
• M135GX
• M135GX-III
• M95GX-III

Manufacture Information

This product is not associated with any particular OEM part number.
