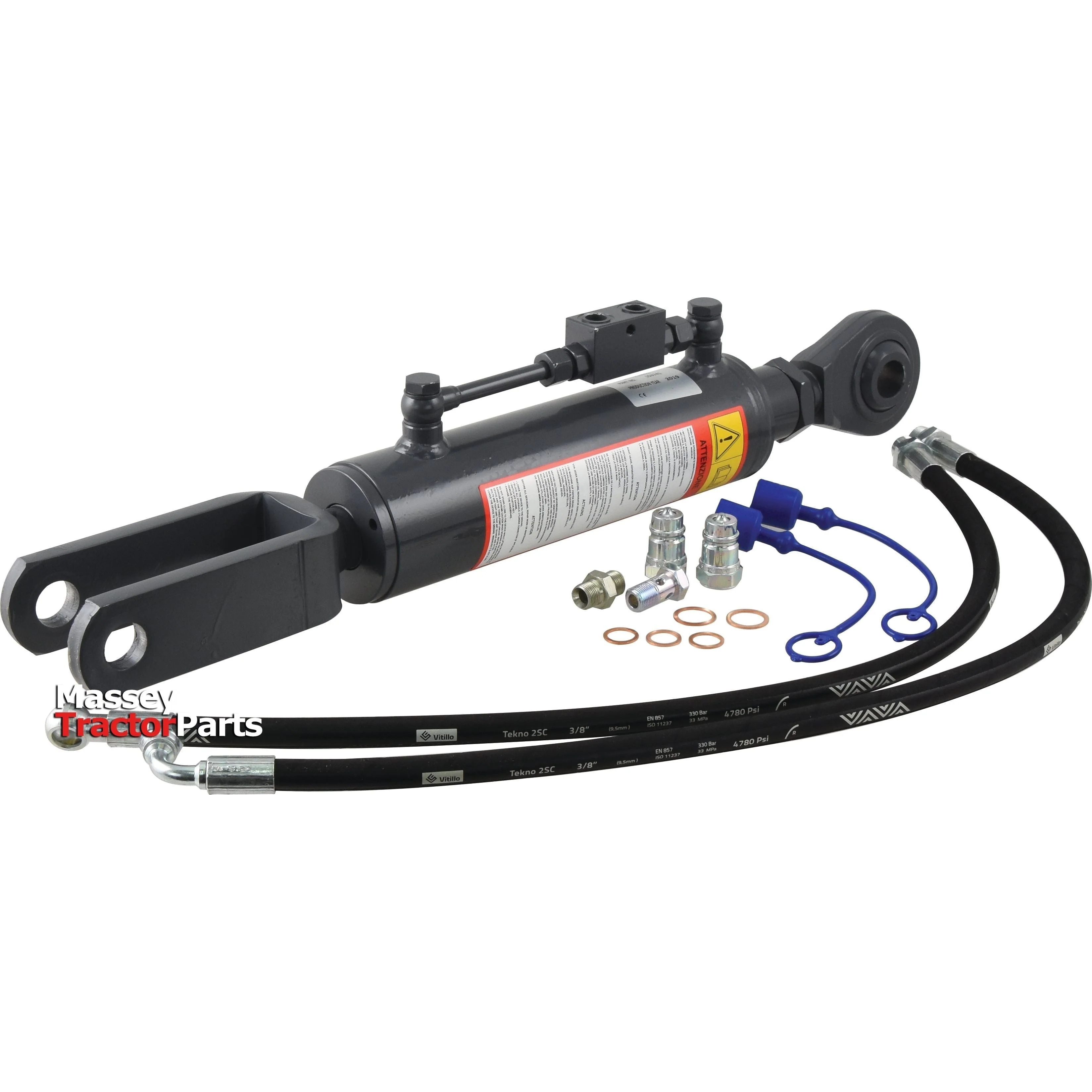

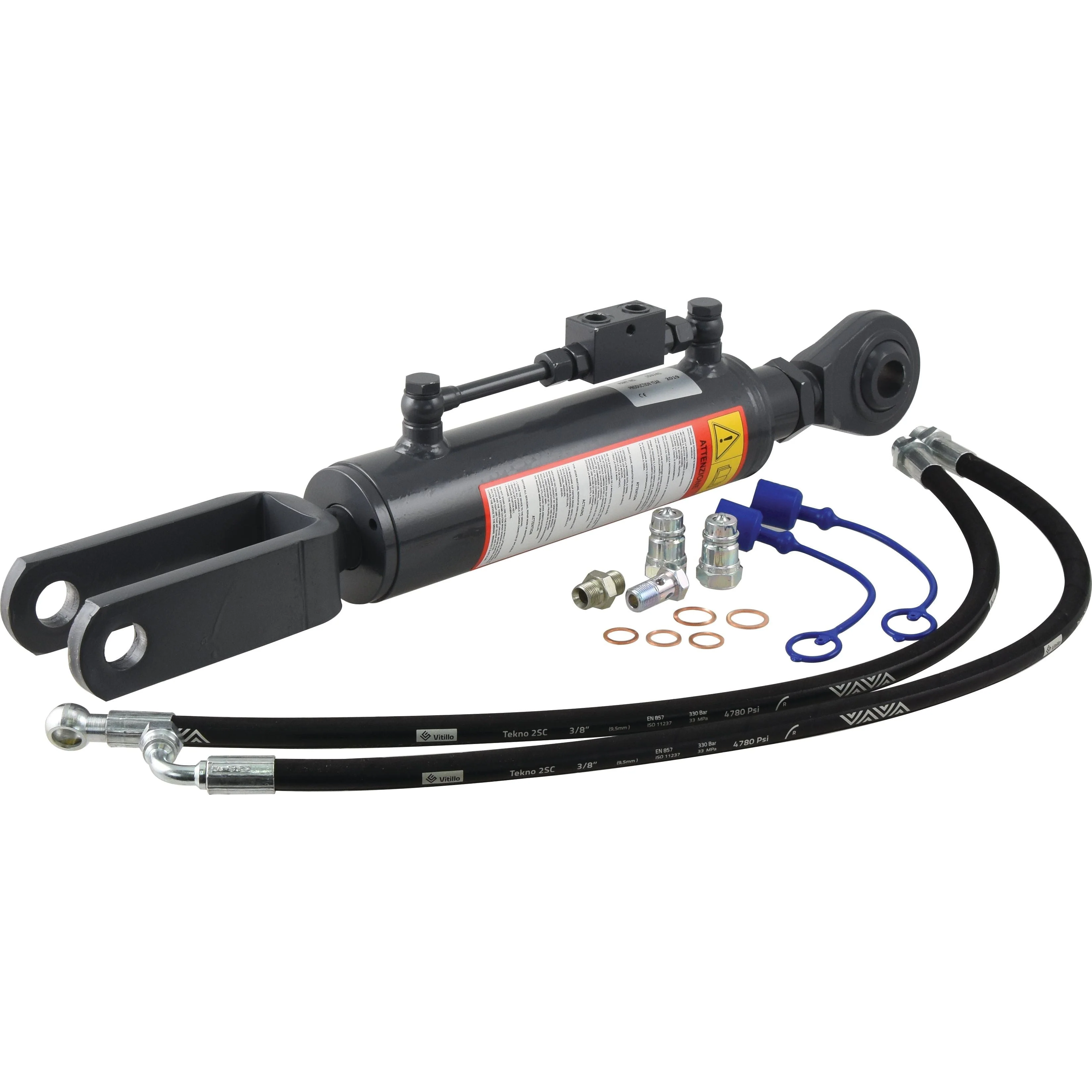

Hydraulic Levelling Box (Supplied with: Hoses) - Ball Ø 28mm - Fork Hole Ø 28mm - Min. Length: 680mm, Cylinder Bore: 80mm. | Sparex Part No.S.153741

This Sparex Hydraulic Levelling Box is a high-quality replacement part designed for Fendt tractors. It features a ball end fitting with a diameter of 28mm and a fork hole end fitting with a diameter of 28mm. The minimum length of the box is 680mm, and the cylinder bore is 80mm. It comes supplied with hoses for easy installation.

Key Features:

• Brand: Sparex
• Check Valve Position: Top
• Cylinder Bore (mm): 80
• End Fittings A: Ball Ø 28mm
• End Fittings B: Fork Hole Ø 28mm
• Maximum Length (mm): 780
• Minimum Length (mm): 680
• Related products: 33137, 33144
• Rod Ø (mm): 40
• Supplied with: Hoses
• Tariff Code: 8412212090
• Width External (mm): 90
• Width External ins: 3 35/64
• Width Internal (mm): 61
• Width Internal ins: 2 13/32

Suitable For:

• Fendt 512 VARIO
• Fendt 513 VARIO
• Fendt 514 VARIO
• Fendt 516 VARIO

Manufacturer Information:

• Fendt G416870030010
• Fendt G438870200300
