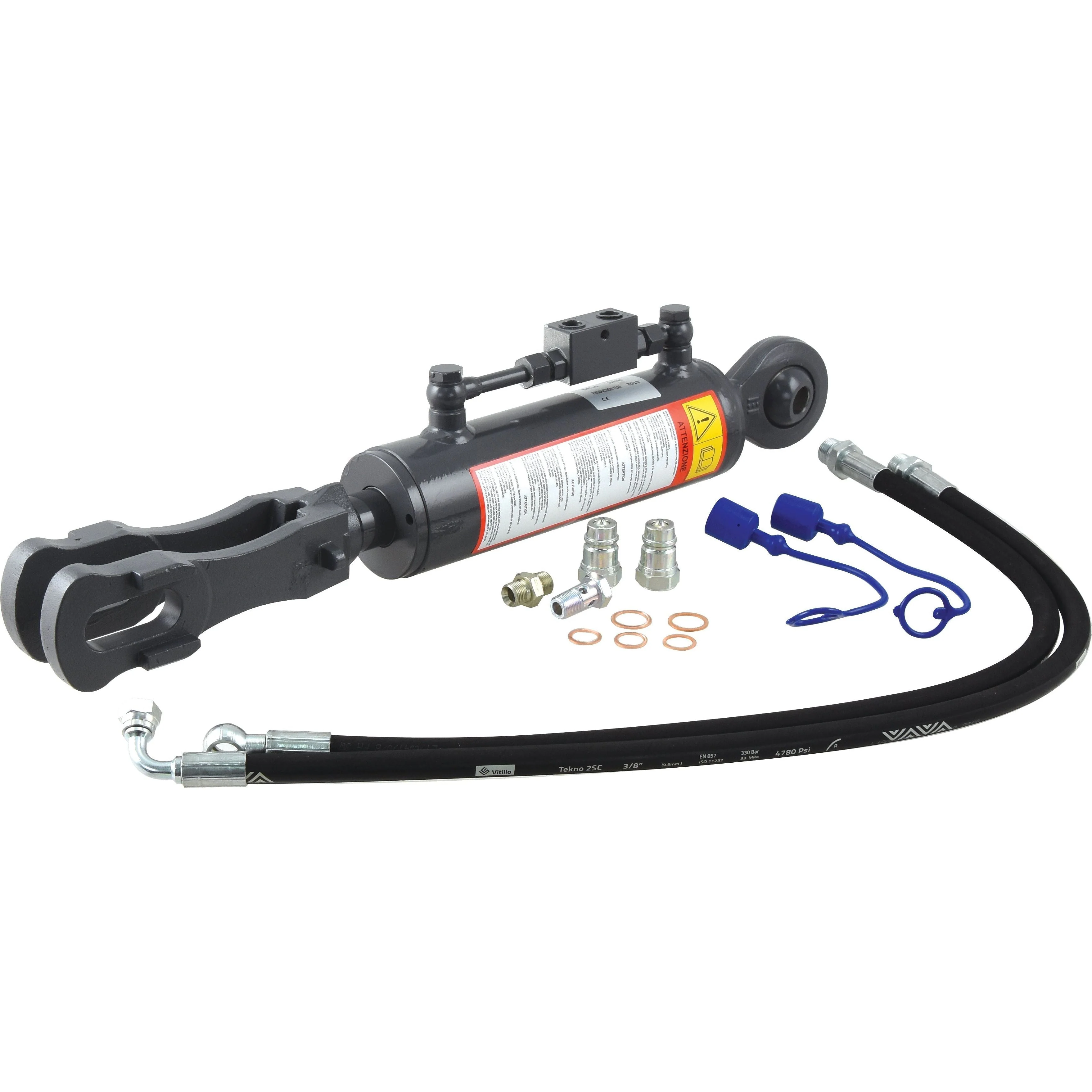

Sparex Hydraulic Levelling Box (Supplied with: Hoses) - Ball-Angled Ø 22mm - Fork Hole Ø 29x60mm - Min. Length: 640mm, Cylinder Bore: 80mm. | Sparex Part No.S.153735

This Sparex Hydraulic Levelling Box is a high-quality replacement part designed for use with a variety of Massey Ferguson tractors. It features a ball-angled Ø 22mm end fitting and a fork hole Ø 29x60mm end fitting, making it compatible with a wide range of applications. The box has a minimum length of 640mm and a maximum length of 750mm, providing flexibility for different installation needs. It also has a cylinder bore of 80mm, ensuring optimal performance.

Key Features:

• Brand: Sparex
• Check Valve Position: Top
• Cylinder Bore (mm): 80
• End Fittings A: Ball-Angled Ø 22mm
• End Fittings B: Fork Hole Ø 29x60mm
• Maximum Length (mm): 750
• Minimum Length (mm): 640
• Rod Ø (mm): 40
• Supplied with: Hoses
• Width External (mm): 73
• Width External ins: 2 7/8
• Width Internal (mm): 32
• Width Internal ins: 1 17/64

Suitable For:

This hydraulic levelling box is suitable for the following Massey Ferguson tractor models:

• 5410
• 5420
• 5425
• 5430
• 5435
• 5440
• 5445
• 5450
• 5455
• 5460
• 5465
• 5470
• 5475
• 5480
• 6445
• 6455
• 6460
• 6465
• 6470
• 6475
• 6480

Additional Information:

• This product is not associated with any particular OEM part number.
• Related products: 33137, 33144, 150005, 150007, 150019, 150022
• Tariff Code: 8412212090
