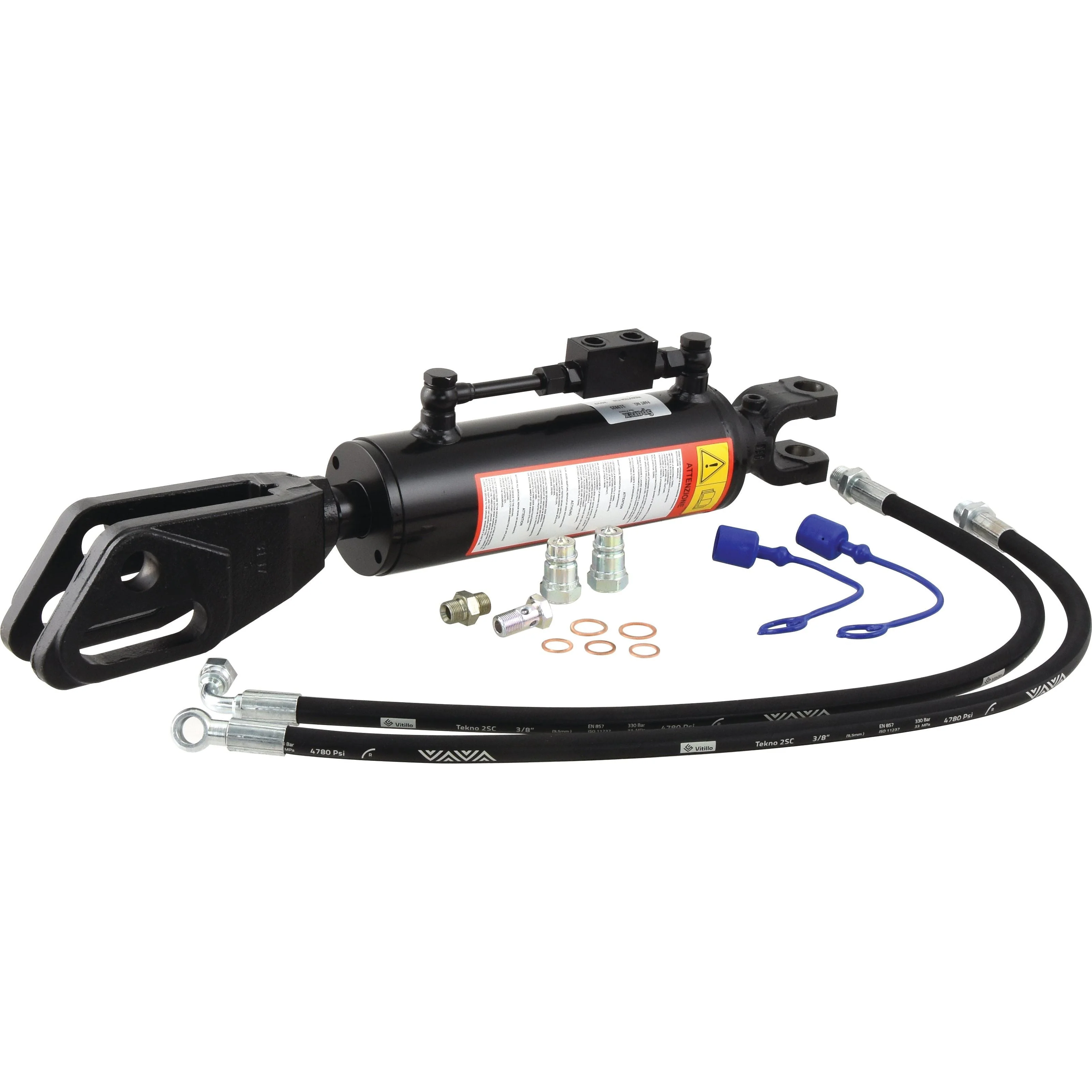

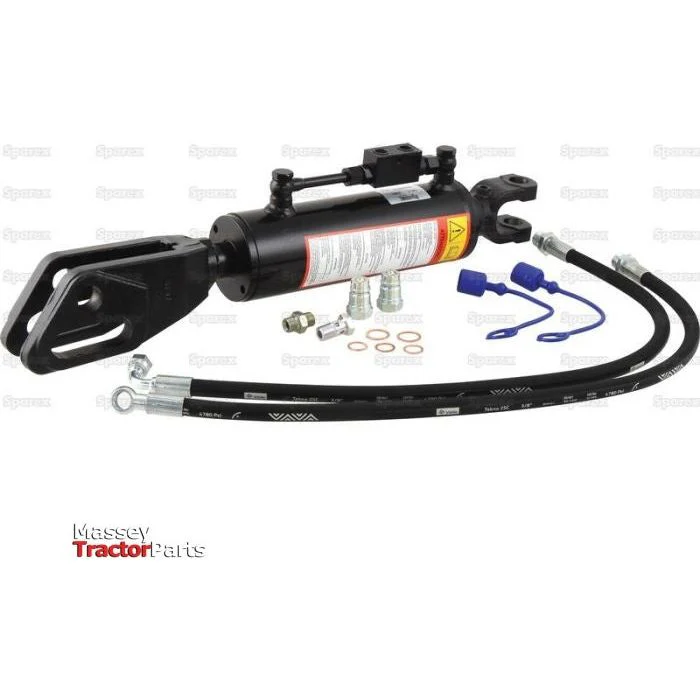

Hydraulic Levelling Box - Sparex Part No. S.113925

Enhance your agricultural machinery with the Hydraulic Levelling Box from Sparex, designed for optimal performance and durability. This hydraulic lift features a minimum length of 620mm and a maximum length of 808mm, making it versatile for various applications. The internal width measures 40mm at both the top and bottom, while the external width is 91mm at the top and 80mm at the bottom.

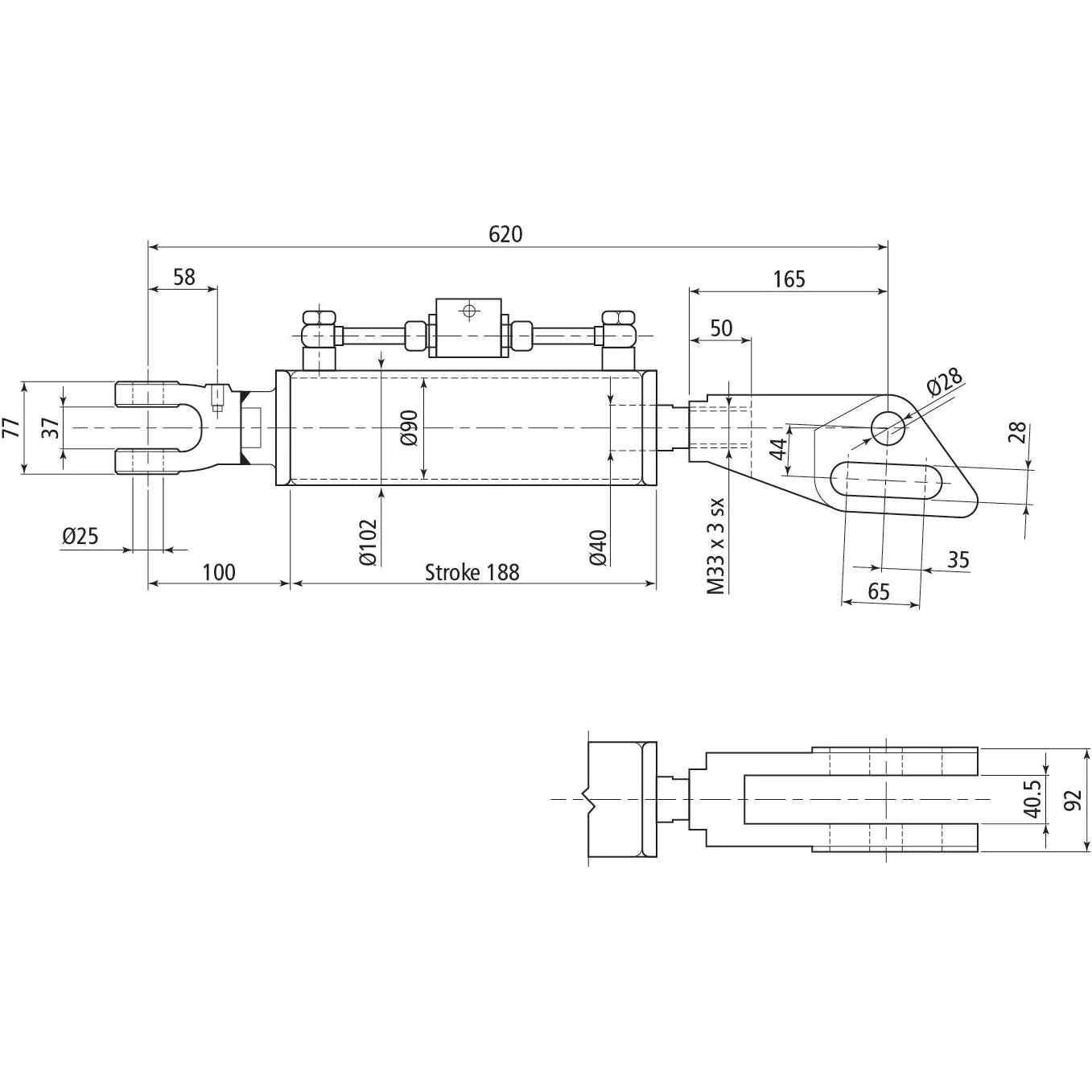

Product Specifications

• Alternative to: 149793
• Brand: Sparex
• Check Valve Position: Side
• Cylinder Bore: 90mm
• End Fittings A: Fork Hole Ø 25mm
• End Fittings B: Fork Hole Ø 28 & 28x95mm
• Maximum Length: 808mm
• Minimum Length: 620mm
• Related Products: 33137, 33144, 149591
• Rod Diameter: 40mm
• Supplied with: Hoses
• Tariff Code: 8412212090
• External Width: 91mm Top & 80mm Bottom
• External Width (inches): 3 37/64 Top & 3 5/32 Bottom
• Internal Width: 40mm Top & 40mm Bottom
• Internal Width (inches): 1 39/64 Top & 1 37/64 Bottom

Suitable For

This hydraulic levelling box is compatible with a range of models:

• Case IH / International Harvester: PUMA 125, PUMA 130, PUMA 140, PUMA 145, PUMA 150, PUMA 150 - CVX, PUMA 150 - MULTICONTROLLER, PUMA 155, PUMA 160, PUMA 165, PUMA 165 - CVX, PUMA 165 - MULTICONTROLLER, PUMA 175 - CVX
• Ford / New Holland: T6030 - POWER COMMAND, T6030 - RANGE COMMAND, T6050 - POWER COMMAND, T6050 - RANGE COMMAND, T6070 - POWER COMMAND, T6070 - RANGE COMMAND, T6080 - POWER COMMAND, T6080 - RANGE COMMAND, T7.140, T7.150, T7.165, T7.165 - CLASSIC, T7.165S - CLASSIC, T7.170, T7.170 - AUTOCOMMAND, T7.170 - POWER COMMAND, T7.170 - RANGE COMMAND, T7.175, T7.175 - AUTOCOMMAND, T7.175 - CLASSIC, T7.175 - SIDEWINDER II, T7.180, T7.185, T7.185 - AUTOCOMMAND, T7.185 - POWER COMMAND, T7.185 - RANGE COMMAND, T7.190, T7.190 - AUTOCOMMAND, T7.190 - CLASSIC, T7.190 - SIDEWINDER II, T7.200, T7.200 - AUTOCOMMAND, T7.200 - POWER COMMAND, T7.200 - RANGE COMMAND, T7.205, T7.210, T7.210 - AUTOCOMMAND, T7.210 - CLASSIC, T7.210 - POWER COMMAND, T7.210 - RANGE COMMAND, T7.210 - SIDEWINDER II, T7.220, T7.225 - AUTOCOMMAND
• Steyr: 6160CVT, 6165CVT, 6175CVT, CVT 6145, CVT 6160, CVT 6170

Manufacturer Information

OEM Fitment Information for Ford / New Holland: 87379322, 87496537
