Sparex Hydraulic Levelling Box - S.153732

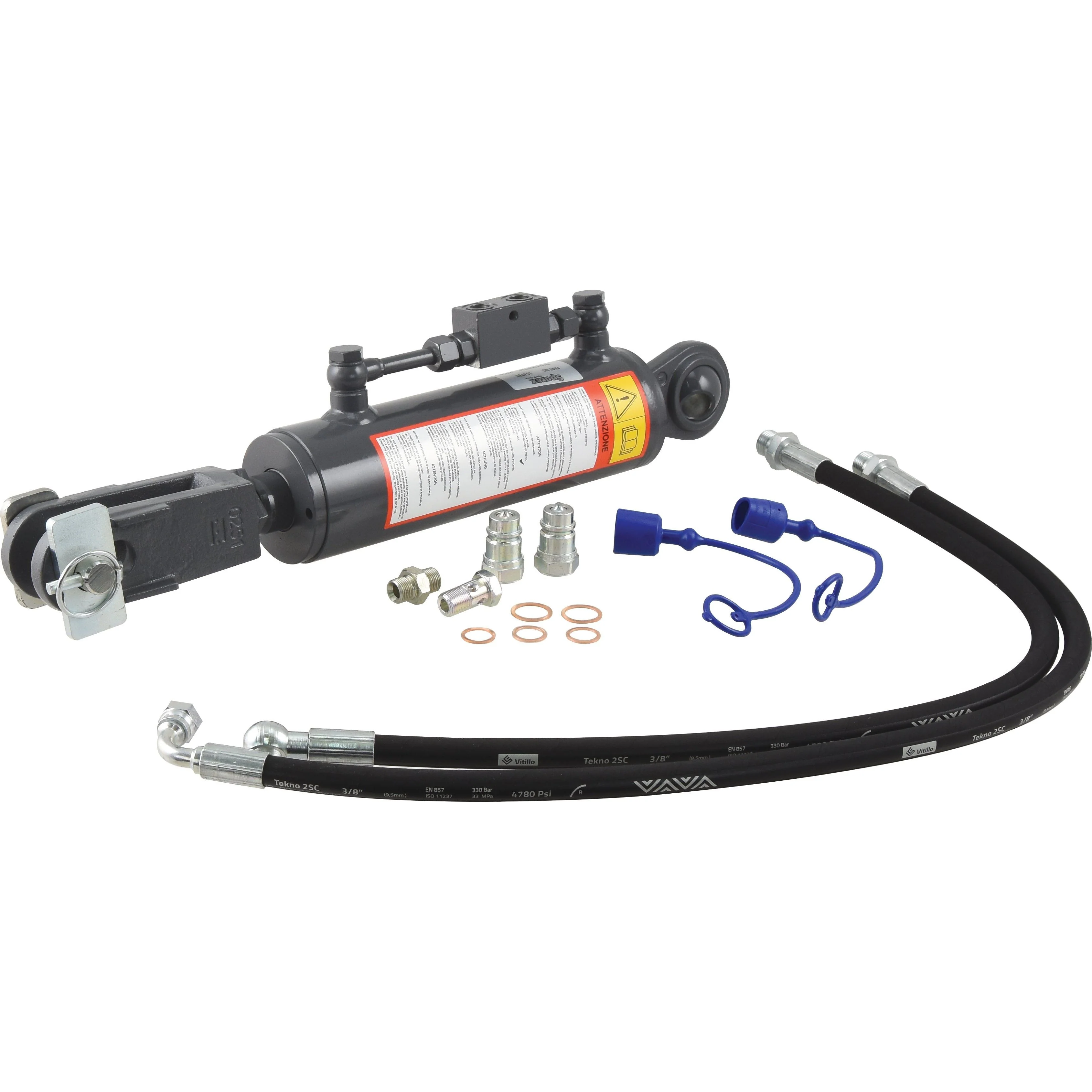

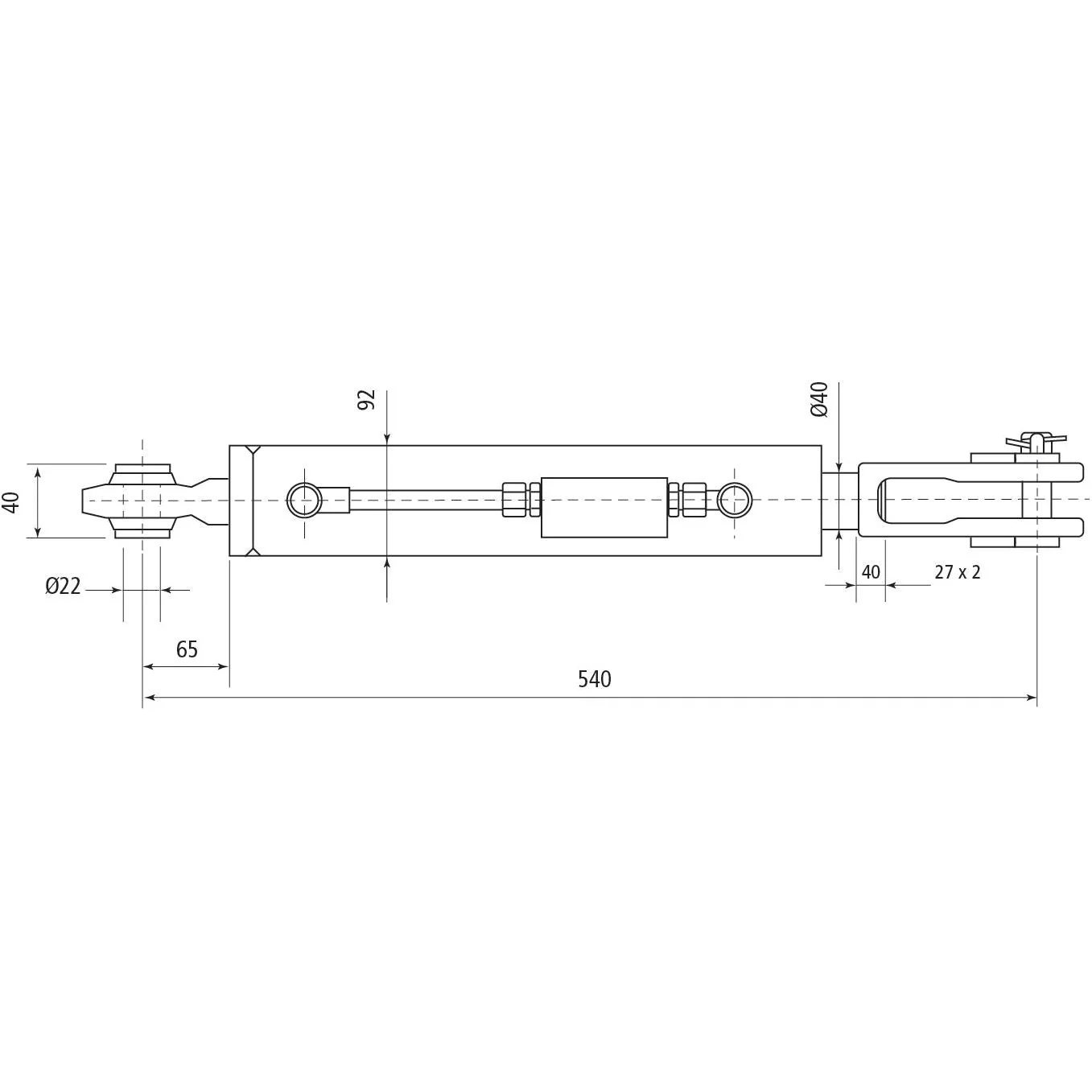

This Sparex Hydraulic Levelling Box is a high-quality replacement part designed for use with Kubota tractors. It features a ball end fitting with a diameter of 22mm and a fork hole end fitting with dimensions of 23x50mm. The minimum length of the box is 540mm, and it has a cylinder bore of 80mm.
Key Features:
- Brand: Sparex
- Check Valve Position: Top
- Cylinder Bore (mm): 80
- End Fittings A: Ball Ø 22mm
- End Fittings B: Fork Hole Ø 23x50mm
- Maximum Length (mm): 650
- Minimum Length (mm): 540
- Rod Ø (mm): 40
- Supplied with: Hoses
- Width External (mm): 59
- Width Internal (mm): 28
Suitable For:
- Kubota M5091
- Kubota M5111
- Kubota M8560
- Kubota M9960
This product is not associated with any particular OEM part number.
