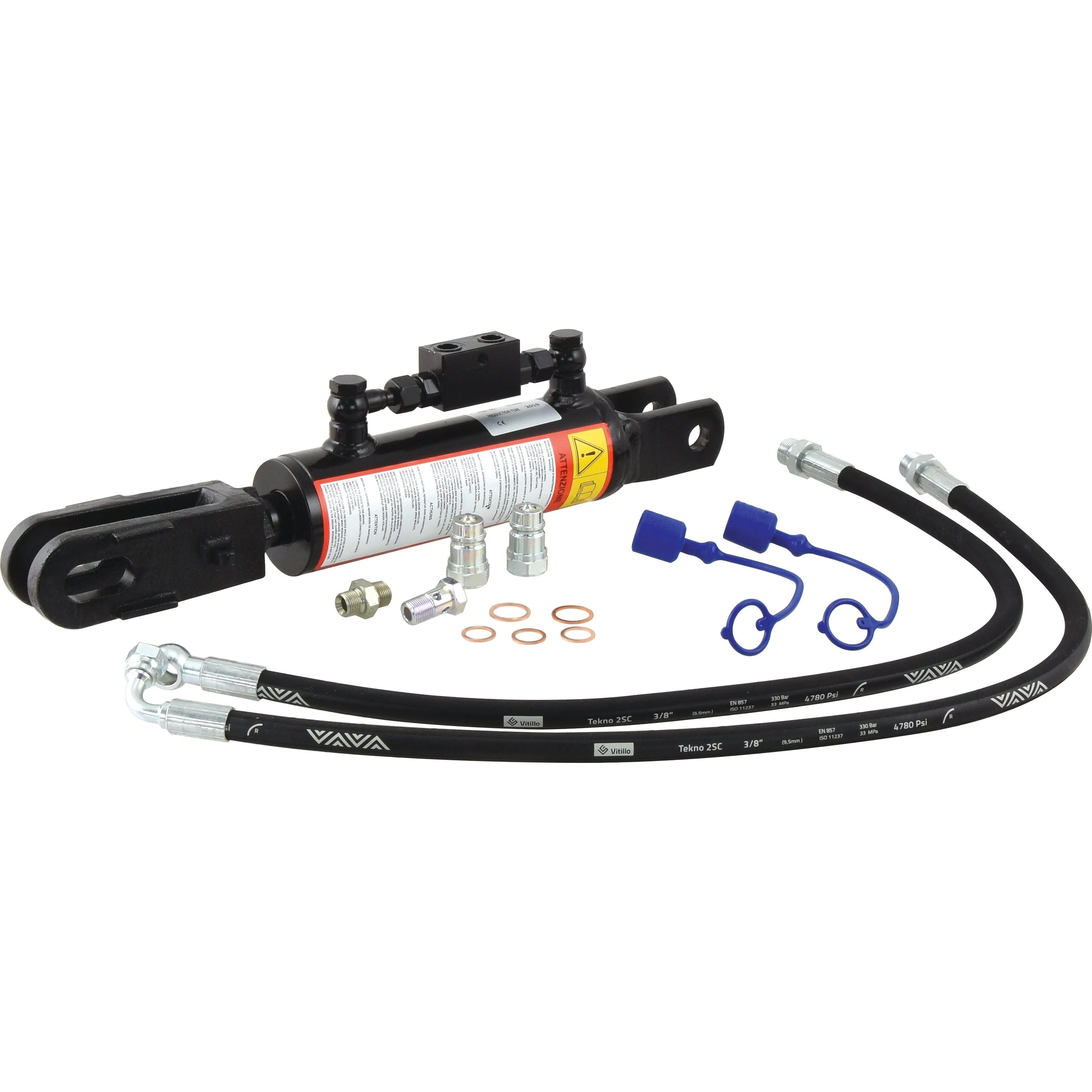

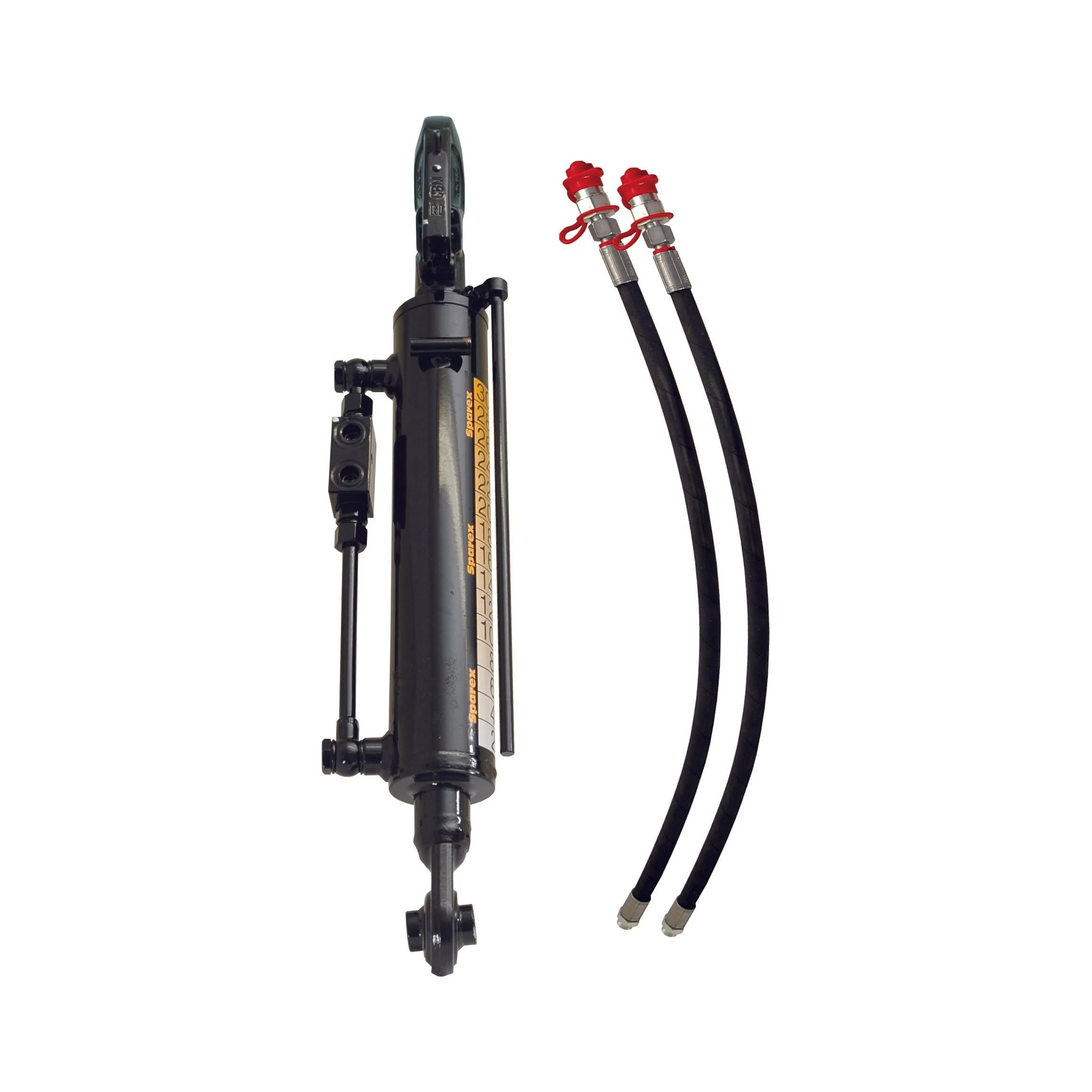

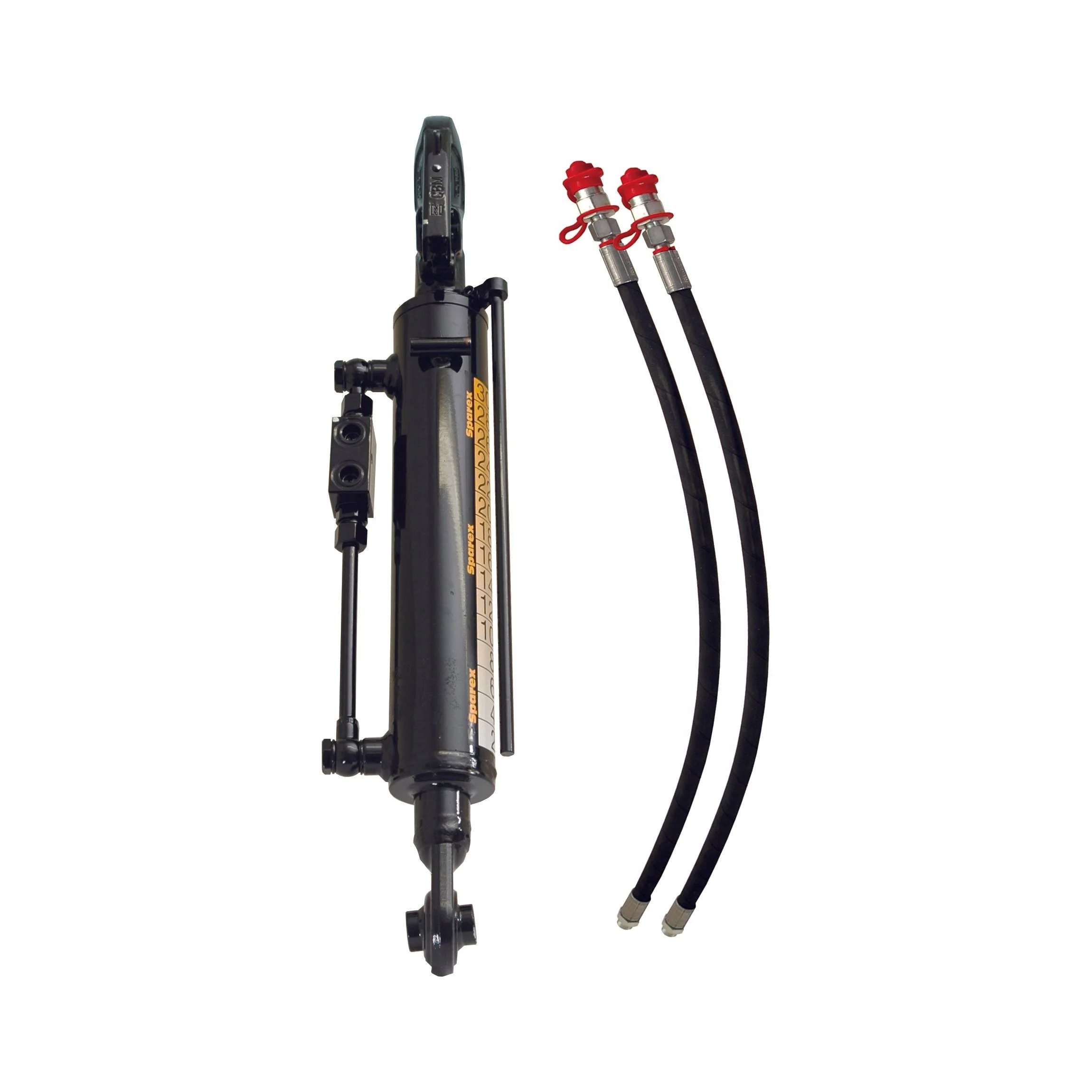

Hydraulic Levelling Box - Supplied with Hoses

Enhance your agricultural machinery with the Hydraulic Levelling Box from Sparex. Designed for optimal performance, this hydraulic leveler features a minimum length of 490mm and a maximum length of 628mm. The internal widths measure 40mm at the top and 28mm at the bottom, while the external widths are 64mm at the top and 52mm at the bottom.

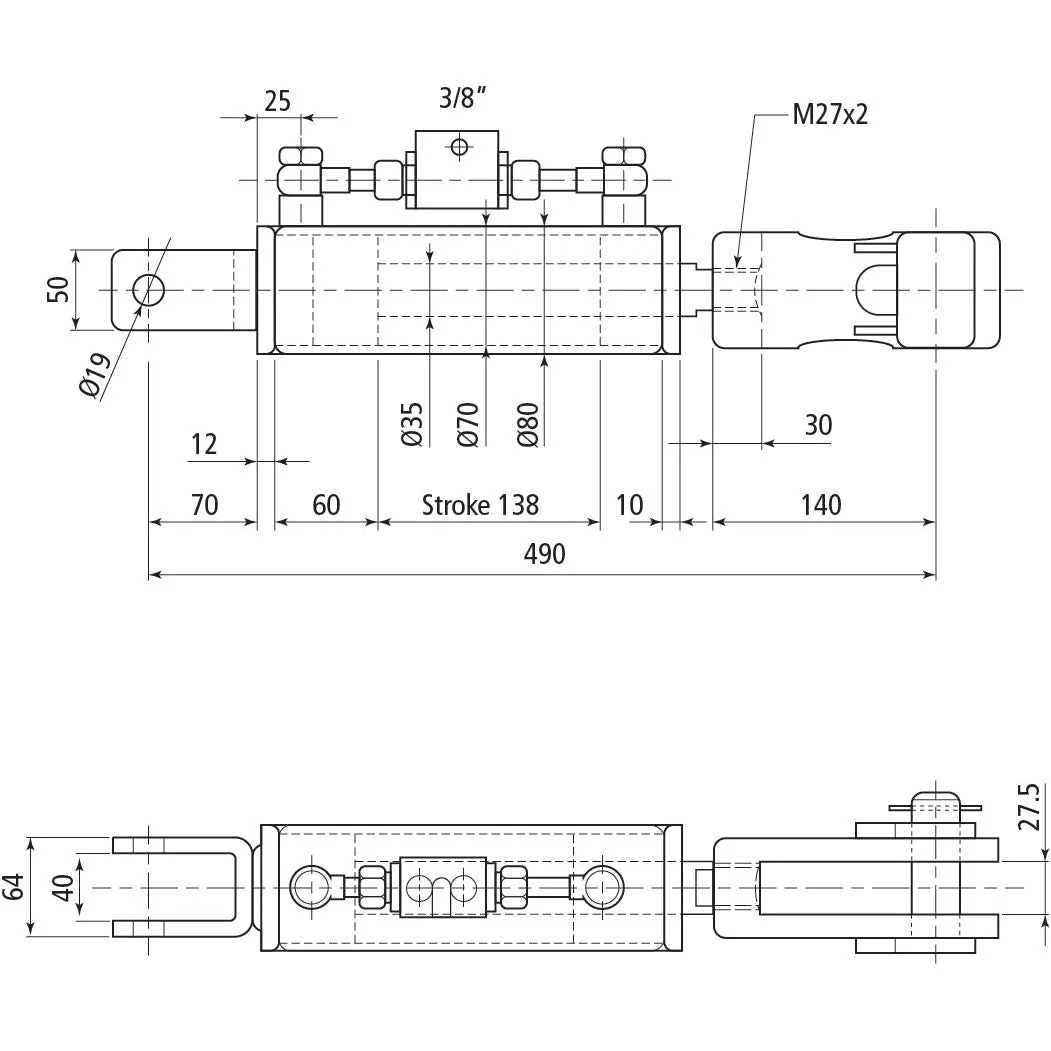

Product Specifications

• Brand: Sparex
• Check Valve Position: Top
• Cylinder Bore: 70mm
• End Fittings A: Fork Hole Ø 19mm
• End Fittings B: Fork Hole Ø 22x48mm
• Maximum Length: 628mm
• Minimum Length: 490mm
• Related Products: 33137, 33144
• Rod Diameter: 35mm
• Supplied with: Hoses
• Tariff Code: 8412212090
• Width External: 64mm Top & 52mm Bottom
• Width Internal: 40mm Top & 28mm Bottom

Compatibility Information

This hydraulic levelling box is suitable for:

• Case IH / International Harvester: FARMALL 55C, FARMALL 65C, FARMALL 75C
• Ford / New Holland: T4.55 - POWERSTAR, T4.65 - POWERSTAR, T4.75 - POWERSTAR

Manufacturer Information

Compatible with the following OEM part numbers:

• Ford / New Holland: 47385644, 84497524, 84497531

Upgrade your machinery with the reliable and efficient Hydraulic Levelling Box from Sparex, ensuring smooth operation and enhanced performance in your agricultural tasks.
