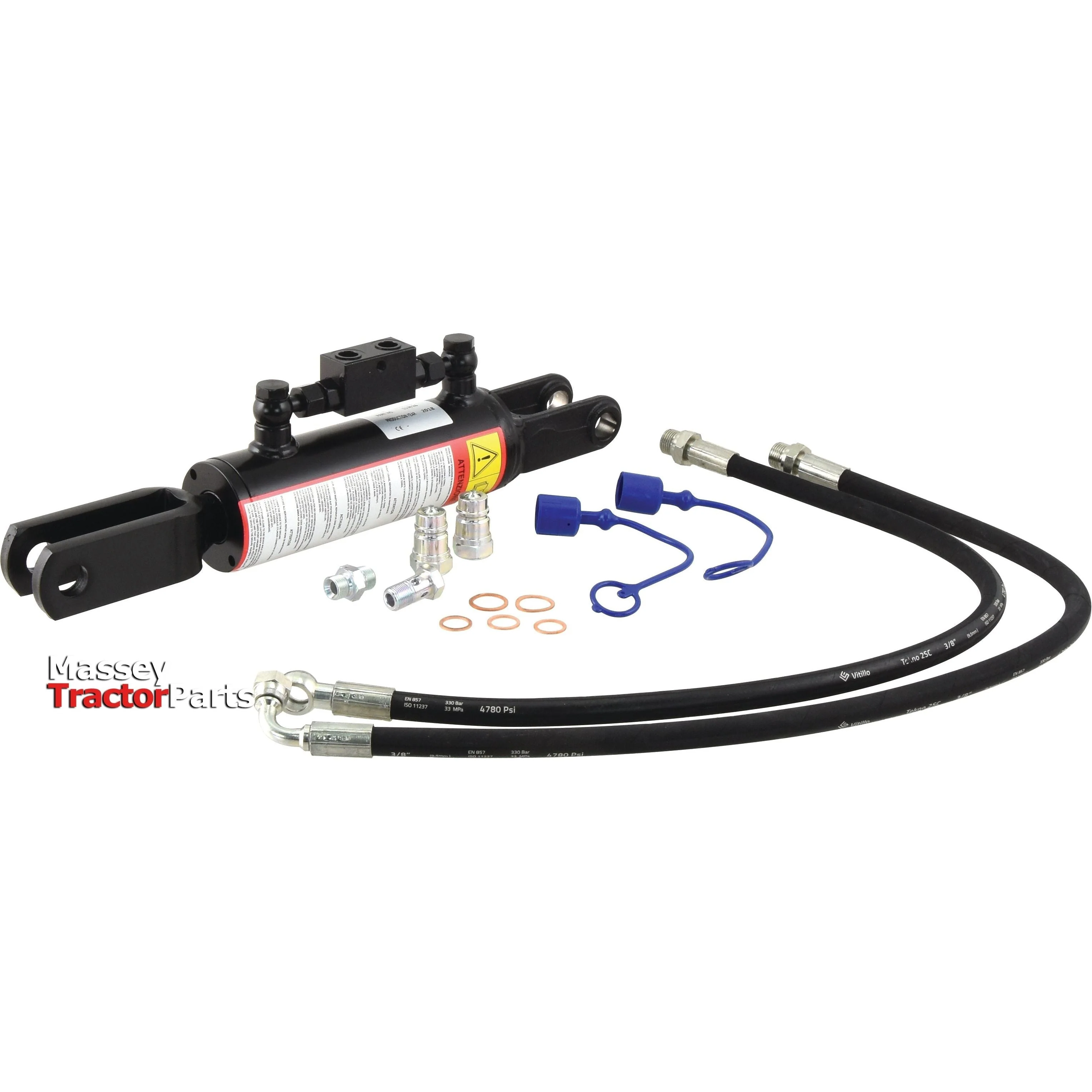

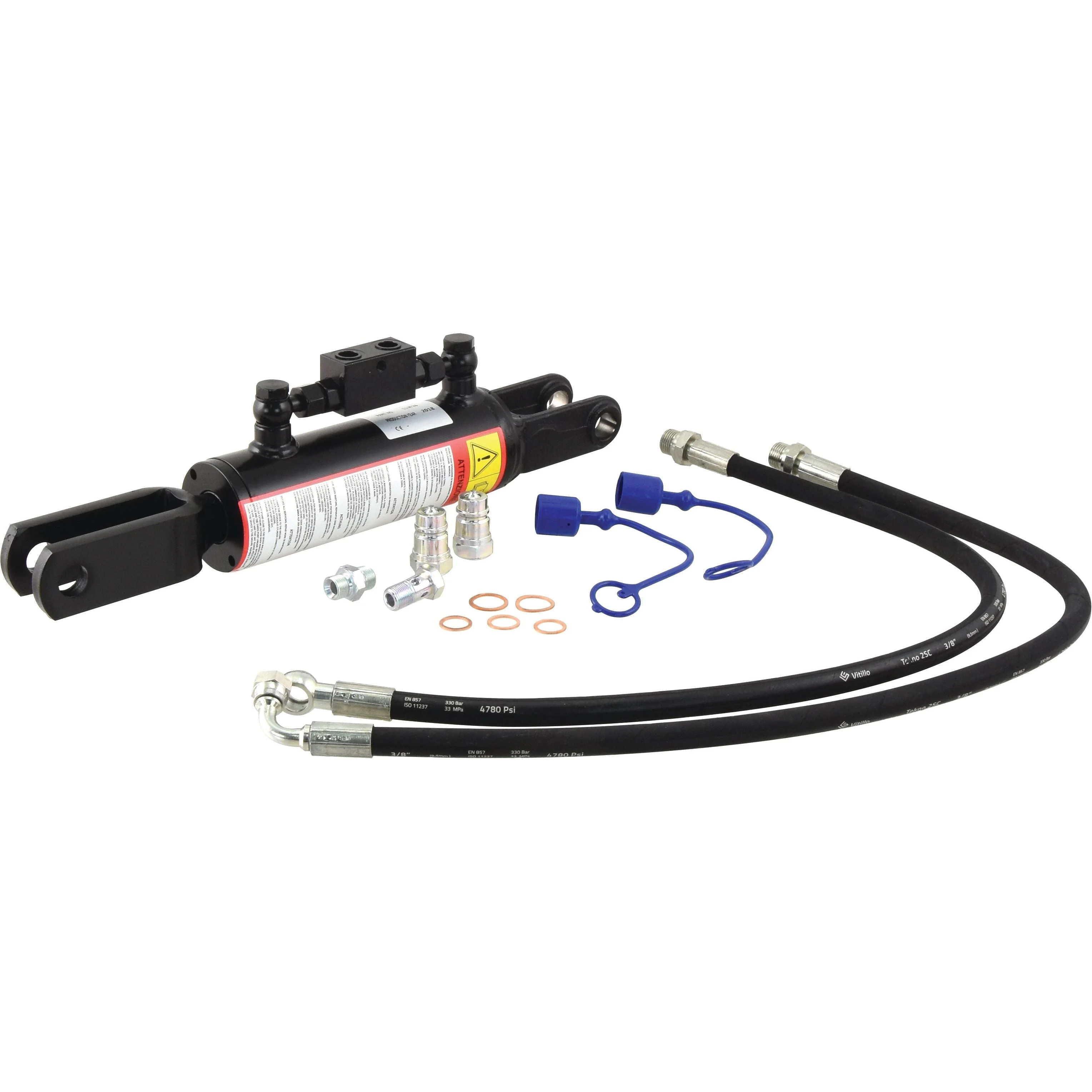

Hydraulic Levelling Box - Sparex Part No. S.113926

Enhance your agricultural machinery with the Hydraulic Levelling Box from Sparex. Designed for optimal performance, this hydraulic leveler is equipped with hoses and features a robust construction to meet your farming needs.

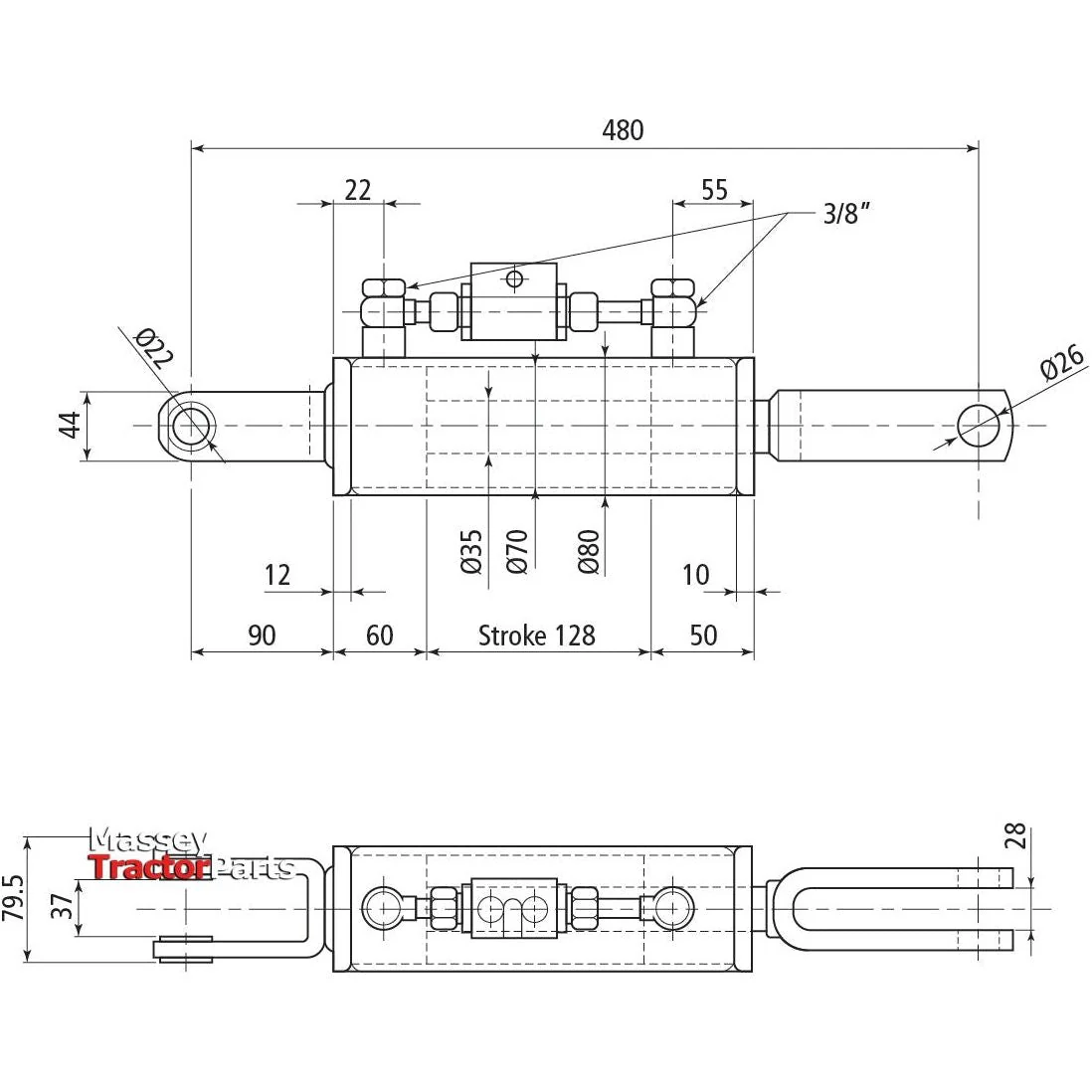

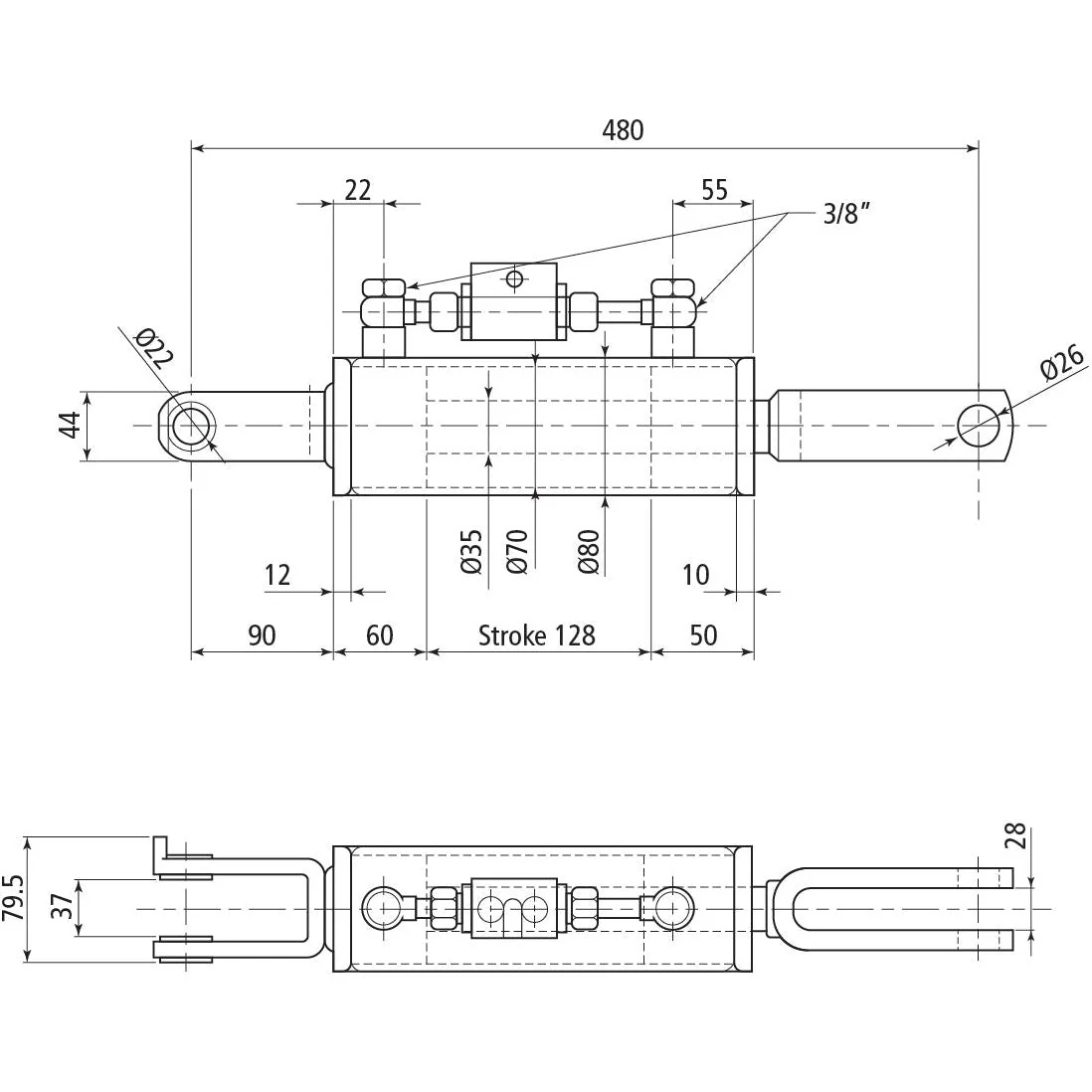

Product Specifications

• Brand: Sparex
• Check Valve Position: Top
• Cylinder Bore: 70 mm
• End Fittings A: Fork Hole Ø 22 mm
• End Fittings B: Fork Hole Ø 22 mm
• Maximum Length: 608 mm
• Minimum Length: 480 mm
• Related Products: 33137, 33144
• Rod Diameter: 35 mm
• Supplied with: Hoses
• Tariff Code: 8412212090
• Width External: 75 mm (Top) & 59 mm (Bottom)
• Width Internal: 37 mm (Top) & 28 mm (Bottom)

Dimensions

• Width External (inches): 2 61/64 (Top) & 2 21/64 (Bottom)
• Width Internal (inches): 1 29/64 (Top) & 1 7/64 (Bottom)

Compatibility Information

This hydraulic levelling box is suitable for various Ford / New Holland models, including:

• TK4.100F
• TK4.100N
• TK4.100V
• TK4.80F
• TK4.80N
• TK4.80V
• TK4.90F
• TK4.90N
• TK4.90V
• TK4020
• TK4020F
• TK4020V
• TK4030
• TK4030F
• TK4030V
• TK4040
• TK4040M
• TK4050
• TK4050M
• TK4060
• TK70FA
• TK70VA
• TK75FA
• TK75MA
• TK75VA
• TK90A

Manufacturer Information

Compatible with OEM part numbers: Ford / New Holland 87726378, 87726380, 5198771.
