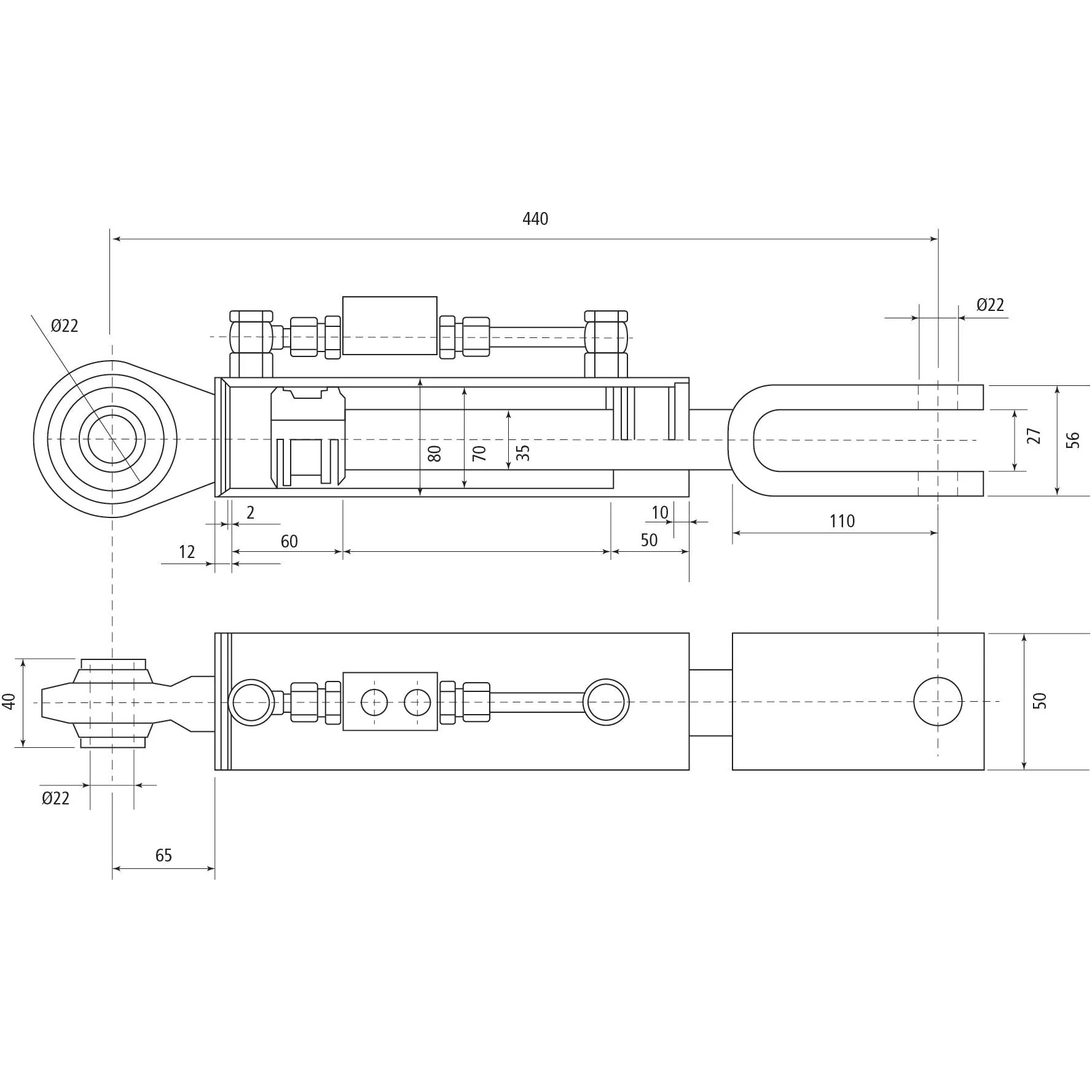

Hydraulic Levelling Box (Supplied with: Hoses) - Ball Ø 22mm - Fork Hole Ø 22mm - Min. Length: 440mm, Cylinder Bore: 70mm. | Sparex Part No.S.153733

This Sparex Hydraulic Levelling Box is a high-quality replacement part designed for use with a variety of Kubota models. It features a minimum length of 440mm and a maximum length of 540mm, with an internal width of 27mm and an external width of 56mm. This box is supplied with hoses for easy installation.

Product Specifications

• Brand: Sparex
• Check Valve Position: Top
• Cylinder Bore (mm): 70
• End Fittings A: Ball Ø 22mm
• End Fittings B: Fork Hole Ø 22mm
• Maximum Length (mm): 540
• Minimum Length (mm): 440
• Related products: 33137, 33144
• Rod Ø (mm): 35

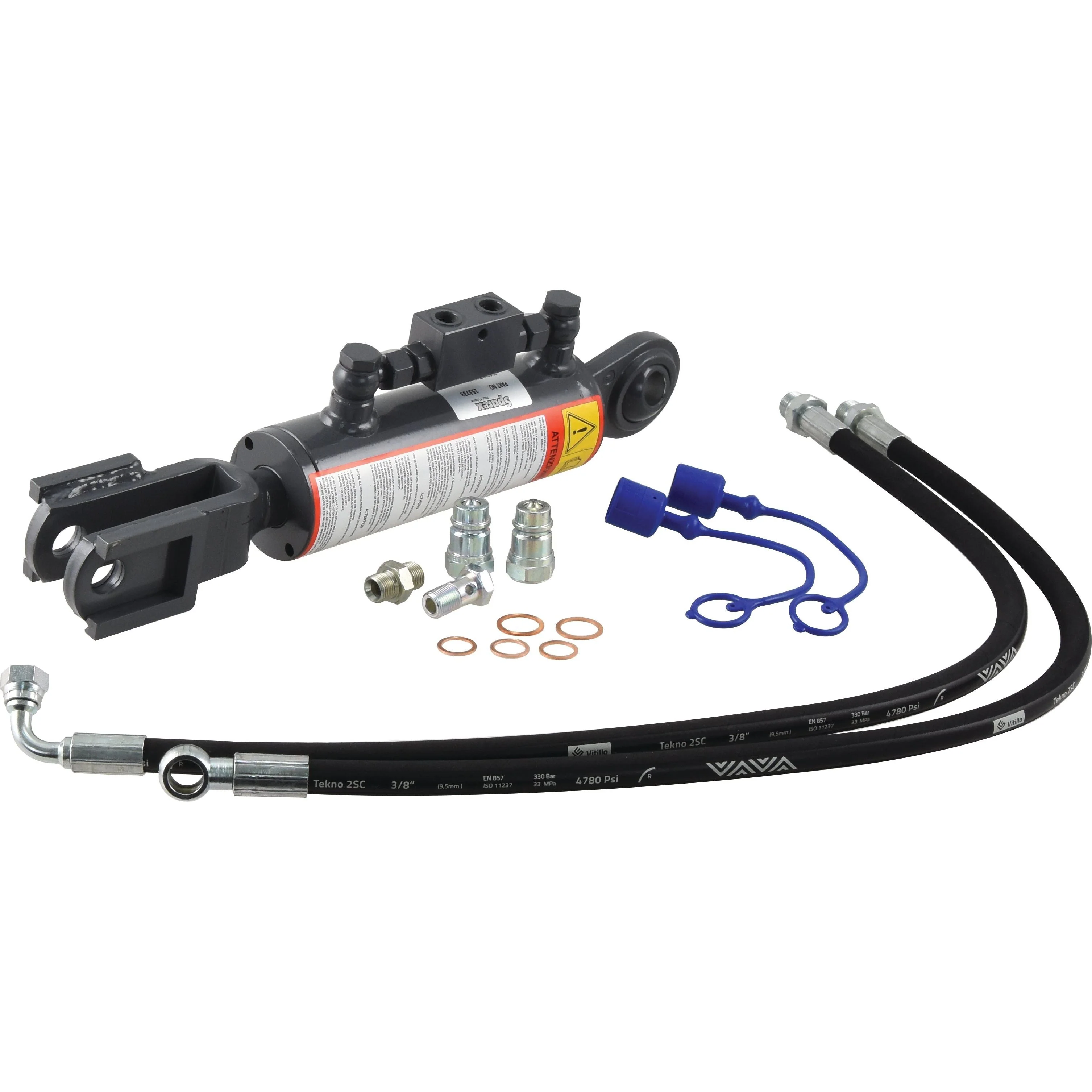

• Supplied with: Hoses
• Tariff Code: 8412212090
• Width External (mm): 56
• Width External ins: 2 13/64
• Width Internal (mm): 27
• Width Internal ins: 1 1/16

Suitable For

This Sparex Hydraulic Levelling Box is compatible with the following Kubota models:

• M5071N
• M5091N
• M5101N
• M6040 DTN
• M7040 DTN
• M7040 DTN-Q
• M8540 DTN
• M8540 DTN-Q
• M8540N
• M9540 DTN-Q
• M9540N

Manufacture Information

This product is not associated with any particular OEM part number.
