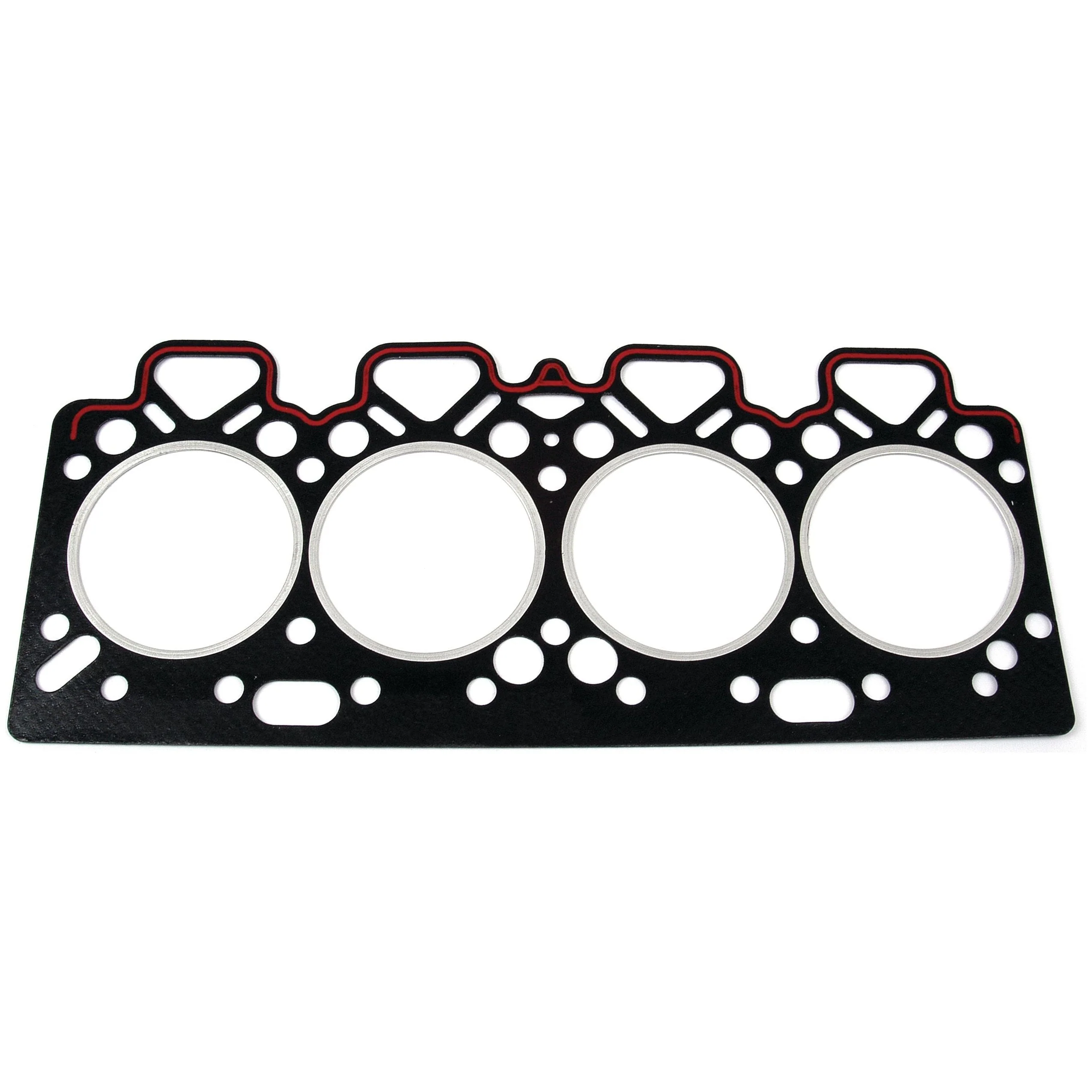

Head Gasket - 4 Cyl. (D39T, AT4.236, A4.236, A4 236, A4. 248, A4. 212, 1104C-44, 4.236) | Sparex Part No. S.40624

Asbestos Free

Product Specifications

• Bore Diameter: 3.87 in (98.4 mm)
• Brand: Sparex
• Cylinder Configuration: 4 Cyl.
• Engine Manufacturer: Perkins
• Compatible Engine Models: D39T, AT4.236, A4.236, A4 236, A4. 248, A4. 212, 1104C-44, 4.236
• Application: Head Gasket
• Inner Diameter: 105 mm
• Material: TSA - Mineral Fibre Board/Steel
• Notes: Asbestos Free
• Perkins Build List: LA (>U106654N), LD13264, 13516, 13518, 13584, 13675, 13750, 13754, 13851, 13863, 13883, 13892, 13894, 13932, 13938, 13945, 13954, 13955, 90012, 90047, 90052, 90055, 90056, LD20007, 20163, 20170, 20227, 20562, 20663, 20956, 20977, 21100, 21324, 21325, 21343, 21359, 21386, 21481, 21498, 21513, 21621, 21691, 21711, 21731, 21733, 21737, 21889, 22043, 22044, 22152, 22181, 22242, 22280, 22281, 22524, 22596, 22602, 22634, 22644, 22682, 22684, 22724, 22745, 22751, 22763, 22778, 22802, 22816, 22818, 22822, 33514, 50148, 70047, 70019, 70121, 70124, 70125, 70147, 70152, 70160, 80133, 80174, 80185, 80239, 80271, LF21274*, 21617*, 21622*, 21780*, 22503*, 50098*, 80172*, LG50067*, 50085*, 70097*, 70103*, 70127* (*=108197N>), LD21170, 22151, 22420, 22557, 22580, 70052, 70071, 70015, 80167, 80231, LF22801*, 80057*, LG70159*
• Related Products: 40449, 40450, 40451, 40452, 41939, 41955
• Size: 502 mm
• Tariff Code: 8484100090
• Thickness: 0.04 in (0.9 mm)

Suitable For

Allis Chalmers: 170, 175
Landini: 6500, 6530, 6550, 6560, 6830, 6840, 6860, 6870, 6880, 7000, 7500, 7530, 7550, 7560, 7830, 7860, 7870, 7880, 8000, 8500, 8530, 8550, 8560, 8830, 8860, 8870, 8880, 9880, ADVANTAGE 65, ADVANTAGE 75, ADVANTAGE 85, BLIZZARD 65, BLIZZARD 75, BLIZZARD 85, C6500, C6830, C7800, C7830, C8860, CF6830, REX 65, REX 75, TREKKER 65, TREKKER 70, TREKKER 75, TREKKER 85
Massey Ferguson: 1007, 165, 165 US BUILT, 168, 174, 174C, 175, 175 US BUILT, 178, 184, 185, 188, 194, 194C, 255, 261, 265, 273, 274, 274SK, 275, 283, 284, 285 (FR), 285 S (TR), 285 US BUILT, 290, 290 BRAZILIAN, 290 US BUILT, 293, 294, 294-4, 3050, 3060, 3065, 3070, 362, 365, 372, 373, 374, 375, 375E BRAZILIAN, 377, 382, 383, 384, 387, 390, 390E BRAZILIAN, 390T, 393, 394, 397, 398, 50B, 50C, 50H, 560, 565, 575, 590, 6000, 60H, 675, 690, 698T
Perkins: A4.212 (LA), A4.236 (LD), A4.248 (LF), A4.248.2 (LG)
TAFE: 8504
Volvo: 2200, 2204, 2250, 2254, T500

Manufacturer Information

Allis Chalmers: 3638845M1, 70257381
Case IH / International Harvester: 3118173R1
JCB: 02100117
Landini: 136812341, 136812349, 36812315, 36812341, 3681E021, 3638845M1, 36812326, 36812338, 36812342, 36812349, 136812338, 136812334, 36812333, 36812334, 3405357M4
Massey Ferguson: 3405357M4, 746342M1, 416342M1, 3638845M1, 3638845V1, 3638845Z1, 36812331, 36812333, 36812334, 36812336, LC229293, 3681E021, 36812326, 36812338, 36812342, 3638341M1, 3638845M1, 36812315, 36812341, 36812349, 36812351, 746342M1, 3405357M5
Perkins: 36812315, 36812341, 36812334, 3681E021, 36812333, 36812338, 36812349
