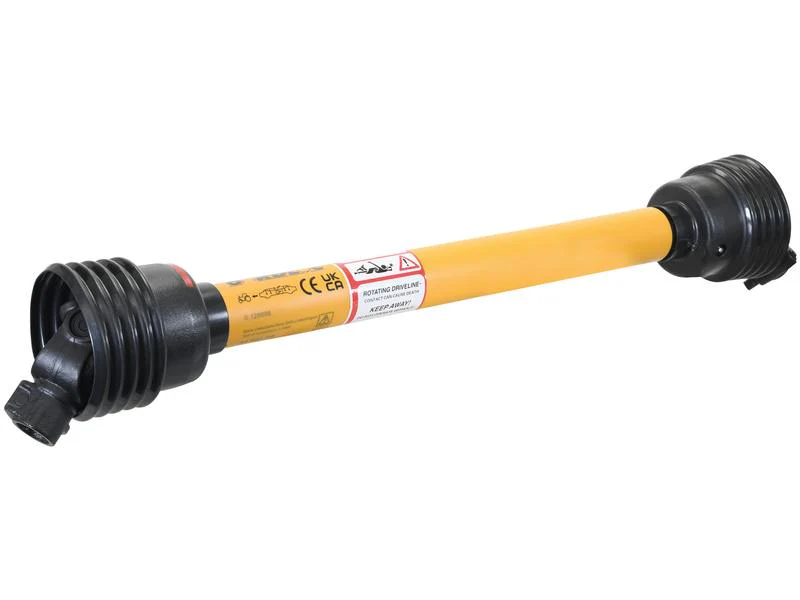

GARDLOC PTO Shaft - (Lz) Length: 880mm

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 880mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release to a 1 3/8'' x 6 Spline Shear Bolt Limiter.

Key Features:

• Alternative to: 164285
• Brand: GARDLOC
• Clutch Setting: 1600 Nm
• Guard Type: Gardloc
• HP Rating @ 540 RPM: 35 HP
• HP Rating @ 1000 RPM: 53 HP
• HP Rating Range @ 540 RPM: up to 54 HP
• Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
• Italian Series: AB4/A4
• Kilowatt Power Rating @ 540 RPM: 26 kW
• Kilowatt Power Rating @ 1000 RPM: 39 kW
• Total Closed Length: 1095 mm
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Triangle
• Universal Joint Dimensions: 27 x 74.5 mm
• Torque: 335 - 1240 Nm
• Torque (Nm): 460
• Shearbolt Clutch Bolt Ø: 8 mm
• Shearbolt Clutch Radius: 55 mm
• Tube Ref: 12507/12508
• Replacement Guard: S.168310
• Related Products: 166692
• Tariff Code: 8483908990

This GARDLOC PTO Shaft is an essential component for your agricultural machinery, ensuring reliable power transfer and efficiency. With its robust design and compatibility with the Italian Series AB4/A4, it is the perfect choice for your needs.

Supplier: Sparex | SKU: SP-128688
