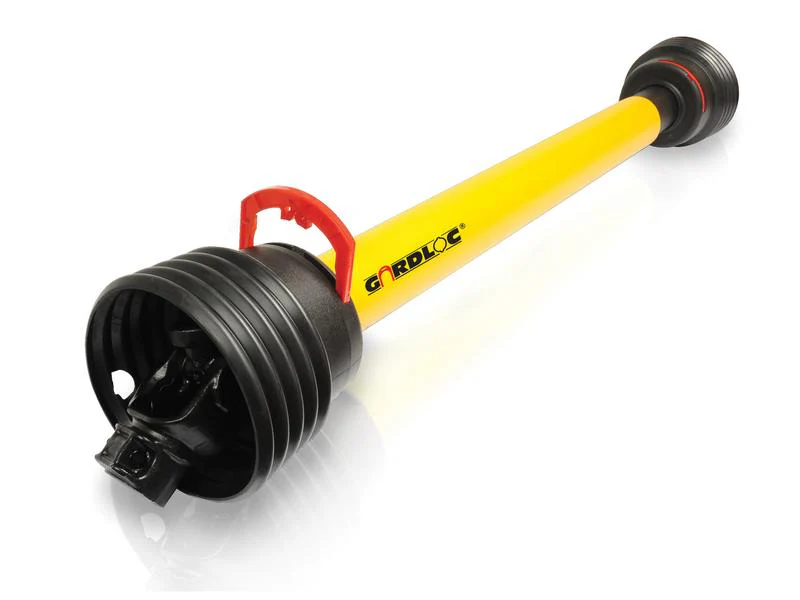

GARDLOC PTO Shaft - (Lz) Length: 860mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128690

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for durability and efficiency, this PTO shaft is an excellent alternative to part number 164290.

Key Features:

• Brand: GARDLOC
• Guard Type: Gardloc
• HP Rating: 47 HP @ 540 RPM, 75 HP @ 1000 RPM
• HP Rating Range: Up to 54 HP @ 540 RPM
• Kilowatt Power Rating: 35 kW @ 540 RPM, 55 kW @ 1000 RPM
• Lz Length: 860 mm
• Total Closed Length: 1082 mm
• Torque: 620 Nm (Range: 335 - 1240 Nm)
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Triangle
• Universal Joint Dimensions: 30.2 x 79.4 mm
• Italian Series: AB5/A5
• PTO Series: AB5/A5
• Tube Reference: 12509/12510
• Replacement Guard: S.168312
• Related Products: 166692
• Tariff Code: 8483908990

This GARDLOC PTO Shaft is engineered to meet the demands of various agricultural applications, ensuring optimal performance and longevity. Whether you're replacing an old shaft or upgrading your equipment, this product is designed to fit seamlessly into your setup.

For more information or to purchase, please refer to the Sparex part number: S.128690.
