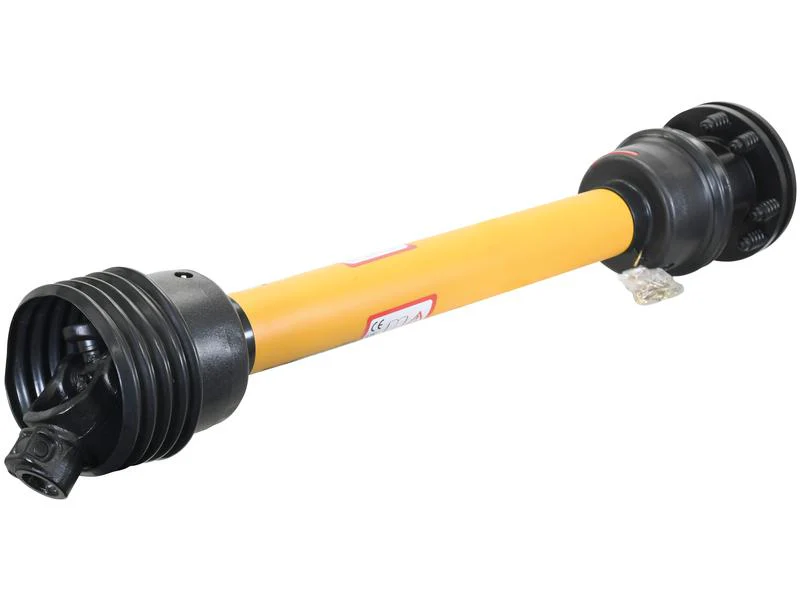

GARDLOC PTO Shaft - 860mm Length

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 860mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release (Q.R.) to a 1 3/8'' x 6 Spline Friction Disc Clutch.

Key Specifications:

• Brand: GARDLOC
• Alternative to: 164305
• Clutch Setting: 1300 Nm
• Guard Type: Gardloc
• HP Rating @ 540 RPM: 64 HP
• HP Rating @ 1000 RPM: 83 HP
• HP Rating Range @ 540 RPM: 55 to 119 HP
• Kilowatt Power Rating @ 540 RPM: 47 kW
• Kilowatt Power Rating @ 1000 RPM: 61 kW
• Number of Discs: 2
• PTO Series: AB6/A6
• Torque: 335 - 1240 Nm
• Total Closed Length: 1138 mm
• Tube Profile: Triangle
• Universal Joint Dimensions: 30.2 x 92 mm
• Replacement Guard: S.168312
• Tariff Code: 8483908990
• Tube Reference: 12509/12512

This PTO shaft is part of the Italian Series: AB6/A6 and is engineered for reliability and efficiency. Whether you're replacing an old part or upgrading your equipment, the GARDLOC PTO Shaft is the perfect choice for your agricultural needs.

Supplier: Sparex | SKU: SP-128704
