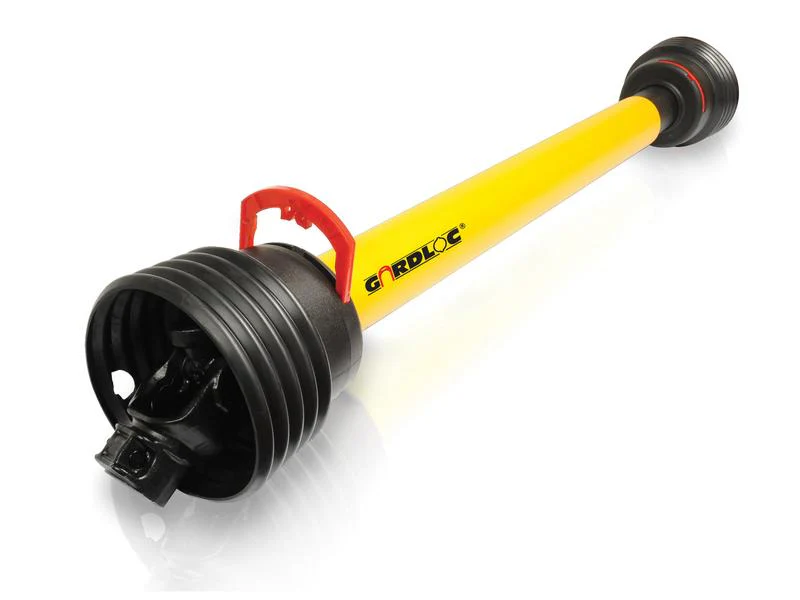

GARDLOC PTO Shaft - (Lz) Length: 710mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128713

Alternative Part Numbers: 39001, 164261

Brand: GARDLOC

German Series: AW10/W2100

Guard Type: Gardloc

Performance Specifications

• HP Rating @ 540RPM: 16 HP
• HP Rating @ 1000RPM: 24 HP
• HP Rating Range @ 540RPM: Up to 54 HP
• Kilowatt Power Rating @ 540RPM: 12 kW
• Kilowatt Power Rating @ 1000RPM: 24 kW
• Torque: 335 - 1240 Nm

Dimensions

• Lz Length: 710 mm
• Total Closed Length: 896 mm
• Universal Joint Dimensions: 22 x 54.8 mm

Connection Details

• Implement End: 1 3/8'' x 6 Spline Q.R.
• Tractor End: 1 3/8'' x 6 Spline Q.R.

Additional Information

• PTO Series: AW10/W2100
• Tube Profile: Lemon
• Tube Reference: Ooa/Oa
• Related Products: 166692
• Replacement Guard: S.168310
• Tariff Code: 8483908990

Supplier: Sparex

Product Type: Shaft

Product SKU: SP-128713

OEM Fitment Information: This product is not associated with any particular OEM part number.

Machine Fitment Information: This product is not associated with any particular make or model.
