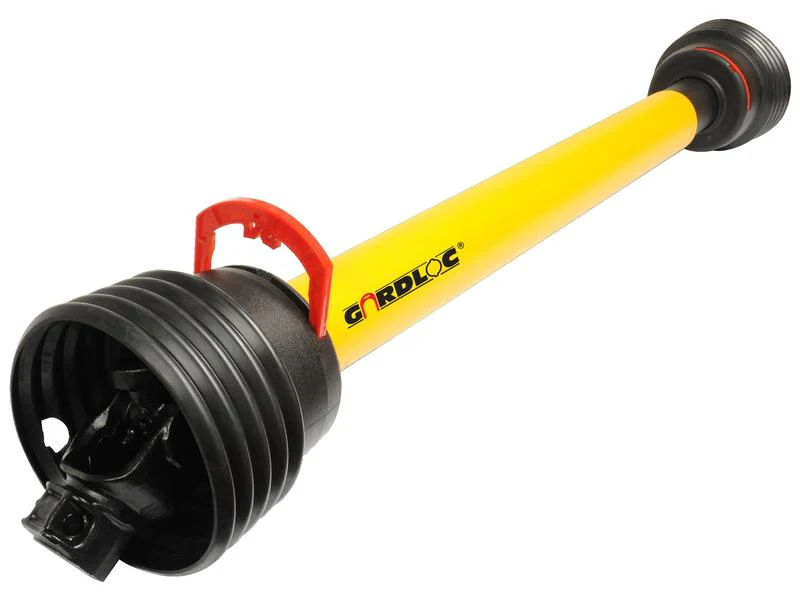

GARDLOC PTO Shaft - (Lz) Length: 710mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128681

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for durability and efficiency, this PTO shaft is compatible with various implements and is an excellent alternative to part numbers 128682 and 164282.

Key Features:

• Brand: GARDLOC
• Guard Type: Gardloc
• HP Rating: 35 HP @ 540 RPM, 53 HP @ 1000 RPM
• HP Rating Range: Up to 54 HP @ 540 RPM
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Italian Series: AB4/A4
• Kilowatt Power Rating: 26 kW @ 540 RPM, 39 kW @ 1000 RPM
• Lz Length: 710 mm
• PTO Series: AB4/A4
• Torque: 335 - 1240 Nm (460 Nm nominal)
• Total Closed Length: 926 mm
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Triangle
• Universal Joint Dimensions: 27 x 74.5 mm

Additional Information:

• Replacement Guard: S.168310
• Related Products: 166692
• Tariff Code: 8483908990
• Tube Reference: 12507/12508

Whether you're looking to replace an old shaft or upgrade your equipment, the GARDLOC PTO Shaft is engineered to meet your needs with precision and reliability. Enhance your agricultural operations with this top-quality product from Sparex.
