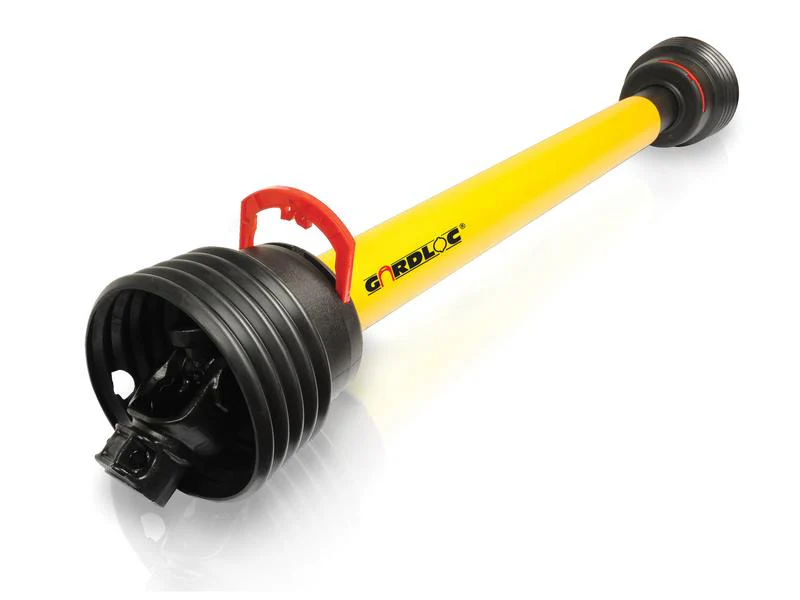

GARDLOC PTO Shaft - (Lz) Length: 560mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R.

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for the German Series AW21/W2300, this PTO shaft is engineered to deliver exceptional power and efficiency.

• Brand: GARDLOC
• Alternative to: 39008, 164263
• Guard Type: Gardloc
• HP Rating: 35 HP @ 540 RPM, 53 HP @ 1000 RPM
• HP Rating Range @ 540 RPM: Up to 54 HP
• Kilowatt Power Rating: 26 kW @ 540 RPM, 53 kW @ 1000 RPM
• Lz Length: 560 mm
• Total Closed Length: 776 mm
• Torque: 335 - 1240 Nm (780 Nm nominal)
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• PTO Series: AW21/W2300
• Tube Profile: Lemon
• Universal Joint Dimensions: 27 x 74.5 mm
• Tube Ref: 0v/1
• Replacement Guard: S.168310
• Related Products: 166692
• Tariff Code: 8483908990

Whether you're replacing an old shaft or upgrading your equipment, the GARDLOC PTO Shaft is designed to meet your needs with precision and durability. Trust in GARDLOC for quality and performance in every application.
