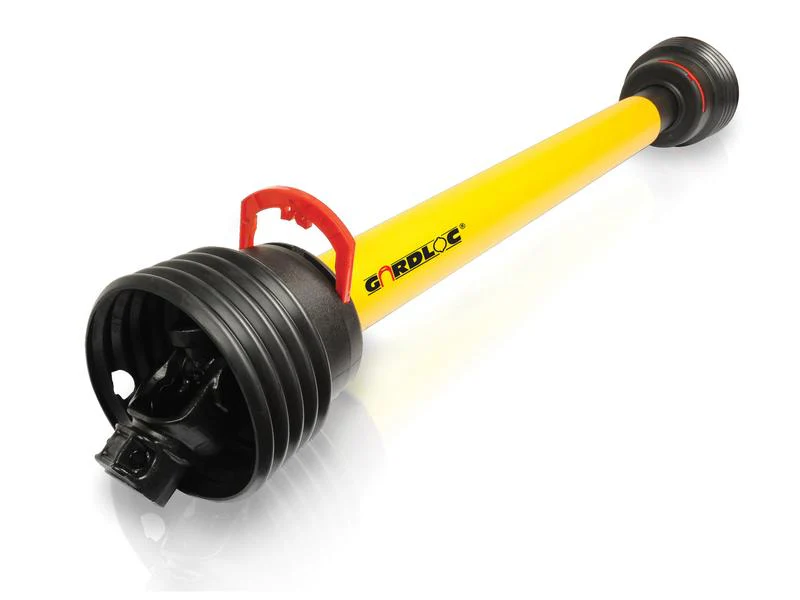

GARDLOC PTO Shaft - (Lz) Length: 560mm

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 560mm and is equipped with 1 3/8'' x 6 Spline Q.R. connections on both the implement and tractor ends, ensuring a secure fit for your agricultural machinery.

Key Specifications:

• Alternative to: 164279
• Brand: GARDLOC
• Guard Type: Gardloc
• HP Rating @ 540RPM: 30 HP
• HP Rating @ 1000RPM: 50 HP
• HP Rating Range @ 540RPM: Up to 54 HP
• Kilowatt Power Rating @ 540RPM: 22 kW
• Kilowatt Power Rating @ 1000RPM: 37 kW
• PTO Series: AB3/A3
• Torque: 335 - 1240 Nm (390 Nm nominal)
• Total Closed Length: 768 mm
• Tube Profile: Triangle
• Universal Joint Dimensions: 27 x 70 mm
• Tube Ref: 12507/12508

Additional Information:

This product is not associated with any particular OEM part number, making it a versatile choice for various applications. The GARDLOC PTO Shaft is part of the Italian Series AB3/A3, ensuring compatibility with a range of machinery.

Related Products:

• Replacement Guard: S.168310
• Related Products: 166692

For reliable performance and exceptional quality, choose the GARDLOC PTO Shaft (SKU: SP-128678) for your agricultural needs.
