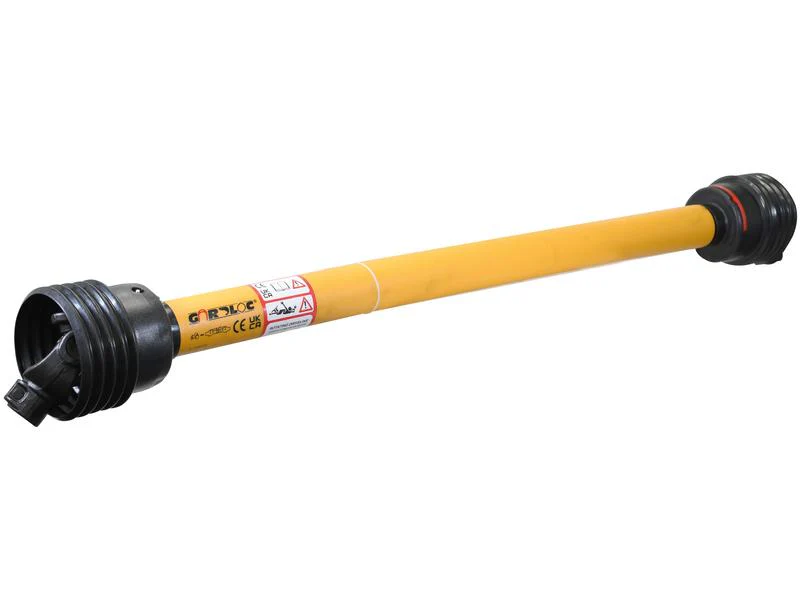

GARDLOC PTO Shaft - (Lz) Length: 1510mm

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 1510mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release to a 1 3/8'' x 6 Spline Shear Bolt Limiter.

Key Features:

• Brand: GARDLOC
• Alternative to: 164303
• Clutch Setting: 2500 Nm
• Guard Type: Gardloc
• HP Rating @ 540 RPM: 64 HP (Range: 55 to 119 HP)
• Kilowatt Power Rating @ 540 RPM: 47 kW
• Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
• Italian Series: AB6/A6
• Torque: 335 - 1240 Nm (830 Nm nominal)
• Total Closed Length: 1765 mm
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Triangle
• Universal Joint Dimensions: 30.2 x 92 mm
• Shearbolt Clutch Bolt Diameter: 10 mm
• Shearbolt Clutch Radius: 55 mm
• Tube Reference: 12509/12512
• Related Products: 166692
• Tariff Code: 8483908990

This GARDLOC PTO Shaft is engineered for reliability and efficiency, making it an essential component for your agricultural machinery. Whether you're replacing an old shaft or upgrading your equipment, this product ensures a perfect fit and superior performance.

Supplier: Sparex | SKU: SP-166273
