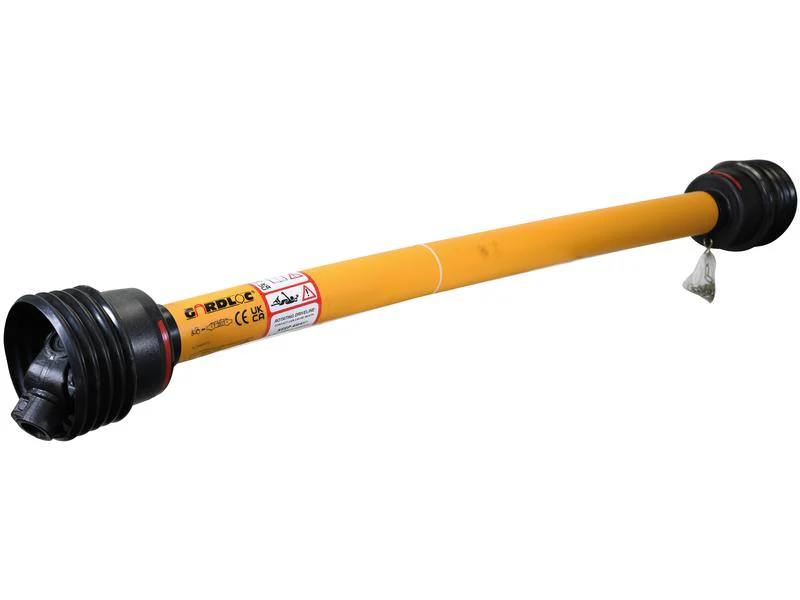

GARDLOC PTO Shaft - (Lz) Length: 1510mm

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 1510mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release to a 1 3/8'' x 6 Spline Shear Bolt Limiter.

Key Features:

• Alternative to: 164297
• Brand: GARDLOC
• Clutch Setting: 1600 Nm
• Guard Type: Gardloc
• HP Rating @ 540RPM: 47 HP (up to 54 HP)
• Kilowatt Power Rating @ 540RPM: 35 kW
• Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
• Italian Series: AB5/A5
• Torque Range: 335 - 1240 Nm (Max Torque: 620 Nm)
• Total Closed Length: 1732 mm
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Triangle
• Universal Joint Dimensions: 30.2 x 79.4 mm
• Shearbolt Clutch Bolt Diameter: 8 mm
• Shearbolt Clutch Radius: 55 mm
• Tube Reference: 12509/12510
• Tariff Code: 8483908990

Compatibility:

This product is not associated with any particular OEM part number or specific make or model, making it a versatile choice for various applications.

Related Products:

Explore additional options with our related product: 166692.

Upgrade your machinery with the reliable and efficient GARDLOC PTO Shaft today!
