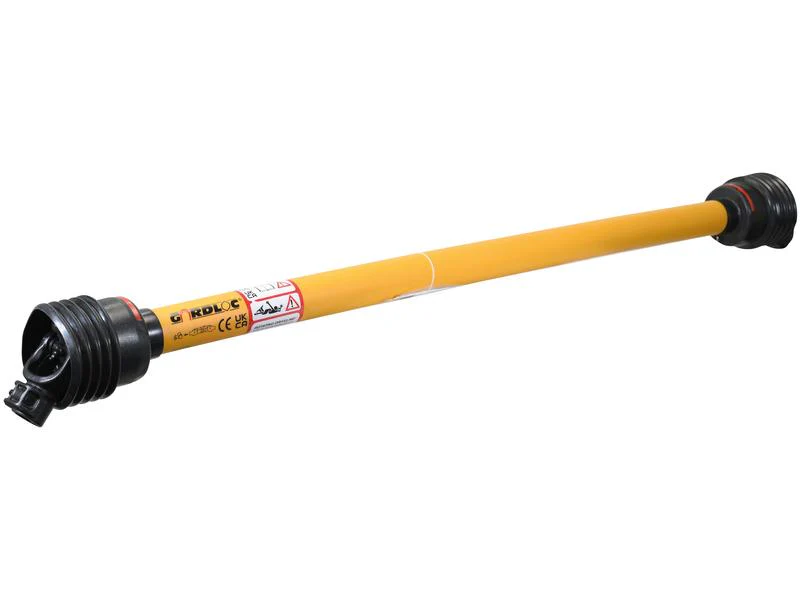

GARDLOC PTO Shaft - (Lz) Length: 1510mm

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 1510mm and connects with a 1 3/8'' x 6 Spline Q.R. to a 1 3/8'' x 6 Spline Shear Bolt Limiter.

Key Features:

• Alternative to: 162403
• Brand: GARDLOC
• Clutch Setting: 1600 Nm
• Guard Type: Gardloc
• HP Rating @ 540RPM: 35 HP (Rating Range: up to 54 HP)
• Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
• Italian Series: AB4/A4
• Kilowatt Power Rating @ 540RPM: 26 kW
• PTO Series: AB4/A4
• Torque: 335 - 1240 Nm (Max Torque: 460 Nm)
• Total Closed Length: 1725 mm
• Tractor End: 1 3/8'' x 6 Spline Q.R. Tube Profile: Triangle
• Universal Joint Dimensions: 27 x 74.5 mm
• Shearbolt Clutch Bolt Diameter: 8 mm
• Shearbolt Clutch Radius: 55 mm
• Tube Reference: 12507/12508
• Tariff Code: 8483908990

Compatibility:

This product is not associated with any particular OEM part number or specific make or model, making it a versatile choice for various applications.

Related Products:

Explore additional options with our related product: 166692.

Upgrade your machinery with the reliable and efficient GARDLOC PTO Shaft today!
