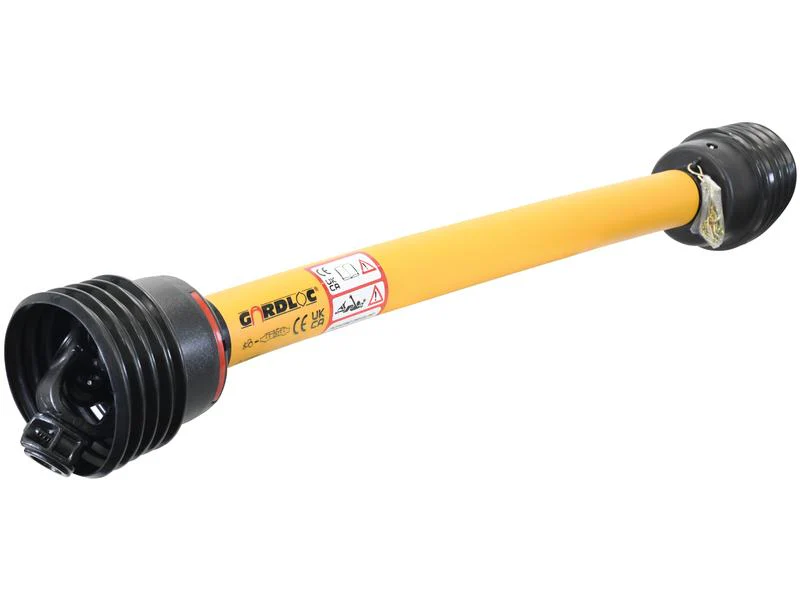

GARDLOC PTO Shaft - (Lz) Length: 1210mm

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for durability and efficiency, this shaft features a length of 1210mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release to a 1 3/8'' x 6 Spline Shear Bolt Limiter.

Key Specifications:

• Brand: GARDLOC
• Alternative to: 164296
• Clutch Setting: 2100 Nm
• Guard Type: Gardloc
• HP Rating @ 540 RPM: 47 HP
• HP Rating @ 1000 RPM: 75 HP
• HP Rating Range @ 540 RPM: Up to 54 HP
• Kilowatt Power Rating @ 540 RPM: 35 kW
• Kilowatt Power Rating @ 1000 RPM: 55 kW
• Torque: 335 - 1240 Nm
• Total Closed Length: 1432 mm
• Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Triangle
• Universal Joint Dimensions: 30.2 x 79.4 mm
• Shearbolt Clutch Bolt Diameter: 10 mm
• Shearbolt Clutch Radius: 46 mm
• Italian Series: AB5/A5
• PTO Series: AB5/A5
• Replacement Guard: S.168313
• Related Products: 166692
• Tariff Code: 8483908990

Whether you're looking to replace an existing shaft or upgrade your equipment, the GARDLOC PTO Shaft is engineered to meet the demands of modern farming. Its robust construction ensures longevity and reliability, making it an essential addition to your machinery.

Product Supplier: Sparex

Product SKU: SP-128692

Note: This product is not associated with any particular OEM part number or specific make or model.
