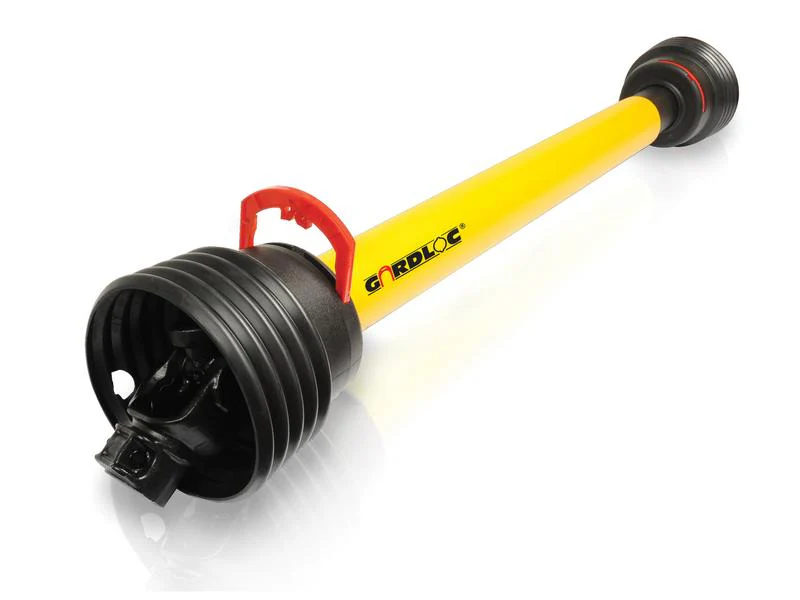

GARDLOC PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.166269

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for the German Series AW36/W2500, this PTO shaft is engineered to deliver exceptional power and efficiency.

• Alternative Part Numbers: 39018, 164269
• Brand: GARDLOC
• Guard Type: Gardloc
• HP Rating @ 540RPM: 90 HP
• HP Rating Range @ 540RPM: 55 to 119 HP
• Kilowatt Power Rating @ 540RPM: 66 kW
• Lz Length: 1210 mm
• PTO Series: AW36/W2500
• Related Products: 166692
• Tariff Code: 8483908990
• Torque: 335 - 1240 Nm (1175 Nm nominal)
• Total Closed Length: 1446 mm
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Star
• Tube Reference: S4/S5
• Universal Joint Dimensions: 36 x 89 mm

This GARDLOC PTO Shaft is not only compatible with various applications but also ensures optimal performance and durability. Upgrade your machinery with this essential component and experience the difference in efficiency and power delivery.
