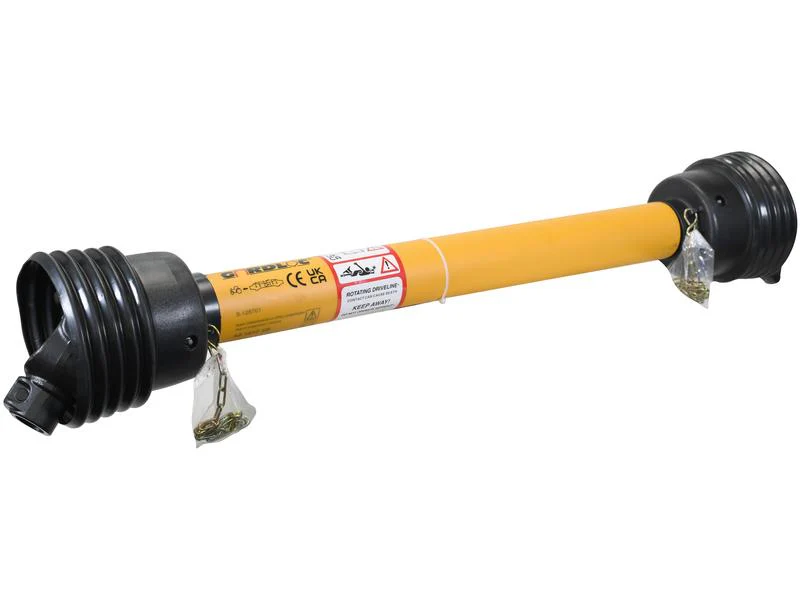

GARDLOC PTO Shaft - (Lz) Length: 1010mm

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 1010mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release to a 1 3/8'' x 6 Spline Shear Bolt Limiter.

Key Features:

• Alternative to: 162401
• Brand: GARDLOC
• Clutch Setting: 2500 Nm
• Guard Type: Gardloc
• HP Rating @ 540RPM: 64 HP
• HP Rating @ 1000RPM: 83 HP
• HP Rating Range @ 540RPM: 55 to 119 HP
• Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
• Italian Series: AB6/A6
• Kilowatt Power Rating @ 540RPM: 47 kW
• Kilowatt Power Rating @ 1000RPM: 61 kW
• PTO Series: AB6/A6
• Torque: 335 - 1240 Nm
• Total Closed Length: 1265 mm
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Triangle
• Universal Joint Dimensions: 30.2 x 92 mm
• Shearbolt Clutch Bolt Ø: 10 mm
• Shearbolt Clutch Radius: 55 mm
• Tariff Code: 8483908990
• Tube Ref: 12509/12512

Related Products:

• Replacement Guard: S.168313
• Related Product: 166692

Upgrade your machinery with the reliable and efficient GARDLOC PTO Shaft. Perfect for various applications, this shaft ensures high performance and compatibility with the Italian Series AB6/A6. Order now to enhance your equipment's capabilities!
