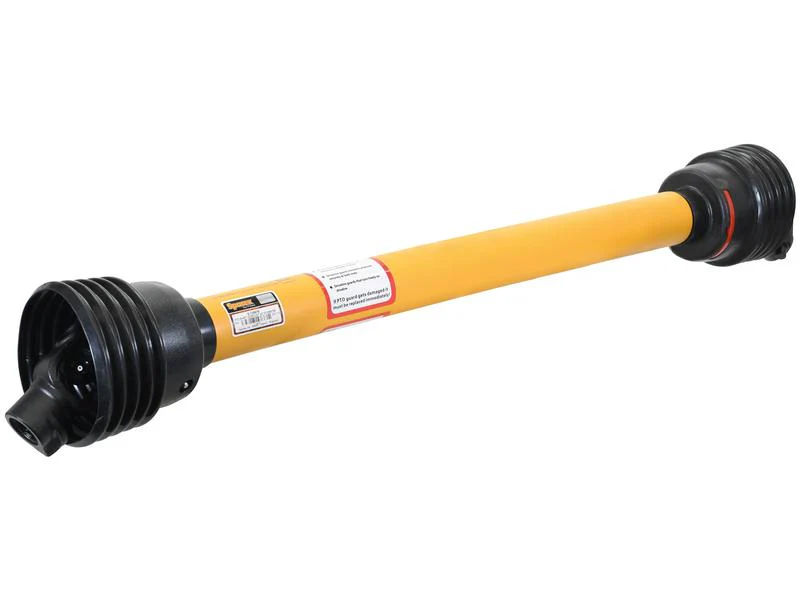

GARDLOC PTO Shaft - (Lz) Length: 1010mm

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 1010mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release to a 1 3/8'' x 6 Spline Shear Bolt Limiter.

Key Specifications:

• Alternative to: 164276
• Brand: GARDLOC
• Clutch Setting: 790 Nm
• Guard Type: Gardloc
• HP Rating @ 540 RPM: 21 HP
• HP Rating @ 1000 RPM: 40 HP
• HP Rating Range @ 540 RPM: Up to 54 HP
• Kilowatt Power Rating @ 540 RPM: 15 kW
• Kilowatt Power Rating @ 1000 RPM: 30 kW
• PTO Series: AB2/A2
• Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
• Torque: 210-334 Nm (270 Nm nominal)
• Total Closed Length: 1208 mm
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Triangle
• Universal Joint Dimensions: 23.8 x 61.2 mm
• Shearbolt Clutch Bolt Diameter: 6 mm
• Shearbolt Clutch Radius: 48 mm
• Tube Reference: 12504/12505
• Replacement Guard: S.168310
• Related Products: 166692
• Tariff Code: 8483908990

This GARDLOC PTO Shaft is an essential component for your agricultural machinery, ensuring reliable power transfer and efficiency. Upgrade your equipment with this robust and versatile shaft today!
