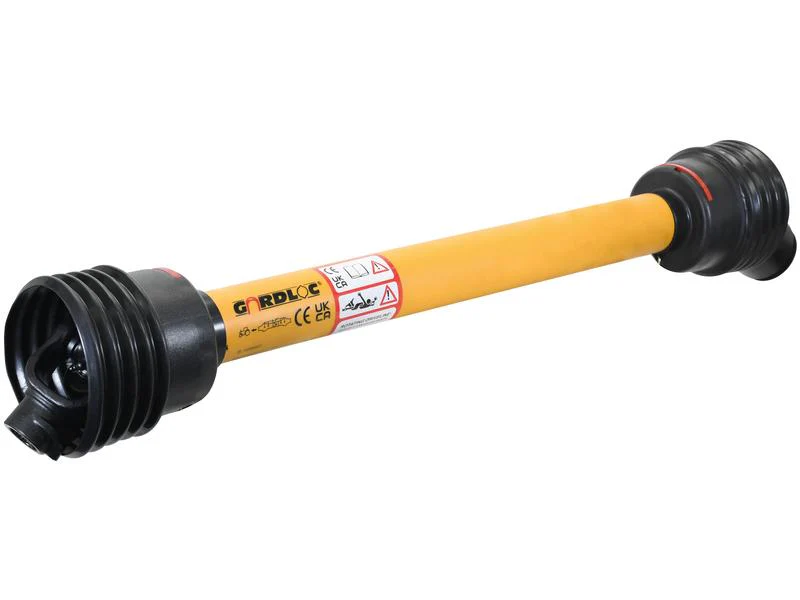

GARDLOC PTO Shaft - (Lz) Length: 1010mm

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 1010mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release to a 1 3/8'' x 6 Spline Ratchet Clutch.

Key Features:

• Brand: GARDLOC
• Clutch Setting: 900 Nm
• HP Rating:
  • At 540 RPM: 47 HP
  • At 1000 RPM: 75 HP
  • Range at 540 RPM: Up to 54 HP
• Kilowatt Power Rating:
  • At 540 RPM: 35 kW
  • At 1000 RPM: 55 kW
• Torque:
  • 620 Nm
  • Range: 335 - 1240 Nm
• Total Closed Length: 1285 mm
• Tube Profile: Triangle
• Type: 3 Row
• Universal Joint Dimensions: 30.2 x 79.4 mm

Compatibility:

This PTO shaft is part of the Italian Series AB5/A5 and is an alternative to part number 162398. It is not associated with any specific OEM part number or particular make or model.

Additional Information:

• Implement End: 1 3/8'' x 6 Spline Ratchet Clutch
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Replacement Guard: S.168312
• Related Products: 166692
• Tariff Code: 8483908990
• Tube Reference: 12509/12510

Upgrade your machinery with the reliable and efficient GARDLOC PTO Shaft today!
