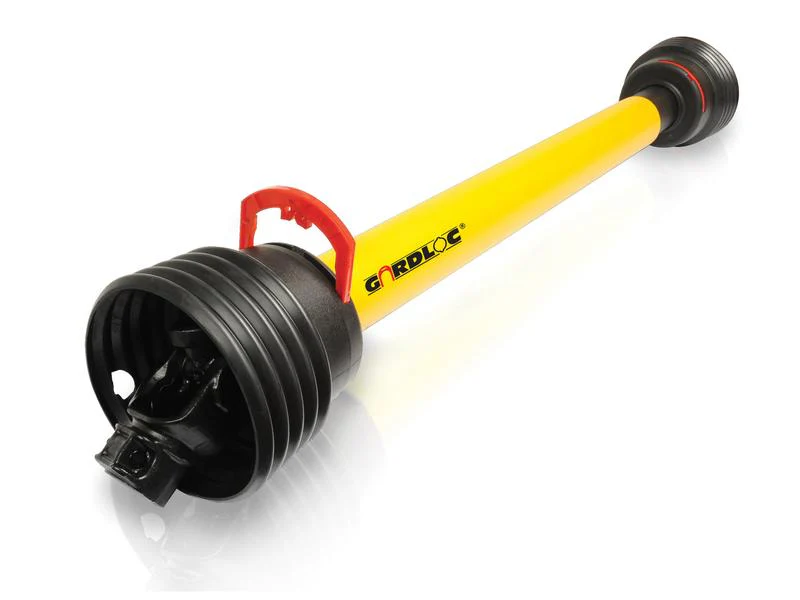

GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128719

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for the German Series AW35/W2400, this PTO shaft is engineered to deliver exceptional power and efficiency.

Key Features:

• Brand: GARDLOC
• Guard Type: Gardloc
• HP Rating: 53 HP @ 540 RPM, 83 HP @ 1000 RPM
• Kilowatt Power Rating: 39 kW @ 540 RPM, 83 kW @ 1000 RPM
• Torque Range: 335 - 1240 Nm
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Lz Length: 1010 mm
• Total Closed Length: 1232 mm
• Universal Joint Dimensions: 32 x 76 mm
• Tube Profile: Lemon
• Tube Reference: 1b/2a

Compatibility:

This PTO shaft serves as an alternative to part numbers 39014 and 164267, ensuring a perfect fit for your machinery. It is compatible with the PTO Series AW35/W2400 and is not associated with any specific OEM part number.

Additional Information:

• Related Products: 166692
• Replacement Guard: S.168313
• Tariff Code: 8483908990

Upgrade your equipment with the GARDLOC PTO Shaft, designed for durability and optimal performance in demanding agricultural applications.
