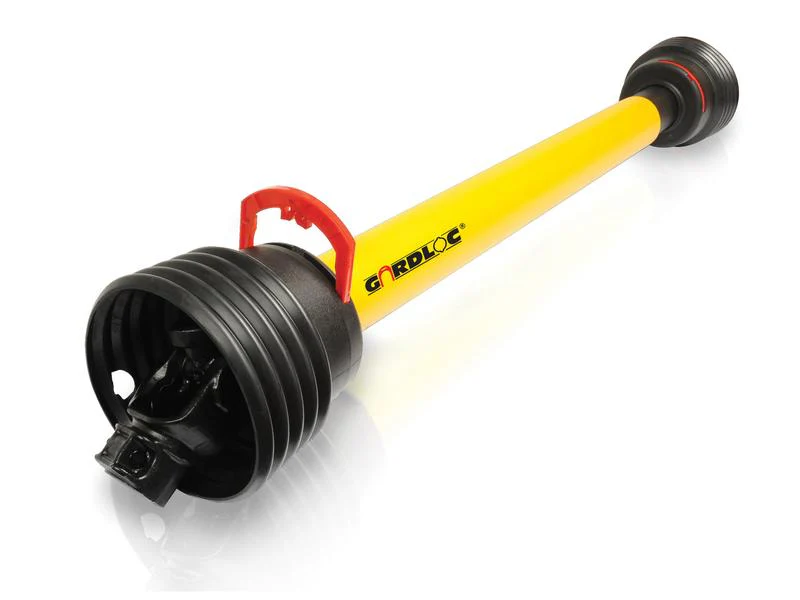

GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128714

Introducing the GARDLOC PTO Shaft, a reliable and high-performance component designed for optimal functionality in various agricultural applications. This shaft is engineered to meet the demands of the German Series AW10/W2100, ensuring compatibility and efficiency.

Key Features:

• Alternative Part Numbers: 39002, 164262
• Brand: GARDLOC
• Guard Type: Gardloc
• HP Rating: 16 HP @ 540 RPM, 24 HP @ 1000 RPM
• HP Rating Range: Up to 54 HP @ 540 RPM
• Kilowatt Power Rating: 12 kW @ 540 RPM, 24 kW @ 1000 RPM
• Length (Lz): 1010 mm
• PTO Series: AW10/W2100
• Torque: 335 - 1240 Nm
• Total Closed Length: 1196 mm
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Lemon
• Universal Joint Dimensions: 22 x 54.8 mm
• Replacement Guard: S.163811
• Tariff Code: 8483908990

This GARDLOC PTO Shaft is not only a perfect fit for your machinery but also ensures durability and high torque performance, making it an essential addition to your agricultural equipment. Whether you are replacing an old shaft or upgrading your system, the GARDLOC PTO Shaft is designed to deliver exceptional results.

For further compatibility, please note that this product is not associated with any specific OEM part number or particular make or model.

Product SKU: SP-128714
