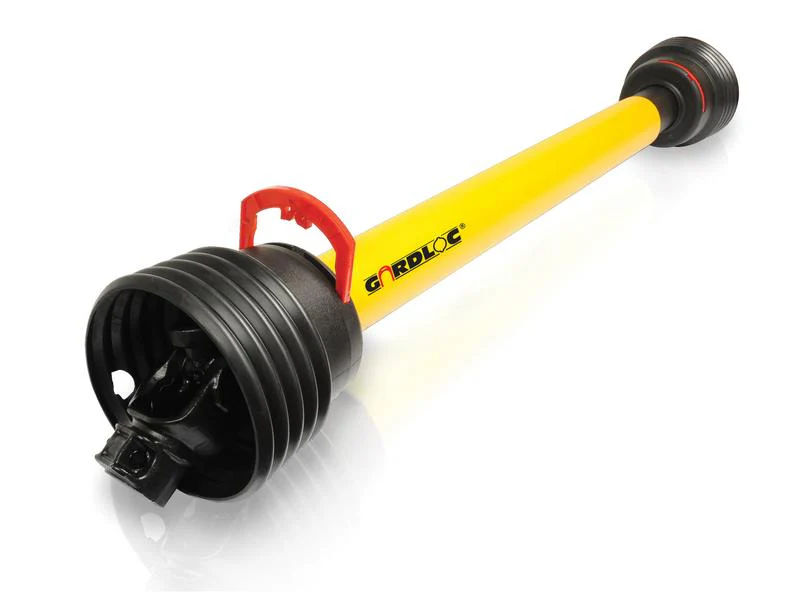

GARDLOC PTO Shaft - (Lz) Length: 1010mm

Upgrade your agricultural equipment with the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 1010mm and is equipped with a 1 3/8'' x 6 Spline Q.R. connection on both ends, ensuring compatibility with a variety of implements.

Key Specifications:

• Brand: GARDLOC
• Guard Type: Gardloc
• HP Rating @ 540RPM: 64 HP
• HP Rating @ 1000RPM: 83 HP
• HP Rating Range @ 540RPM: 55 to 119 HP
• Kilowatt Power Rating @ 540RPM: 47 kW
• Kilowatt Power Rating @ 1000RPM: 61 kW
• Torque: 335 - 1240 Nm (830 Nm nominal)
• Total Closed Length: 1246 mm
• Tube Profile: Triangle
• Universal Joint Dimensions: 30.2 x 92 mm
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Italian Series: AB6/A6
• PTO Series: AB6/A6
• Tube Reference: 12509/12512
• Replacement Guard: S.168312
• Tariff Code: 8483908990
• Related Products: 166692

This GARDLOC PTO Shaft is an excellent alternative to part numbers 118009 and 162400, making it a versatile choice for your machinery needs. Enhance your equipment's efficiency and reliability with this robust PTO shaft.

Product SKU: SP-128698

Supplier: Sparex
