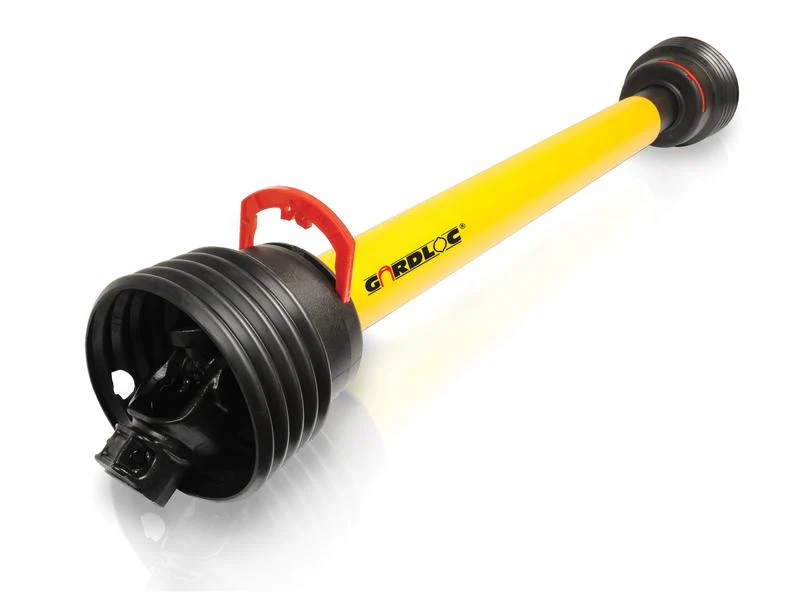

GARDLOC PTO Shaft - (Lz) Length: 1010mm

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 1010mm and is equipped with 1 3/8'' x 6 Spline Q.R. connections on both ends, making it a versatile choice for various applications.

Key Specifications:

• Alternative to: 164280
• Brand: GARDLOC
• Guard Type: Gardloc
• HP Rating @ 540RPM: 30 HP
• HP Rating @ 1000RPM: 50 HP
• HP Rating Range @ 540RPM: Up to 54 HP
• Kilowatt Power Rating @ 540RPM: 22 kW
• Kilowatt Power Rating @ 1000RPM: 37 kW
• PTO Series: AB3/A3
• Torque: 335 - 1240 Nm (390 Nm nominal)
• Total Closed Length: 1218 mm
• Tube Profile: Triangle
• Universal Joint Dimensions: 27 x 70 mm
• Tube Ref: 12507/12508
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Replacement Guard: S.168310
• Related Products: 166692
• Tariff Code: 8483908990

This GARDLOC PTO Shaft is an excellent choice for those seeking reliability and efficiency in their machinery. With its robust construction and high torque capabilities, it is suitable for a variety of agricultural and industrial applications. Upgrade your equipment with the GARDLOC PTO Shaft today!
