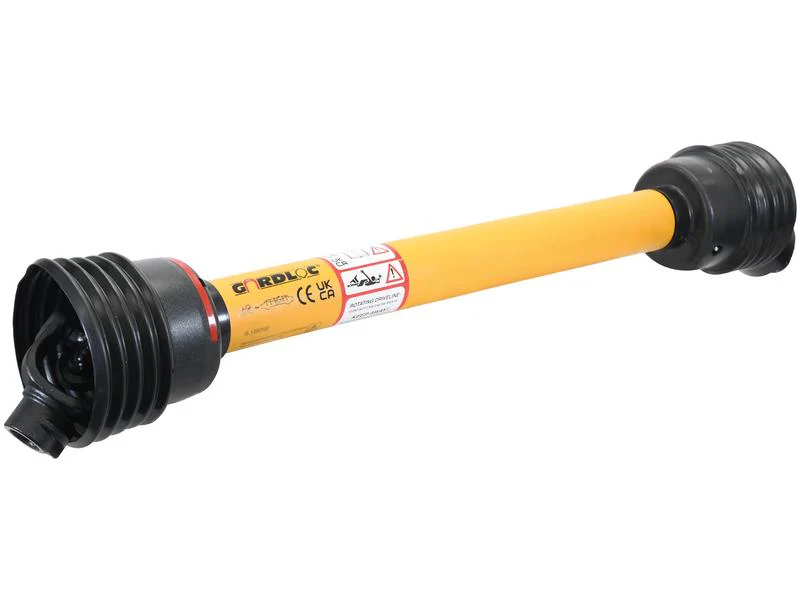

GARDLOC PTO Shaft - (Lz) Length: 1010mm

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 1010mm and connects with a 1 3/8'' x 6 Spline Q.R. at the tractor end and a 1 3/8'' x 6 Spline Overrunning Clutch (Clockwise) at the implement end.

Key Specifications:

• Brand: GARDLOC
• Guard Type: Gardloc
• HP Rating @ 540RPM: 64 HP
• HP Rating @ 1000RPM: 83 HP
• HP Rating Range @ 540RPM: 55 to 119 HP
• Kilowatt Power Rating @ 540RPM: 47 kW
• Kilowatt Power Rating @ 1000RPM: 61 kW
• Torque: 335 - 1240 Nm (830 Nm nominal)
• Total Closed Length: 1295 mm
• Tractor PTO Rotation: Clockwise
• Tube Profile: Triangle
• Universal Joint Dimensions: 30.2 x 92 mm
• Italian Series: AB6/A6
• PTO Series: AB6/A6
• Tube Ref: 12509/12512
• Replacement Guard: S.168312
• Tariff Code: 8483908990
• Related Products: 166692

This GARDLOC PTO Shaft is an excellent alternative to part number 162399 and is not associated with any specific OEM part number. It is designed to fit a variety of applications, making it a versatile choice for your machinery needs.

Upgrade your equipment with the reliable and efficient GARDLOC PTO Shaft today!
