GARDLOC PTO Shaft - (Lz) Length: 1010mm

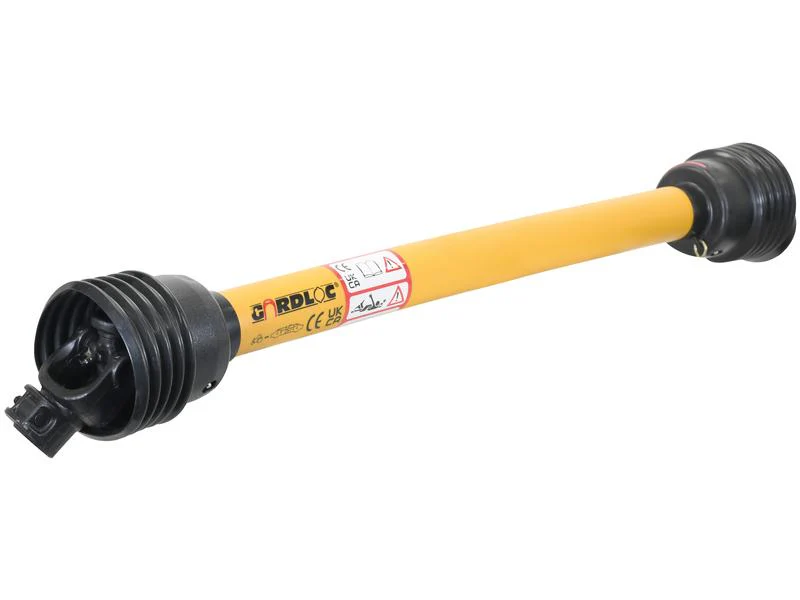

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 1010mm and connects with a 1 3/8'' x 6 Spline Quick Release (Q.R.) at the tractor end and a 1 3/8'' x 6 Spline Overrunning Clutch (Clockwise) at the implement end.

Key Specifications:

• Brand: GARDLOC
• Guard Type: Gardloc
• HP Rating @ 540RPM: 35 HP
• HP Rating @ 1000RPM: 53 HP
• HP Rating Range @ 540RPM: Up to 54 HP
• Kilowatt Power Rating @ 540RPM: 26 kW
• Kilowatt Power Rating @ 1000RPM: 39 kW
• Torque: 335 - 1240 Nm (460 Nm nominal)
• Total Closed Length: 1256 mm
• Tractor PTO Rotation: Clockwise
• Tube Profile: Triangle
• Universal Joint Dimensions: 27 x 74.5 mm
• Italian Series: AB4/A4
• PTO Series: AB4/A4
• Tube Reference: 12507/12508
• Replacement Guard: S.168310
• Tariff Code: 8483908990
• Related Products: 166692

This GARDLOC PTO Shaft is an excellent alternative to part number 162395 and is not associated with any specific OEM part number. It is designed to fit a variety of applications, making it a versatile choice for your machinery needs.

Upgrade your equipment with the reliable and efficient GARDLOC PTO Shaft today!
