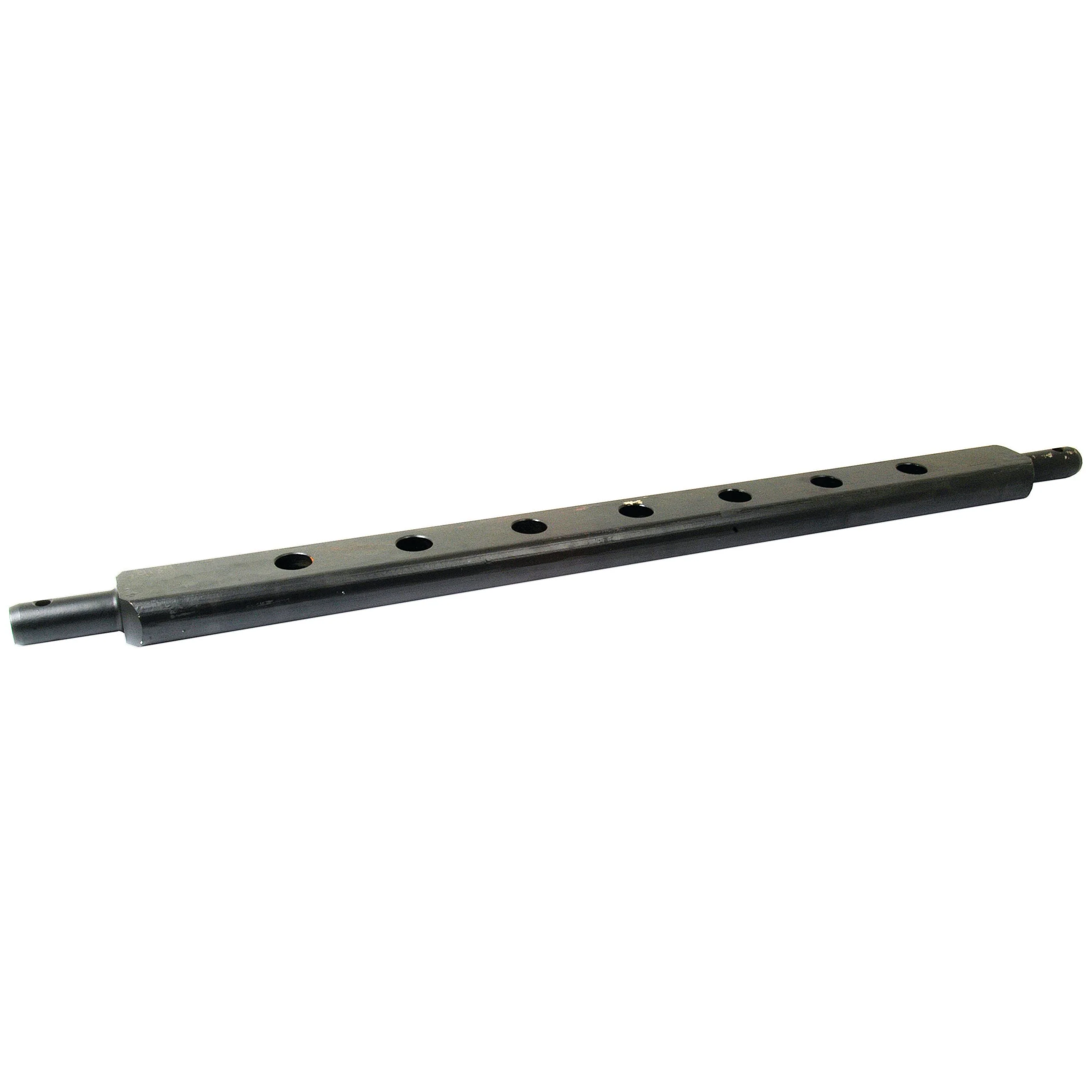

Flat Drawbar (Cat. 3) - 7 Holes, 1085mm | Sparex Part No. S.29139

Enhance your agricultural equipment with the Sparex Flat Drawbar, designed for durability and efficiency. This high-quality drawbar features a pin diameter of 36mm and a hole diameter of 32mm, ensuring a secure fit for your machinery. With a total length of 1085mm (42 23/32 inches) and a robust section size of 45x89mm, this drawbar is built to withstand heavy loads.

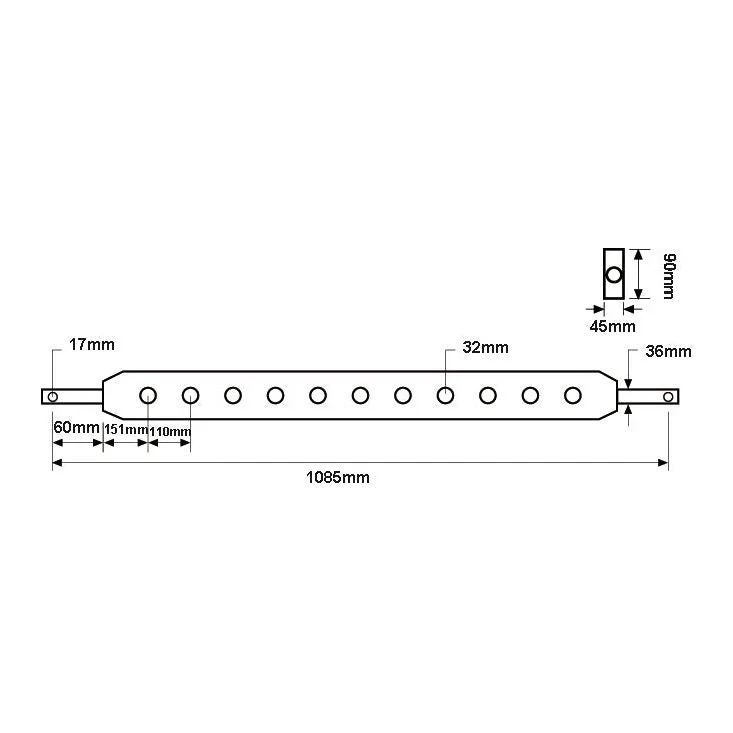

Product Specifications

• Brand: Sparex
• Category: 3
• D (ins): 2 3/8
• D (mm): 60
• E (ins): 5 61/64
• E (mm): 151
• Hole Centres (mm): 110
• Hole Centres (ins): 4 21/64
• Hole Ø (ins): 1 1/4
• Hole Ø (mm): 32
• Linch Pin Ø (mm): 16
• Number of Holes: 7
• Overall Length (ins): 42 23/32
• Overall Length (mm): 1085
• Pin Ø (ins): 1 27/64
• Pin Ø (mm): 36
• Related Products: 33014
• Section (mm): 45x89
• Section (ins): 1 49/64 x 3 1/2
• Tariff Code: 7319909000
• Tensile Strength (kgs/cm²): 6342
• Working Length (ins): 2 3/8
• Working Length (mm): 60

Compatibility Information

This product is not associated with any particular make or model, making it a versatile choice for various applications.

Manufacturer Information

This product is not linked to any specific OEM part number, ensuring broad compatibility across different machinery.
