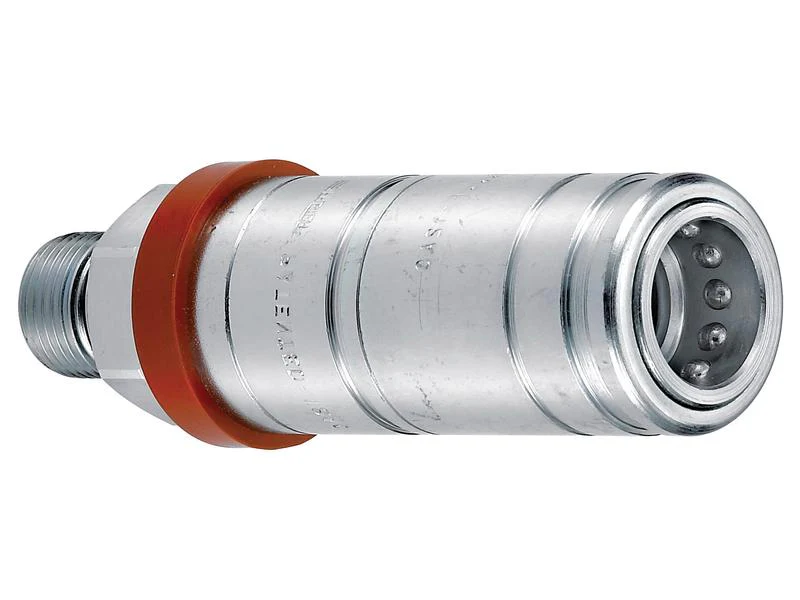

Faster Quick Release Hydraulic Coupling - Female 1/2'' Body x M22 x 1.50 Metric Male Thread

Introducing the Faster Quick Release Hydraulic Coupling, designed for high-performance applications. This coupling features a 1/2 inch body size and a M22 x 1.50 metric male thread, making it an ideal choice for various hydraulic systems.

Product Specifications

• Thread Size: M22 x 1.50 (mm)
• Alternative Part Number: 3049
• Length: 109.7 mm
• Body Size: 1/2 inch
• Brand: Faster
• Coupler Type: High Flow Push/Pull Coupling with Poppet Valve
• Outer Diameter: 42 mm
• Flow Rate: 70 LPM
• ISO Rating: ISO A
• Material: Carbon Steel
• Maximum Working Pressure: 250 bar
• Reference: 4SRHF081/2215 F
• Related Products: 42081, 42142
• Series: BG3
• Tariff Code: 8481201090
• Tube Series: 15L

Compatibility

This hydraulic coupling is compatible with a range of machinery, including:

• Case IH / International Harvester: Models such as FARMALL 105C, MAXXUM 100, and more.
• Ford / New Holland: Various models including 230A, 7610, and T4 series.
• John Deere: Compatible with models like 6115M, 7200, and 7400.
• Massey Ferguson: Fits models such as 240, 265, and 6140.
• McCormick: Suitable for MC series and MTX series models.

Upgrade your hydraulic system with the Faster Quick Release Hydraulic Coupling for reliable performance and durability. Order now to ensure optimal functionality in your machinery!
