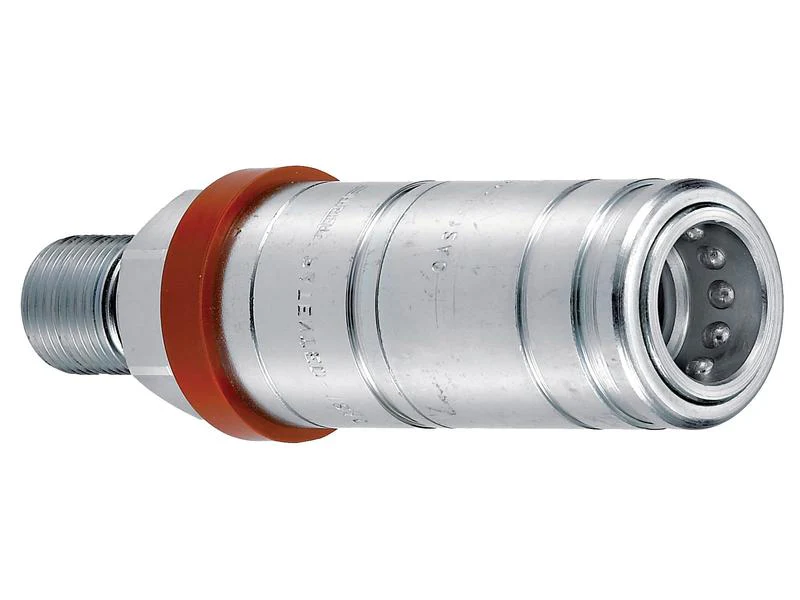

Faster Quick Release Hydraulic Coupling - Female 1/2'' Body x 3/8'' BSP Male Bulkhead

Introducing the Faster Quick Release Hydraulic Coupling, designed for high performance and reliability in hydraulic systems. This coupling features a 1/2'' body size and a 3/8'' BSP male bulkhead thread, making it an ideal choice for various applications.

Key Features:

• Coupler Type: High Flow Push/Pull Coupling with Poppet Valve
• Flow Rate: 70 LPM
• Maximum Working Pressure: 250 bar
• Material: Durable Carbon Steel
• ISO Rating: ISO A
• Length: 108.2 mm
• Outer Diameter: 42 mm
• Reference: 3CFHF0874/38GF
• Series: BG3
• Tariff Code: 8481201090

Compatibility:

This coupling is a direct replacement for part numbers 113105 and 167193. It is compatible with a range of machinery including:

• AGCO: ST60A, Challenger MT297B
• Deutz-Fahr: AGROXTRA 4.17
• Kubota: M6040, M7040, M8540, M9540
• Massey Ferguson: 1526, 1560, 1560E, 1635, 1648, 1652, 1655, 1660, 1735, 1736, 1742, 1749, 2750E, 2760E, 2850E, 2860E, 2860M, 4607M, 4608, 4609M

Upgrade your hydraulic system with the Faster Quick Release Hydraulic Coupling for enhanced efficiency and performance. Order now and experience the quality and reliability that Faster is known for!
